T
est Run
27
BP8000
4.
Test with load
After
fi
nishing the above adjustments test run the lift with load. Run the lift
in the low position sever
al times. Make sure the lift can r
aise and lower at the
same time. Make sure the safety device can lock and release at the same time.
Run the lift to the top completely
.

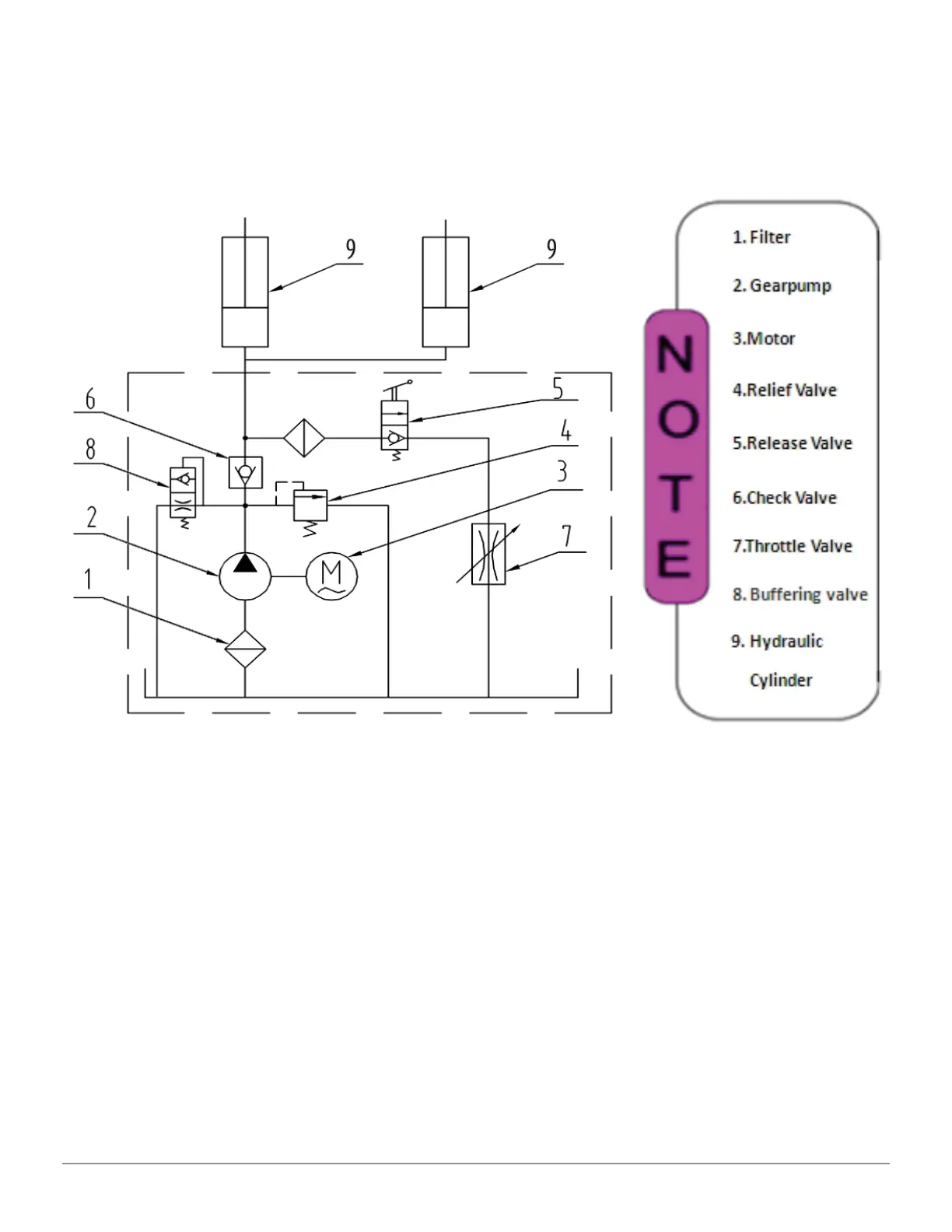

Fig. 31 Hydraulic System
26
28
