Atlona AT-UHD-EX-100CEA-KIT User Manual

10
OUT
-
+
LAN
HDMI IN
DC 48V
HDBaseT OUT
OPTICAL
FW
LINK
POWER
AT-UHD-EX-100CEA-TX
RS-232
RX
TX
RX
TX
IR
FW
LINK
POWER
AT-UHD-EX-100CEA-RX
RS-232
RX
TX
RX
P
TX
OPTICAL
LAN
HDMI OUT
HDBaseT IN
IN
IR
Control System
AT-UHD-H2H-88M HDMI Matrix Switcher
HDMI IN
HDMI OUT
FW
1
2 3
4
1 2 3 4
DC 12V
LAN
5
6 7
8
5 6 7 8
RS-232
IR IN
RX TX
S
Set top box
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
GND
SIG
+12V
GND
SIG
+12V
GND
SIG
+12V
GND
SIG
+12V
1 2 3 4
RELAYS
WIFI 2
ZIGBEE 12V DC
IR OUT
IDFACTORY
RESTORE
SERIAL 1
SERIAL 2
HDMI
COMPONENT
VIDEO OUT
ETHERNET
CONTACTS
AUDIO OUT
AUDIO IN
WIFI 1
eSATA
USB
DIGITAL
COAX OUT
1
2
3
4
5
6
L
R
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
SPEAKERSPEAKER
GAIN
GAIN
GAIN GAIN
GAIN GAIN
SPEAKER SPEAKER SPEAKER SPEAKER
+
-
+
-
+
-
+
-
+
-
+
-

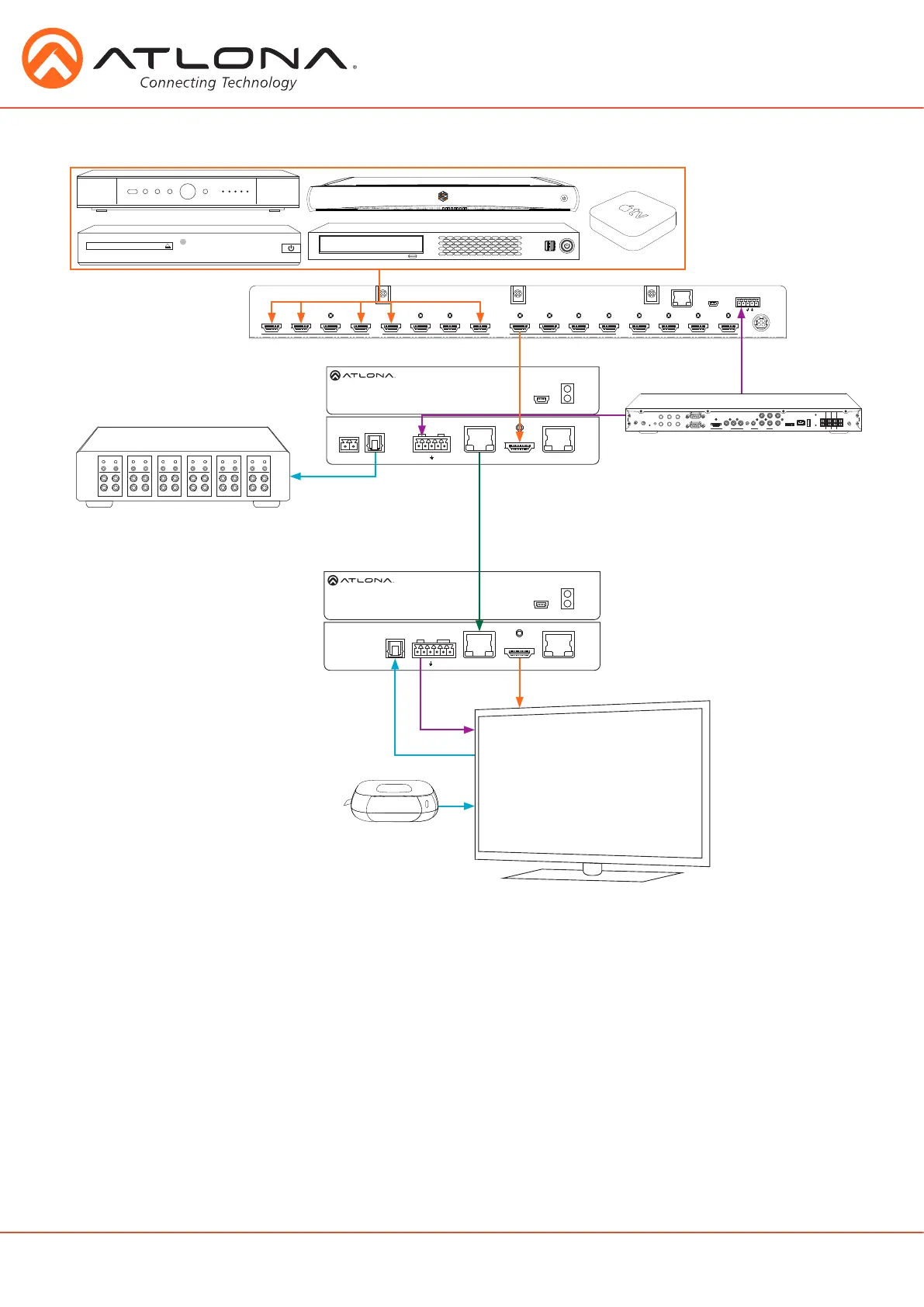

Connection Diagram (HDMI Matrix)
e
3
M
R
d
i
a
3
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515

Atlona AT-UHD-EX-100CEA-KIT Specifications

General

HDCP	Yes
Type	AV transmitter & receiver
Color depth	12 bit
Audio system	Multichannel
Certification	CE, FCC, cULus, RCM, CCC
Maximum resolution	4096 x 2160 pixels
Audio output channels	7.1 channels
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Maximum transfer distance	100 m
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1376 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048
RJ-45 input ports	2
RJ-45 output ports	1
USB connector type	Mini-USB B
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 90 %
Input current	0.83 A
AC input voltage	100 - 240 V
Operating voltage	48 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20.61 W
Sustainability certificates	RoHS

Weight and Dimensions

Receiver weight	410 g
Receiver dimensions (WxDxH)	146 x 89 x 26 mm
