SPLASH SCREEN –!TOP
BAR & BOTTOM ROW
MENUS

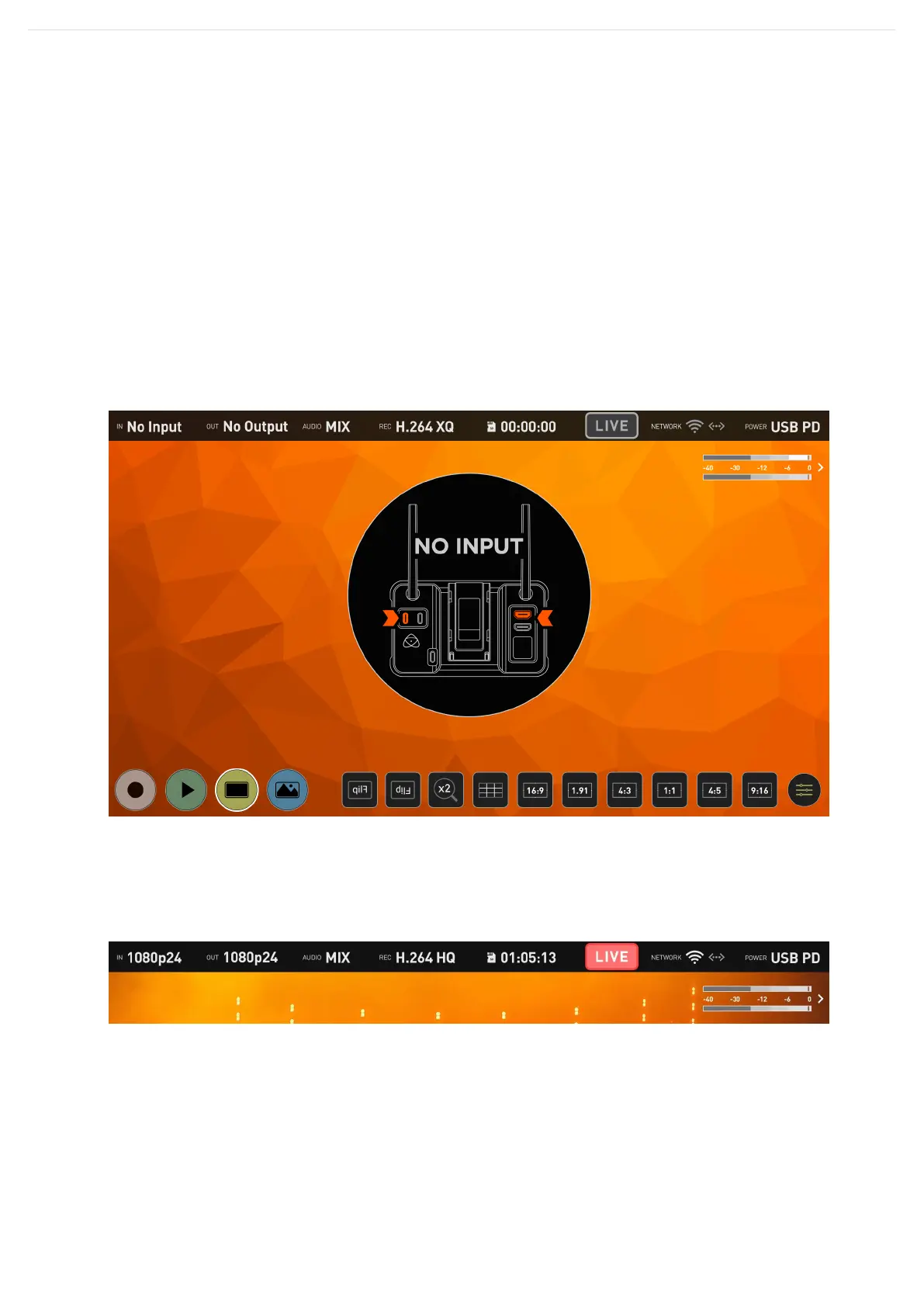

After turning on the ZATO CONNECT for the first time, you'll be greeted by a NO INPUT
message, sitting on top of a bright orange backdrop. This signals that there's currently no
Input Source connected to the ZATO CONNECT.
Top Menu Bar:
You will also notice the Top Menu Bar, which summarizes the most significant parameters
when it comes to using the ZATO CONNECT.
IN: Highlights the input signal specification (resolution and frame rate) or says No Input when
nothing is plugged into the ZATO CONNECT.
OUT: Details the ZATO CONNECT's HDMI Output signal specification.
Audio: Shows the Audio sources selected in the Mixer.
Rec: Specifies which compression variant for recording H.264 is selected.
