AtriCure Frigitronics CCS-200 - Page 2

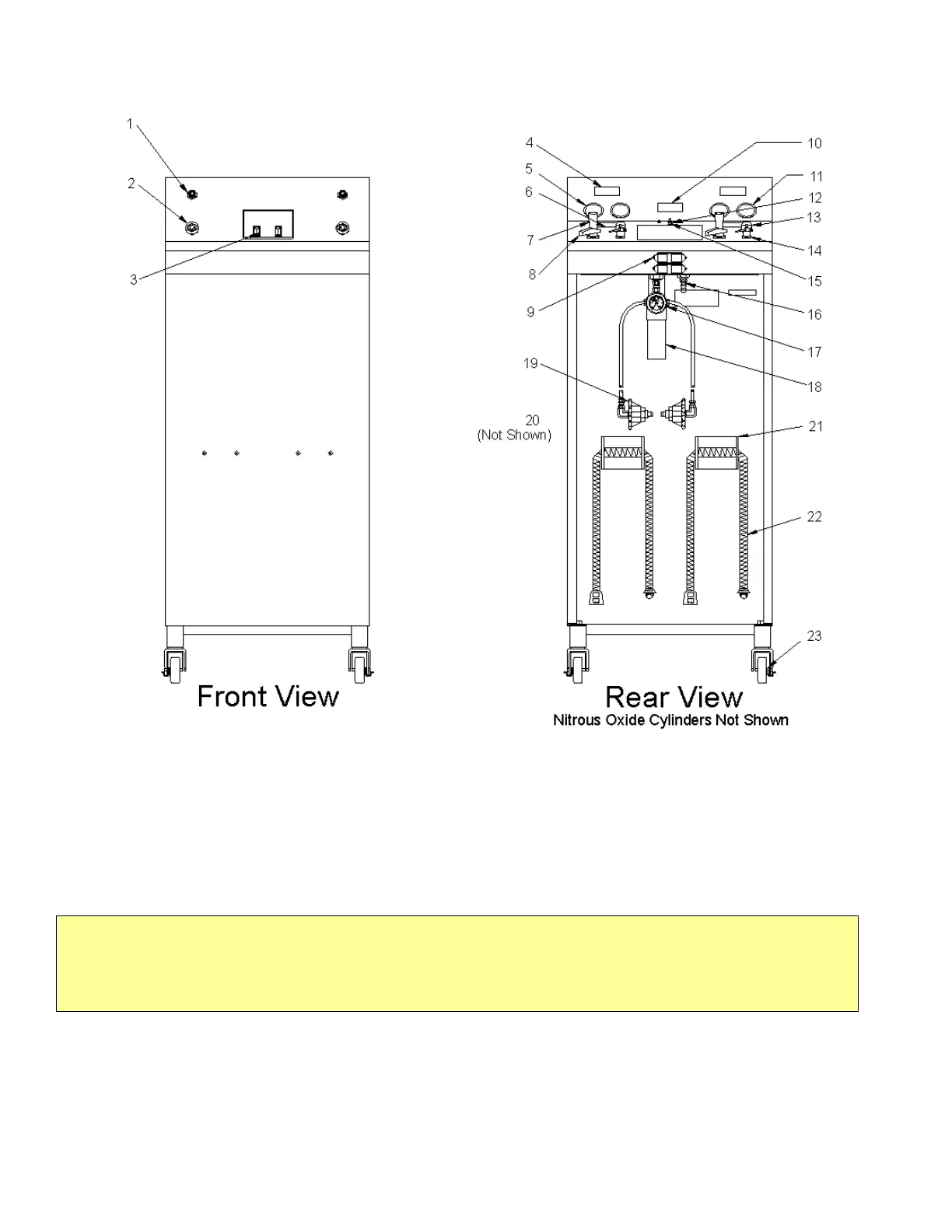

The ACC2 Cardiac Cryosurgical System
1. Probe Socket - Exhaust (2)
9. Battery Compartment (2)
17. Filter Assembly - Pressure Gauge
2. Probe Socket - Supply (2)
10. Digital Tissue Temperature Indicator
18. Filter Assembly - Canister
3. Digital TTI Socket (2)
11. Exhaust Pressure Gauge (2)
19. Cylinder Valve (2)
4. Digital Probe Temperature Meter (2)
12. Digital Temperature Indicator Switch
20. Cylinder Yoke Assembly (2)
5. Line Pressure Gauge (2)
13. Maximum Freeze Control Valve (2)
21. Cylinder Bracket (2)
6. Digital Timer (2)
14. ON/OFF Control Valve (2)
22. Cylinder Strap (2)
7. Temperature Control Valve (2)
15. Main Meter Power Switch
23. Mobile Carrier - Casters (4)
8. Freeze/Defrost Control Valve (2)
16. Exhaust Nipple
Specifications
ACC2 System
47” High (119.4cm), 19” Wide (48.25cm)
24” Deep (70cm)
Weight: 74lbs (35.8kg) without cylinders
Two 20lb. Nitrous Oxide Cylinders required
Digital Meters use Four 9Volt Alkaline Batteries
Note: To convert psi to kg/sq cm, multiply by 0.07.
CAUTION: U.S. Federal law restricts this device to sale by or on the order of a physician.
