Audi A4 Avant 2002 - Connector Assignments

91-25

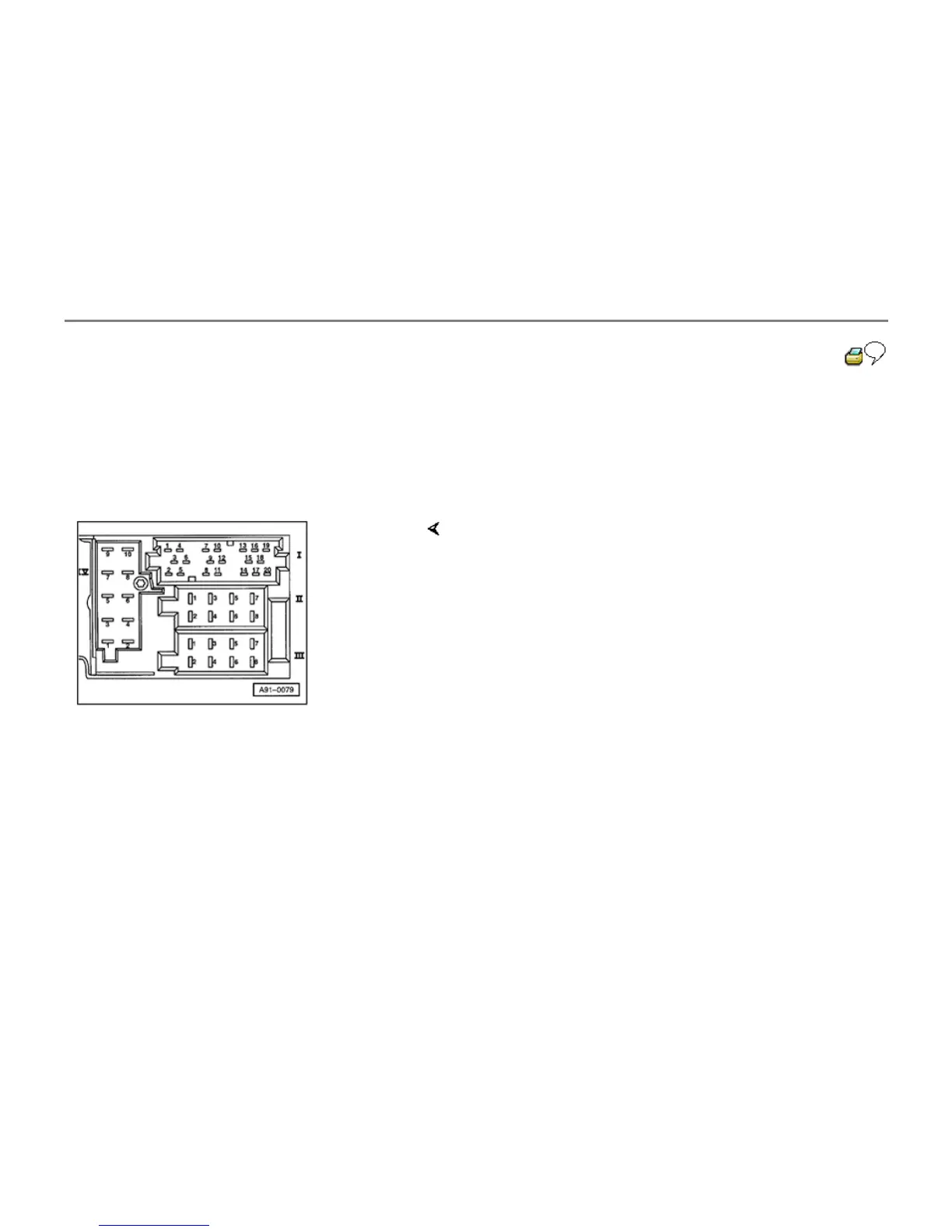

"Concert II" and "Symphony II", Multi-pin
connector terminal assignments
Note:
Terminals which are not listed are
vacant/unassigned.
Multi-pin connector I, 20-pin - black
1 - Line output - left rear
2 - Line output - right rear
3 - Line output, Ground (GND)
4 - Line output - left front
5 - Line output - right front
6 - Switched positive for power amplifier
7 - CAN Bus - High (Infotainment)
10 - Ground (GND) (CD changer)
12 - CAN Bus - Low (Infotainment)
13 - CD bus data input (CD changer)
14 - CD bus data output (CD changer)
15 - CD clock (CD changer)
16 - Battery positive B+ (CD changer)
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication
