91-43

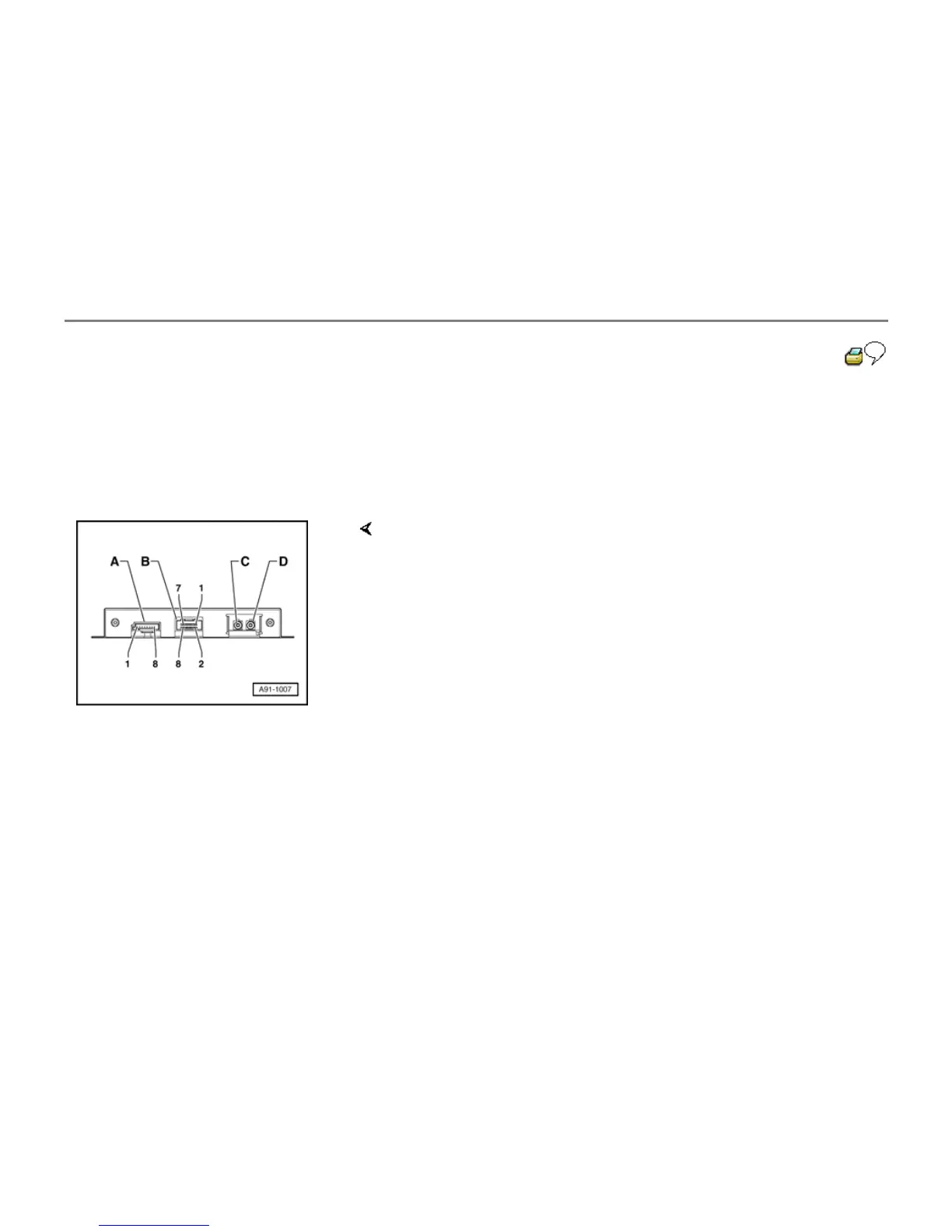

Multi-pin connector assignments on Satellite
Radio -R146-
Note:
Terminals which are not listed are
vacant/unassigned.
A - Multi-pin connector, 8-pin
B - Multi-pin connector, 8-pin
C - Connection - Satellite Tuner Antenna (brown)
1 - CAN-Bus High (Infotainment)
2 - CAN-Bus Low (Infotainment)
3 - CD-IN L (CD Changer Unit)
4 - CD-IN R (CD Changer Unit)
5 - NF - Ground (GND) (Radio)
6 - NF - left (Radio)
7 - NF - right (Radio)
8 - CD Ground (GND) (CD Changer Unit)
1 - Terminal 30 (B+)
2 - Terminal 31 (GND)
