9 - Circlip
10 - Piston pin
 If difficult to move, heat piston to approx. 60 °C
 Remove and install with VW222a
11 - Piston rings
 Offset gaps by 120 °
 Remove and install with piston ring pliers
 "TOP" must face toward piston crown
 Checking ring gap Checking piston ring gap
 Checking ring to groove clearance Checking ring to groove clearance
12 - Piston
 Checking Checking piston
 Mark installed position and cylinder number
 Arrow on piston crown must point to pulley end
 Install using piston ring clamp
13 - Connecting rod bolt
 Replace

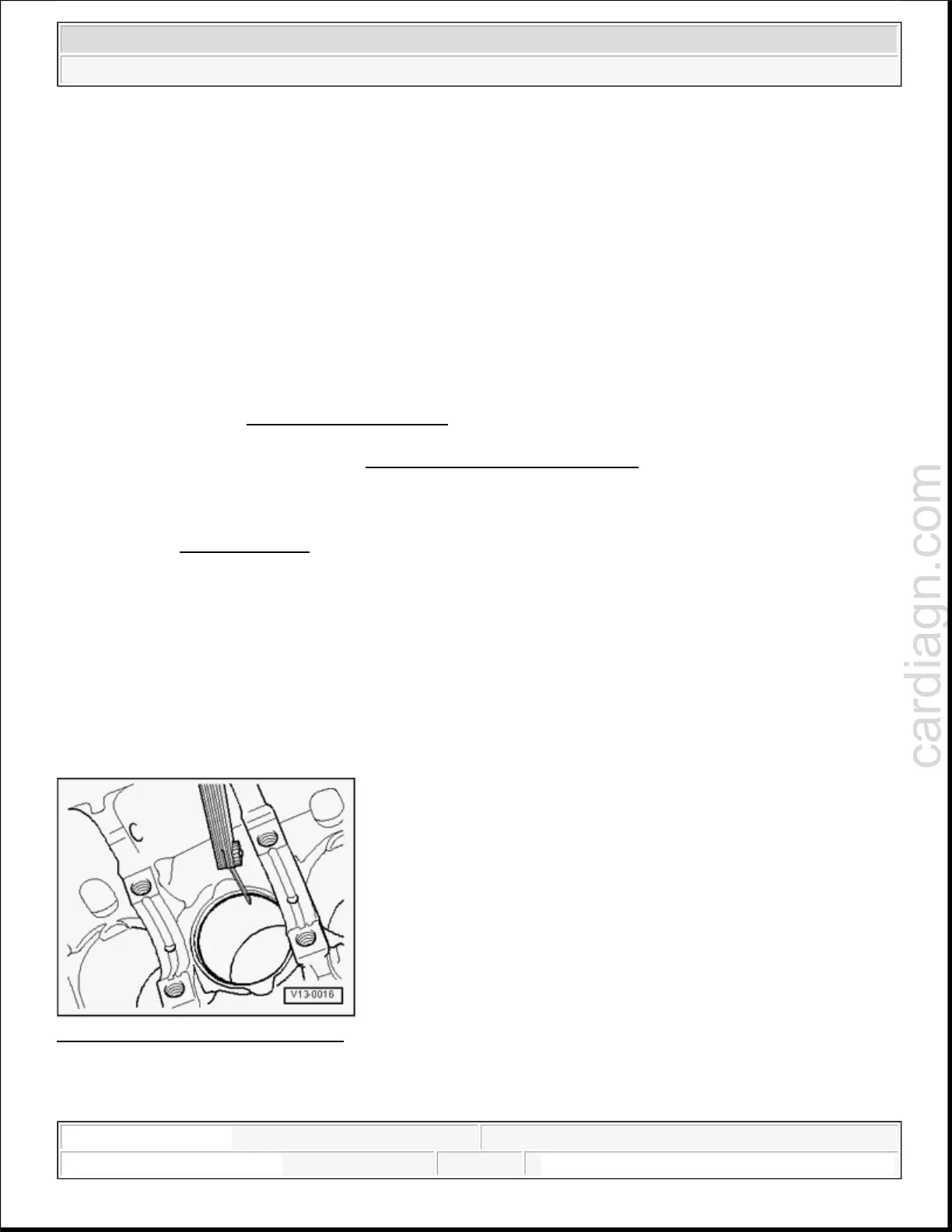

Checking piston ring gap
Fig. 138: Checking Piston Ring Gap
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Push rin
g
squarel
y
from above down to lower c
y
linder bore, approx. 15 mm from c
y
linder ed
g
e. To do
