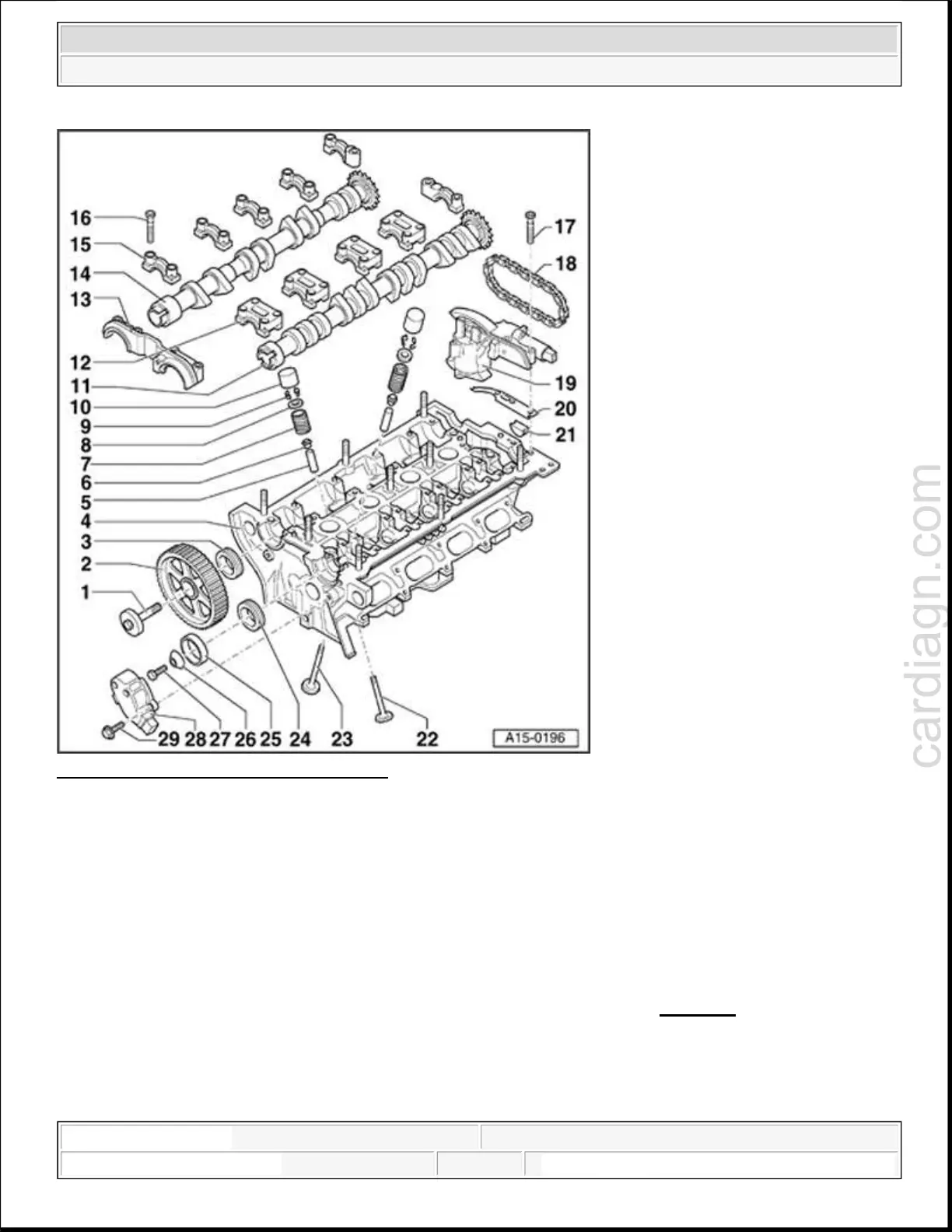

Fig. 173: Valve Gear, Servicing Overview
Courtesy of VOLKSWAGEN UNITED STATES, INC.
1 - 65 Nm
 Use counterhold 3036 to loosen and tighten
2 - Camshaft sprocket
 For exhaust camshaft
 Note installed position: Narrow web of camshaft sprocket must face toward front and marking for TDC
No. 1 cylinder must be visible from front Install camshaft sprocket. under Installing
3 - Oil seal
 For exhaust camshaft
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
