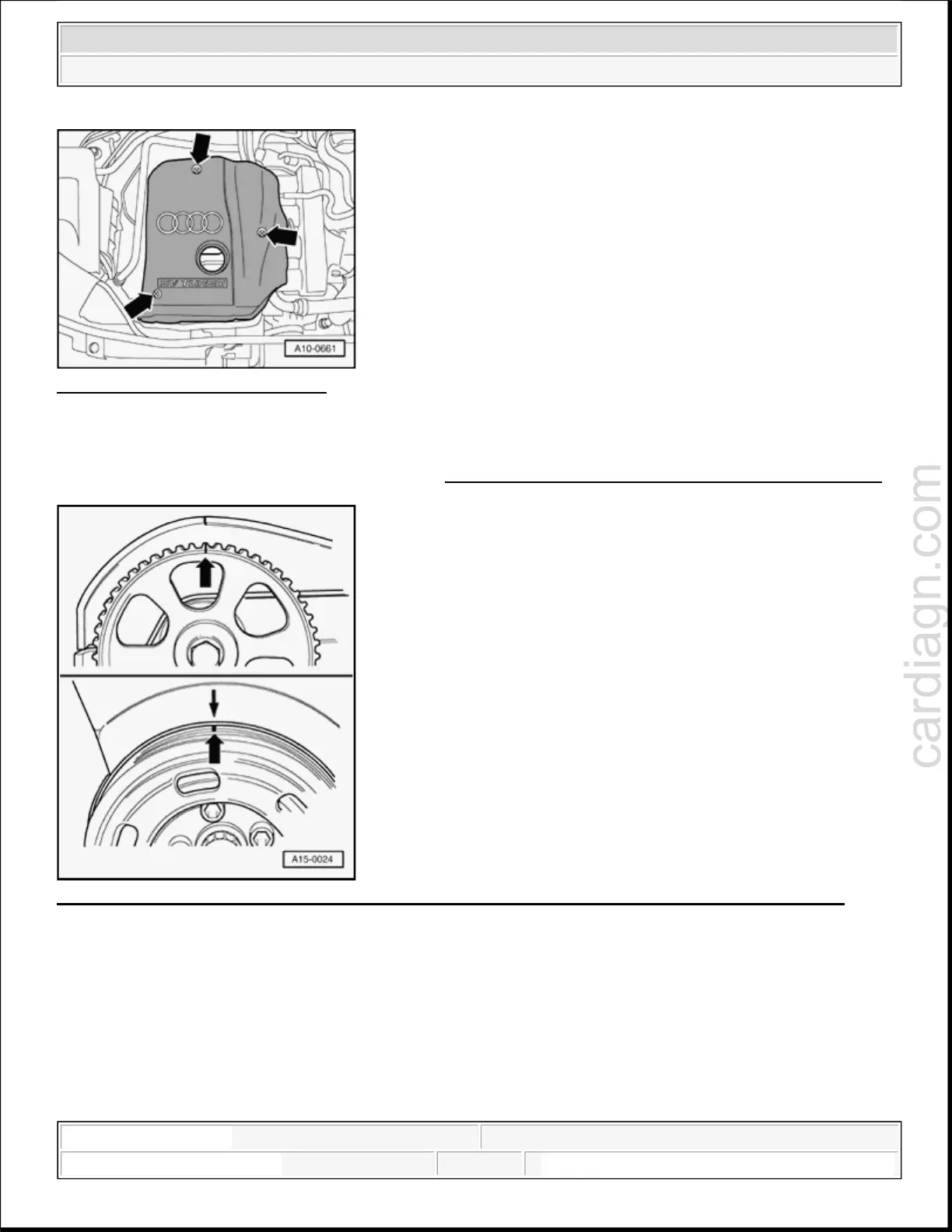

Fig. 178: Removing Engine Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove engine cover - arrows -.
Remove top section of toothed belt guard --> Toothed drive belt, removing, installing and tensioning.
Fig. 179: Identifying Marking On Camshaft Gear Aligned With Marking On Cylinder Head Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Rotate crankshaft at central bolt of crankshaft toothed belt sprocket in direction of engine rotation to TDC
No. 1 cylinder - arrow -.
Loosen camshaft sprocket (counterhold with 3036 ).
Pull off camshaft sprocket.
