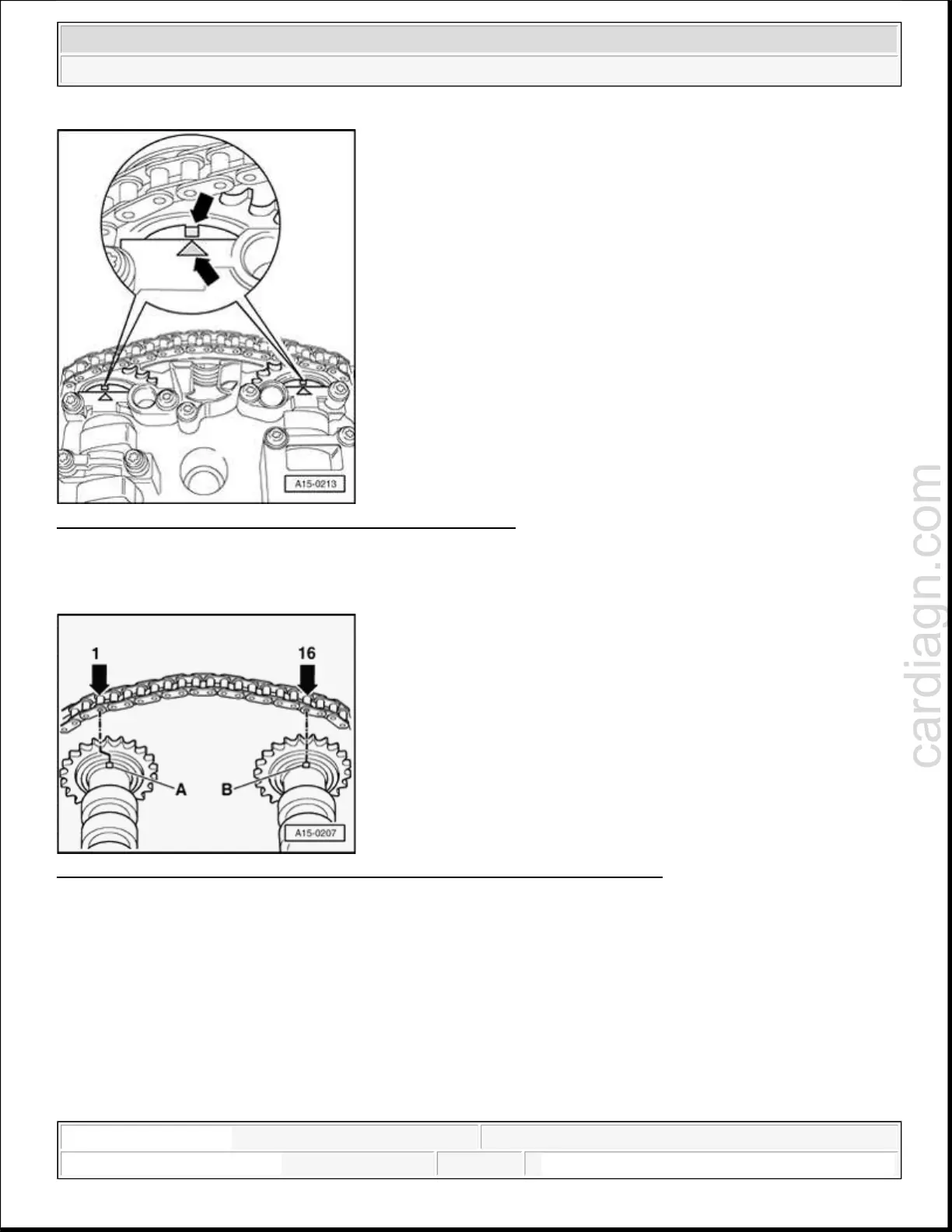

Fig. 207: Checking Position Of Camshafts To Each Other
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Two markings on camshafts must be in line with two - arrows - on bearing caps - arrows -.
Fig. 208: First And Sixteenth Drive Chain Rollers Installed On Chain Gears
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Distance between two - arrows - on bearing caps or between colored markings is 16 rollers on drive
chain.
Notch on exhaust camshaft is offset slightly toward inside in relation to chain roller - 1 -
Remove chain tensioner holder 3366.
