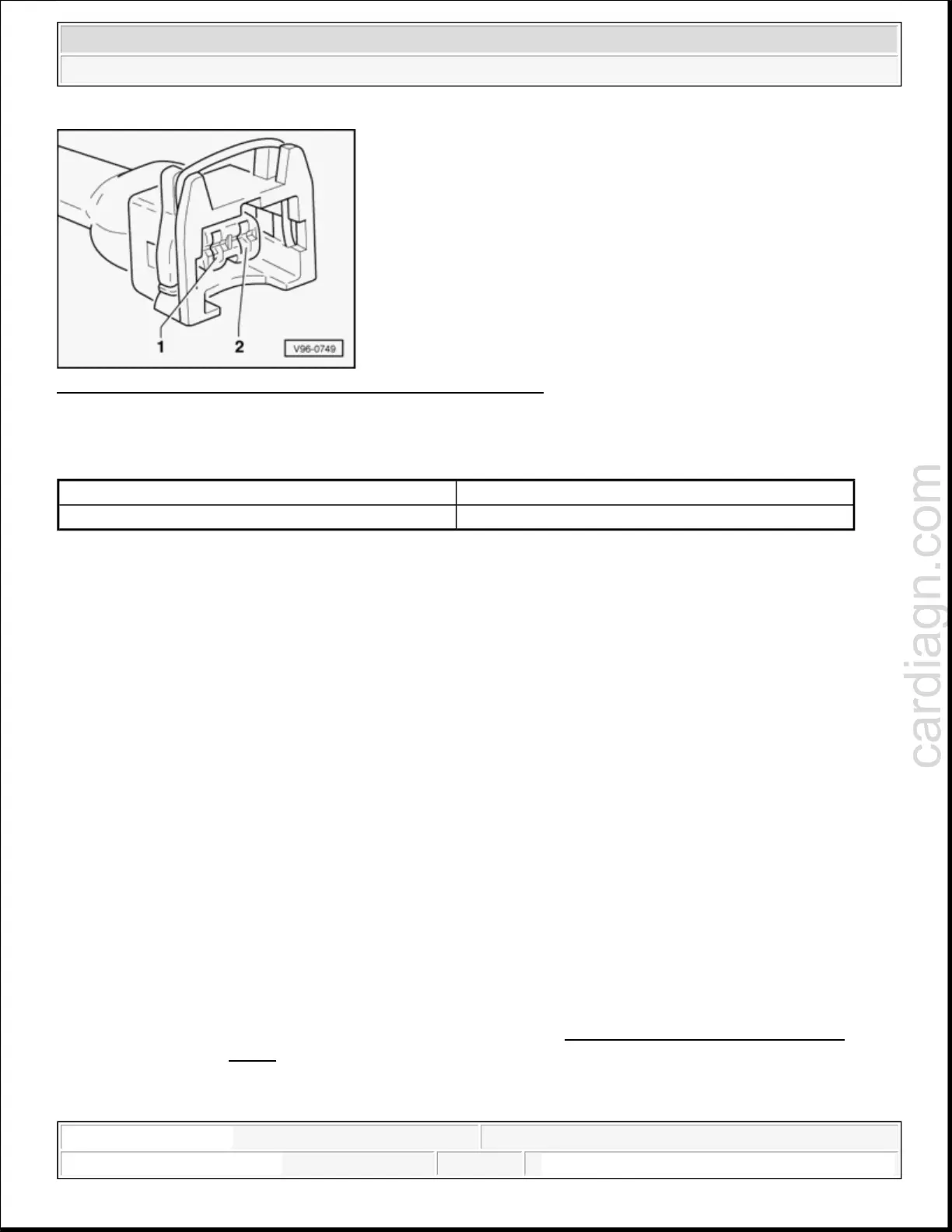

Fig. 233: Identifying 2-Pin Electrical Connector & Terminals
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Check for open circuit and short to Ground/positive in following wiring connection:
Eliminate any short circuits to Ground or open circuits.
If wiring is OK:
Replace engine control module.
If no malfunction is found:
Replace mechanical camshaft adjuster.
17 - ENGINE - LUBRICATION
LUBRICATION SYSTEM COMPONENTS, REMOVING AND INSTALLING
Lubrication system components, removing and installing
Viscosit
rades and oil specifications:
Connector contact Test box VAG 1598/31 socket
2 115
NOTE:
If large quantities of metal shavings or particles are found in the engine oil
when repairing an engine, clean the oil passages carefully, and replace the
oil cooler in order to prevent further damage occurring later.
The oil level must not be above the max. mark - danger of damage to the
catalyst.
Oil spray jet and pressure relief valve Oil spray jet and pressure relief
valve
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
