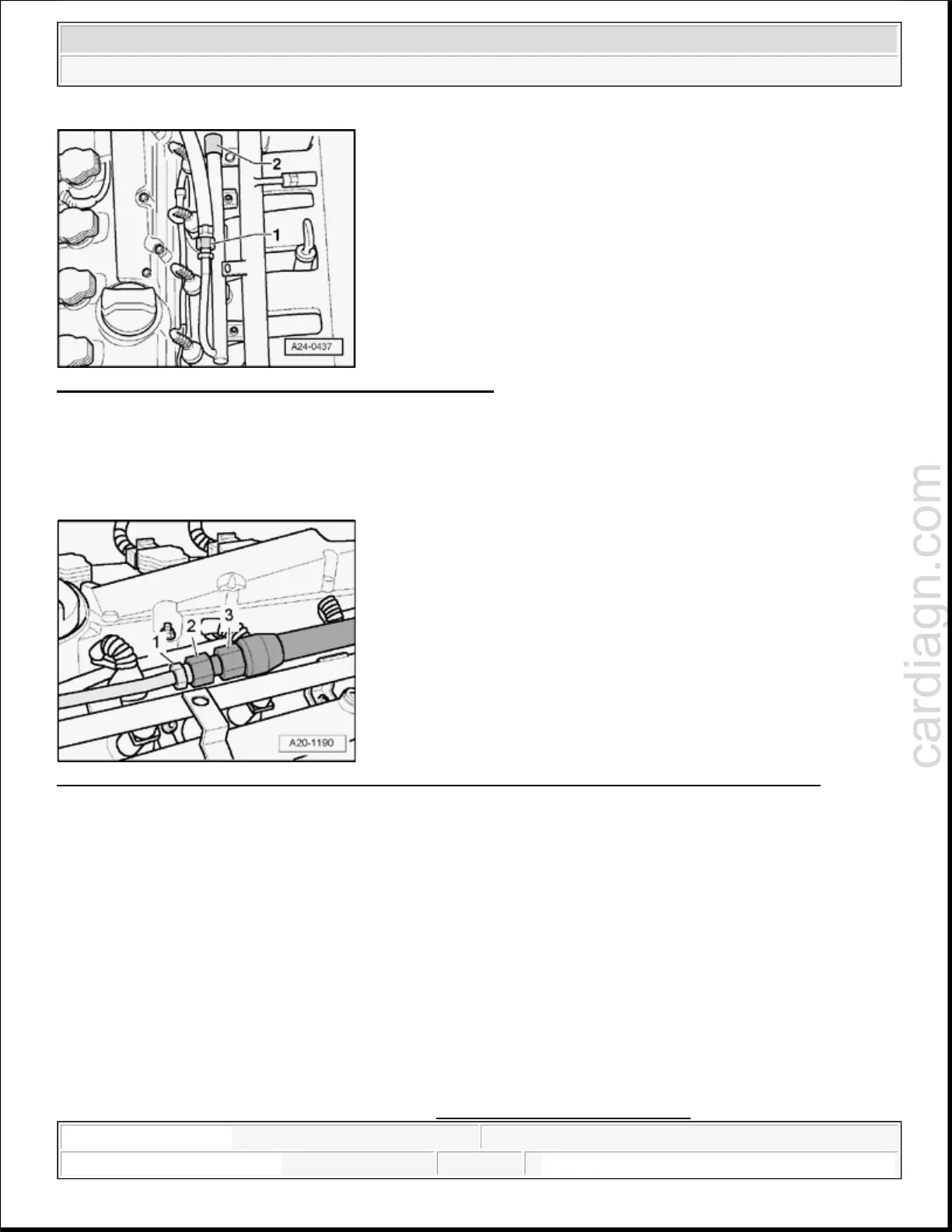

Fig. 54: Disconnecting Fuel Supply Line And Set Aside
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Tighten union nut of fuel supply line - 1 - to 22 Nm.
Vehicles as of 07.03
Fig. 55: Counterholding Using An Open
-End Wrench At Each Hex Head & Unscrew Union Nut
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Secure fuel hose to connection on fuel rail pipe. To do so, counterhold using an open-end wrench at each
hex head - 1 - and - 3 - and tighten union nut - 2 - to 22 Nm.
All
Electrical connections and routing:
--> Electrical Wiring Diagrams, Troubleshooting and Component Locations
See Caution for connecting Telematics battery --> Engine, removing and installing
CAUTION: Boost-starting using a battery charger may damage vehicle control
modules.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
