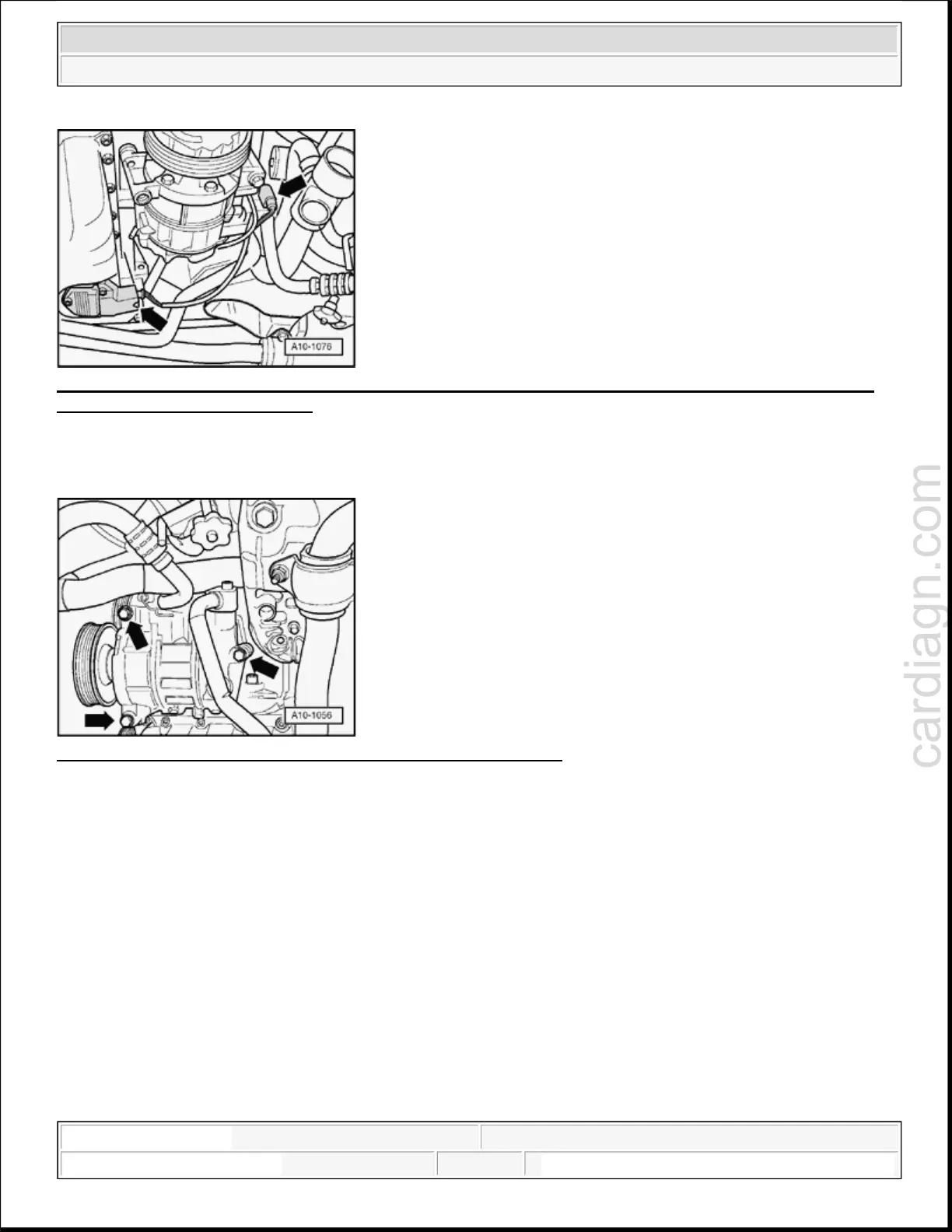

Fig. 75: Disconnecting Compressor Clutch Connector From Air Conditioning Compressor & Oil Level
Gauge Connector From Oil Pan
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Disconnect air conditioning compressor connector - right arrow -.
Fig. 76: Unbolting Air Conditioning Compressor From Bracket
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Unbolt air conditioning compressor from bracket.
Hang air conditioning compressor with lines still connected at left of vehicle.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
