Bring engine to TDC cylinder 1 by turning crankshaft in direction of engine rotation, using center
camshaft drive sprocket bolt on crankshaft. Mark on camshaft sprocket and mark on crankshaft must be at
TDC cylinder 1 - arrows -.

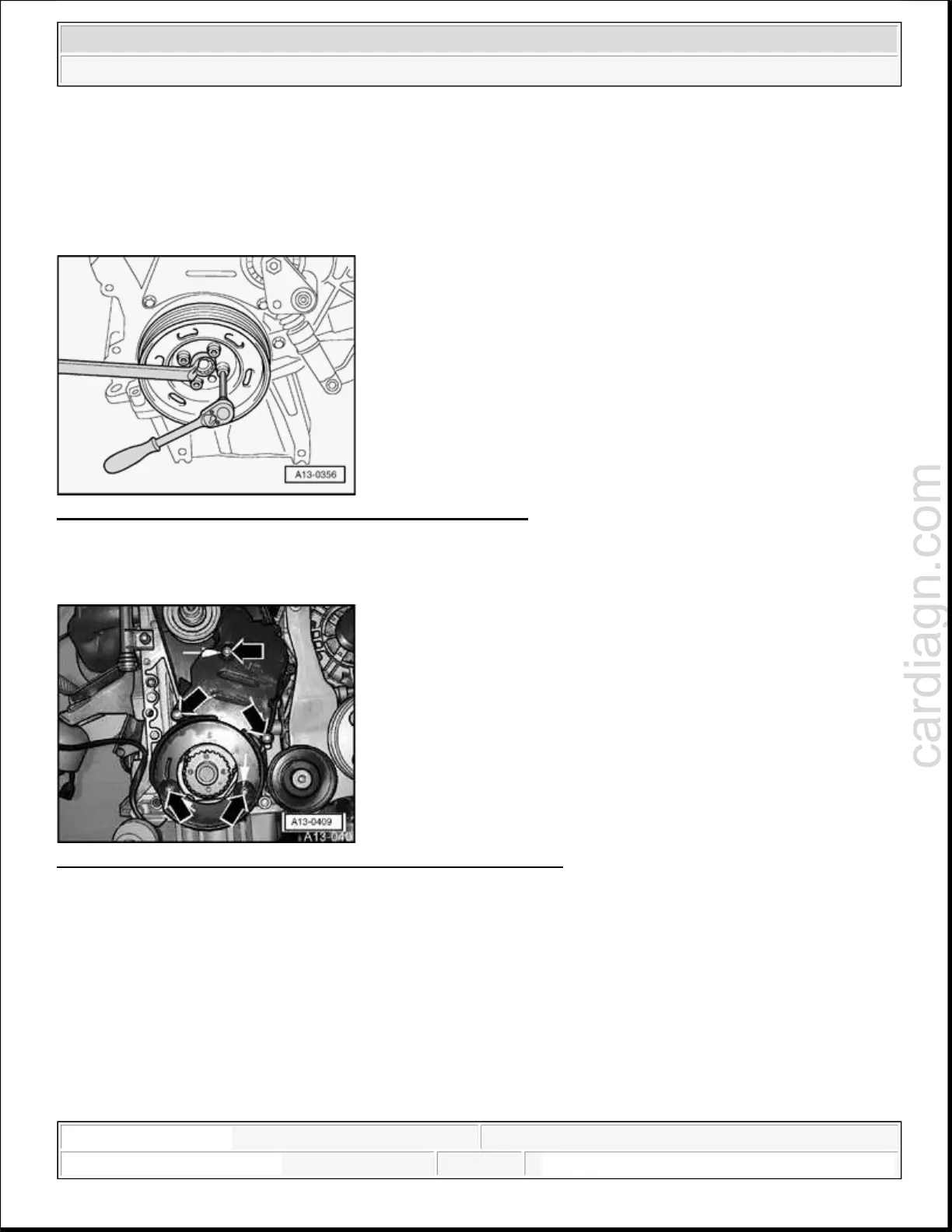

Fig. 87: Removing/Installing Vibration Damper/Belt Pulley
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Unbolt vibration damper.
Fig. 88: Removing Center And Lower Part Of Drive Belt Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove center and lower part of drive belt cover.
CAUTION: The drive belt tensioner is oil-damped and can only be compressed slowly
and with evenly applied force.
When compressing the tensioner, excessive force can damage the
tensioning pulley.
