Engine in vehicle.
Lock carrier in service position --> Lock carrier, moving to service position.
Remove toothed belt --> Toothed drive belt, removing, installing and tensioning.

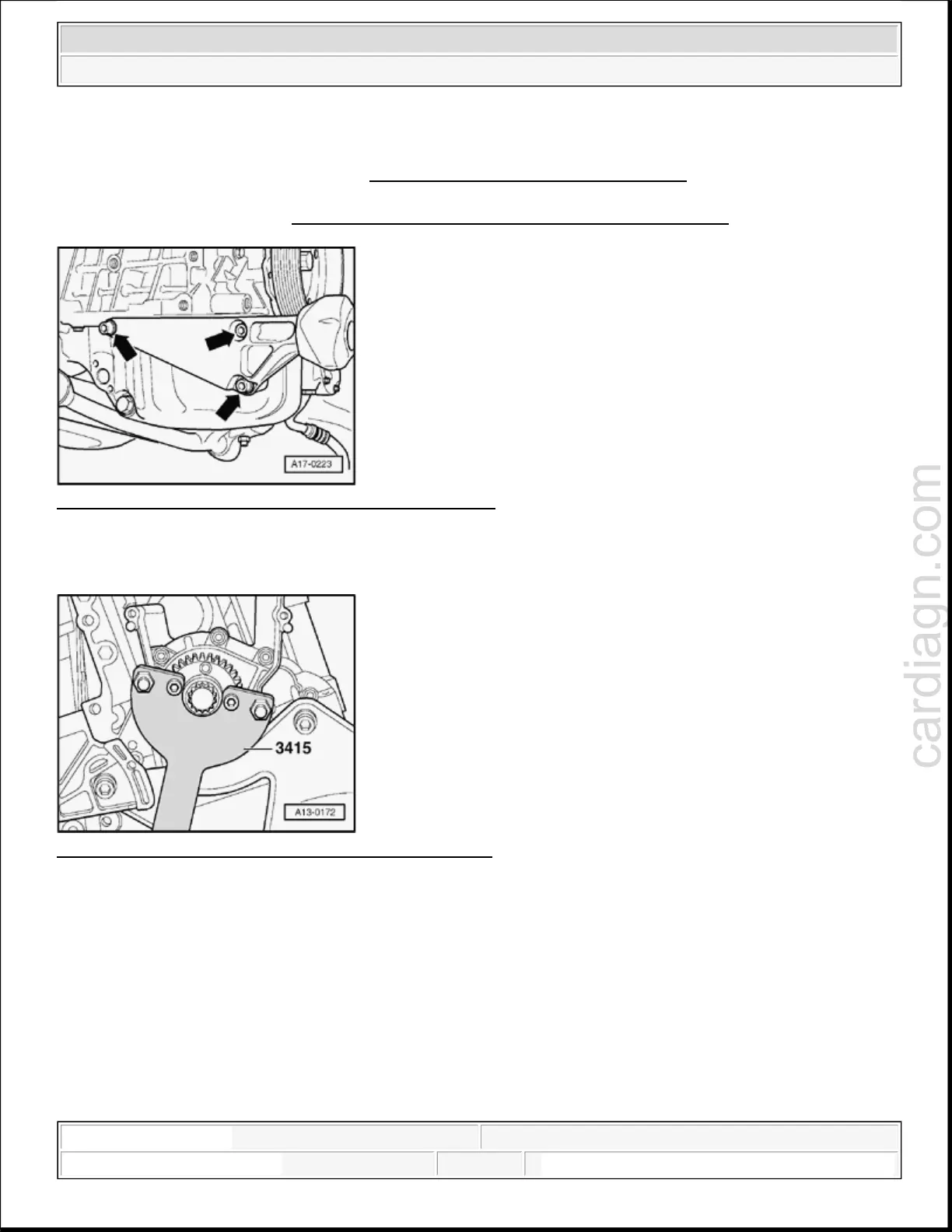

Fig. 111: Unbolting Stop For Torque Reaction Support
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Unbolt stop for torque reaction support - arrows -.
Fig. 112: Removing Crankshaft Toothed Belt Sprocket
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove crankshaft toothed belt sprocket. To do so, hold sprocket in position with counterhold 3415.
