2 Subframe, Stabilizer Bar, Coupling
Rod and Stone Deflector
⇒ “2.1 Subframe, Stabilizer Bar, Coupling Rod and Stone Deflec‐
tor Overview”, page 124
⇒ “2.2 Subframe, Removing and Installing”, page 125
⇒ “2.3 Subframe, Securing”, page 128
⇒ “2.4 Subframe Bonded Rubber Bushing, Replacing”,
page 129
⇒ “2.5 Stabilizer Bar, Removing and Installing”, page 133
⇒ “2.6 Coupling Rod, Removing and Installing”, page 135

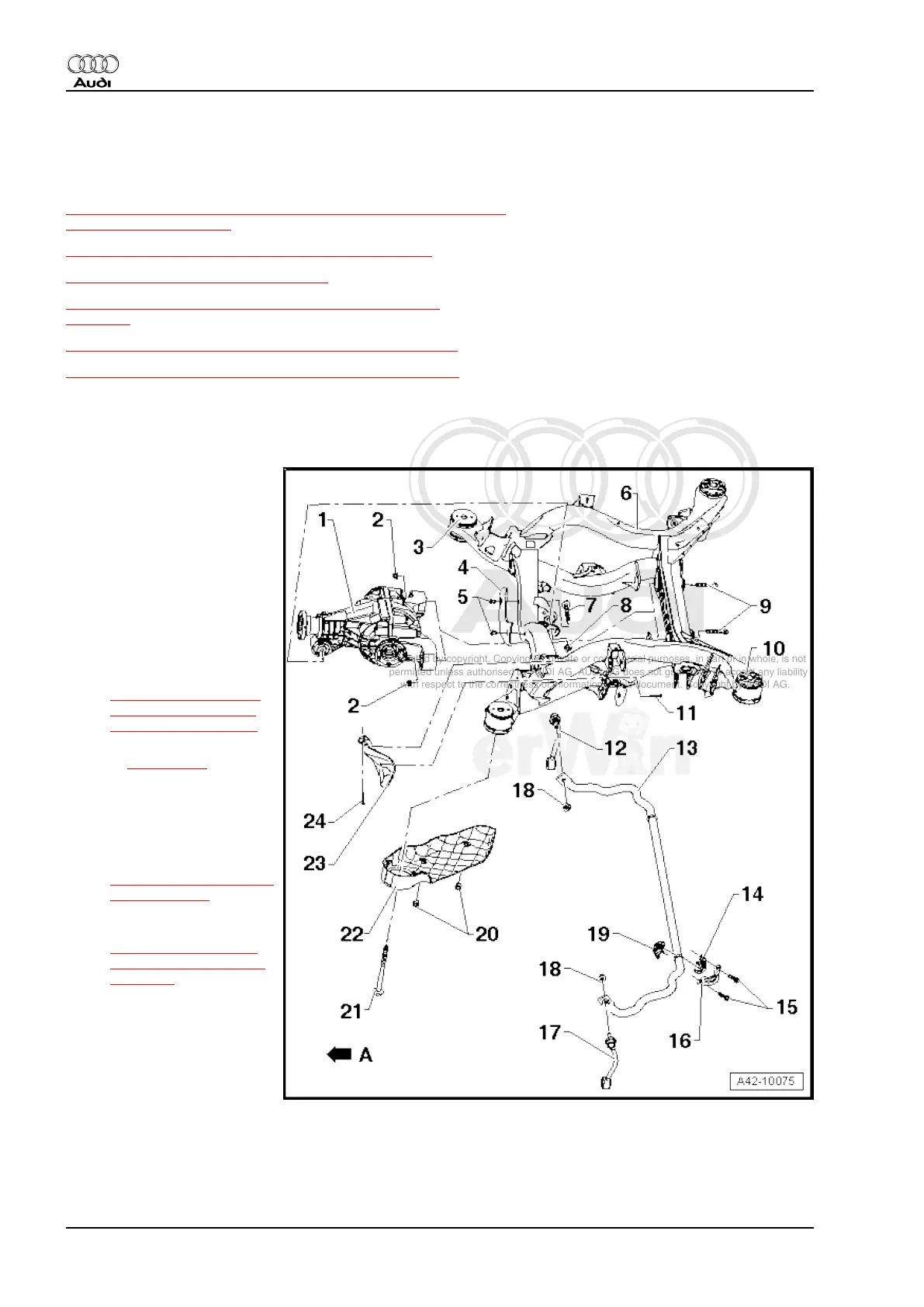

2.1 Subframe, Stabilizer Bar, Coupling Rod and Stone Deflector Overview
-Arrow A- points in direction of travel.
1 - Final Drive
❑ Removing and Instal‐
ling, refer to ⇒ Rep. Gr.
39 .
2 - Self-Locking Nut
❑ Always replace if re‐
moved.
3 - Front Bonded Rubber
Bushing
❑ Hydraulic support.
❑ Replace, refer to
⇒ “2.4 Subframe Bon‐
ded Rubber Bushing,
Replacing”, page 129 .
❑ Installed position, refer
to ⇒ page 132 .
4 - Stone Chip Protection
5 - Expanding Rivet
6 - Subframe
❑ Securing, refer to
⇒ “2.3 Subframe, Secur‐
ing”, page 128 .
❑ Removing and Instal‐
ling, refer to
⇒ “2.2 Subframe, Re‐
moving and Installing”,
page 125 .
7 - Bolt
❑ Always replace if re‐
moved.
8 - Self-Locking Nut
❑ 90 Nm + 90°
❑ Always replace if removed.
9 - Bolt
❑ 90 Nm + 90°
❑ Always replace if removed.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
124 Rep. Gr.42 - Rear Suspension
