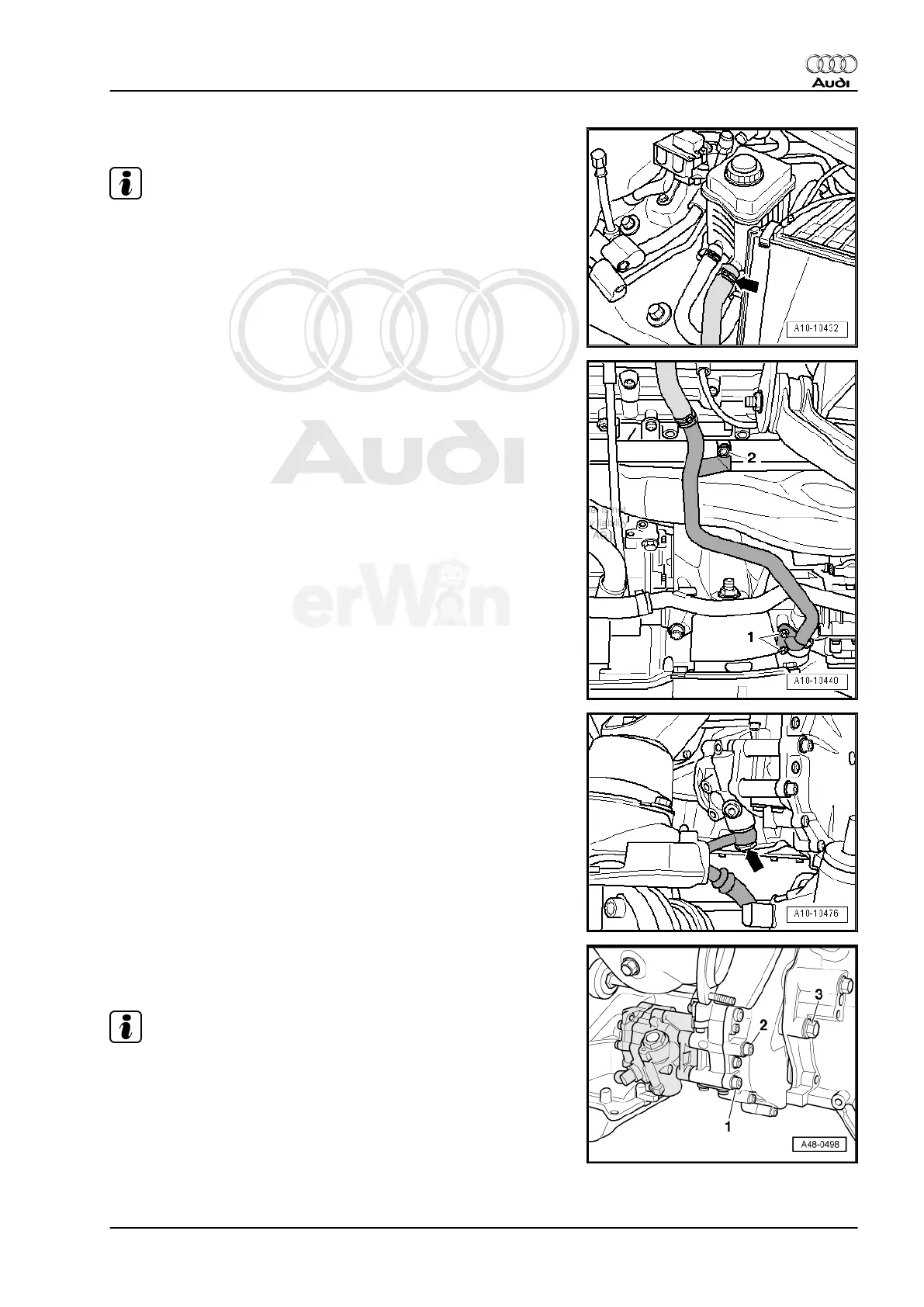

– Remove hose -arrow- from reservoir.
Note
Place a cloth under separation point to absorb escaping hydraulic
oil.
– Remove screws -1- and nut -2-. Remove suction line.
– Remove pressure line banjo bolt -arrow-.
– Remove screw -3-.
– Remove bolts -1- and -2- and remove vane pump.
Note
When removing power steering pump, note location of input shaft.
