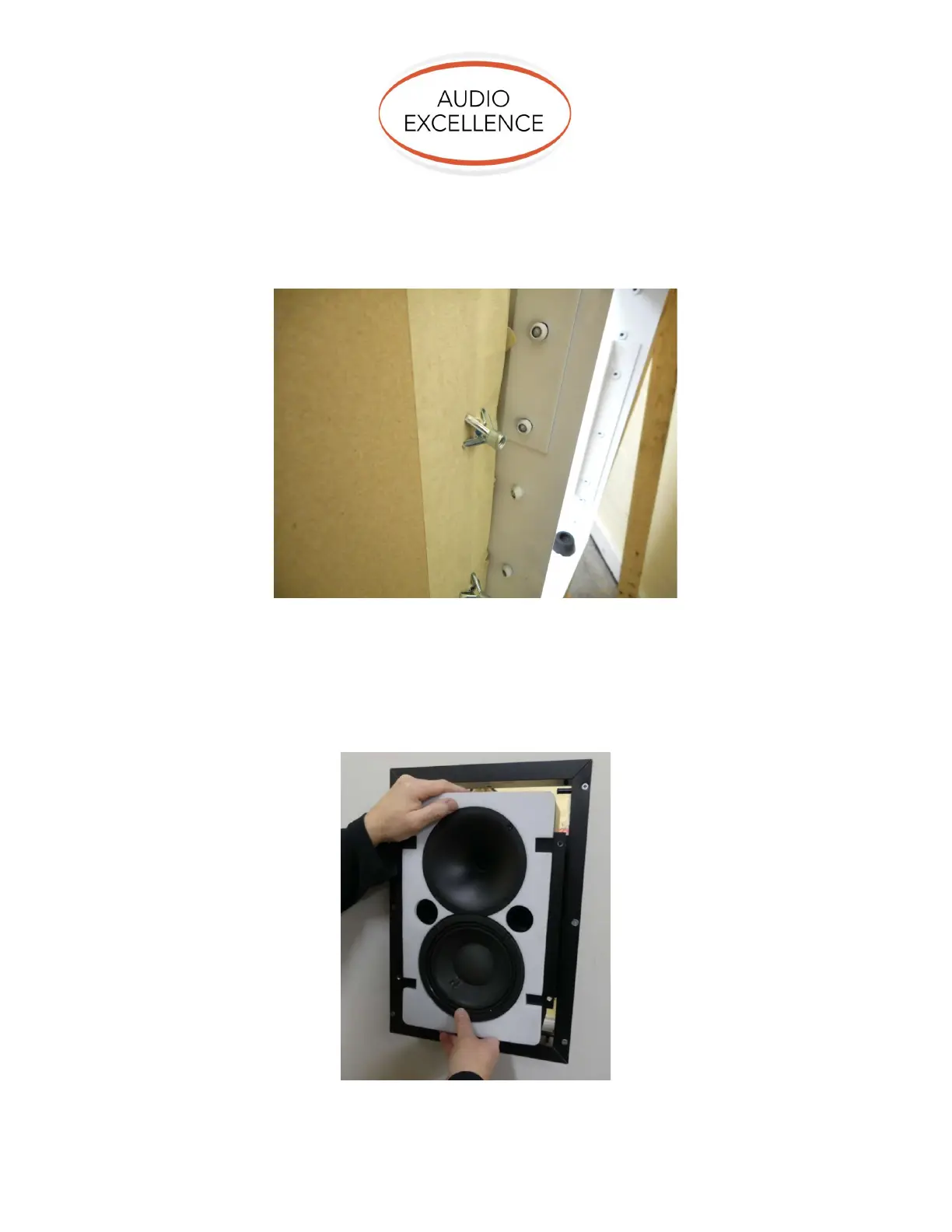

Rear view of frame showing one of the anchor bolts in position. Each bolt has a hold weight of 25Kg.
The frame is inserted back into the opening and secured to the plaster board using the counter sunk
screws. The photo below illustrates a Vertex 2 in position. Before a speaker is fitted into the frame
ensure the signal cable is securely fitted to the binding posts, noting the correct polarity. Please also
note, rubber buffers are fitted to the lower frame for the speaker to rest on and prevent any weight
from the installed speaker damaging any installers hands!
