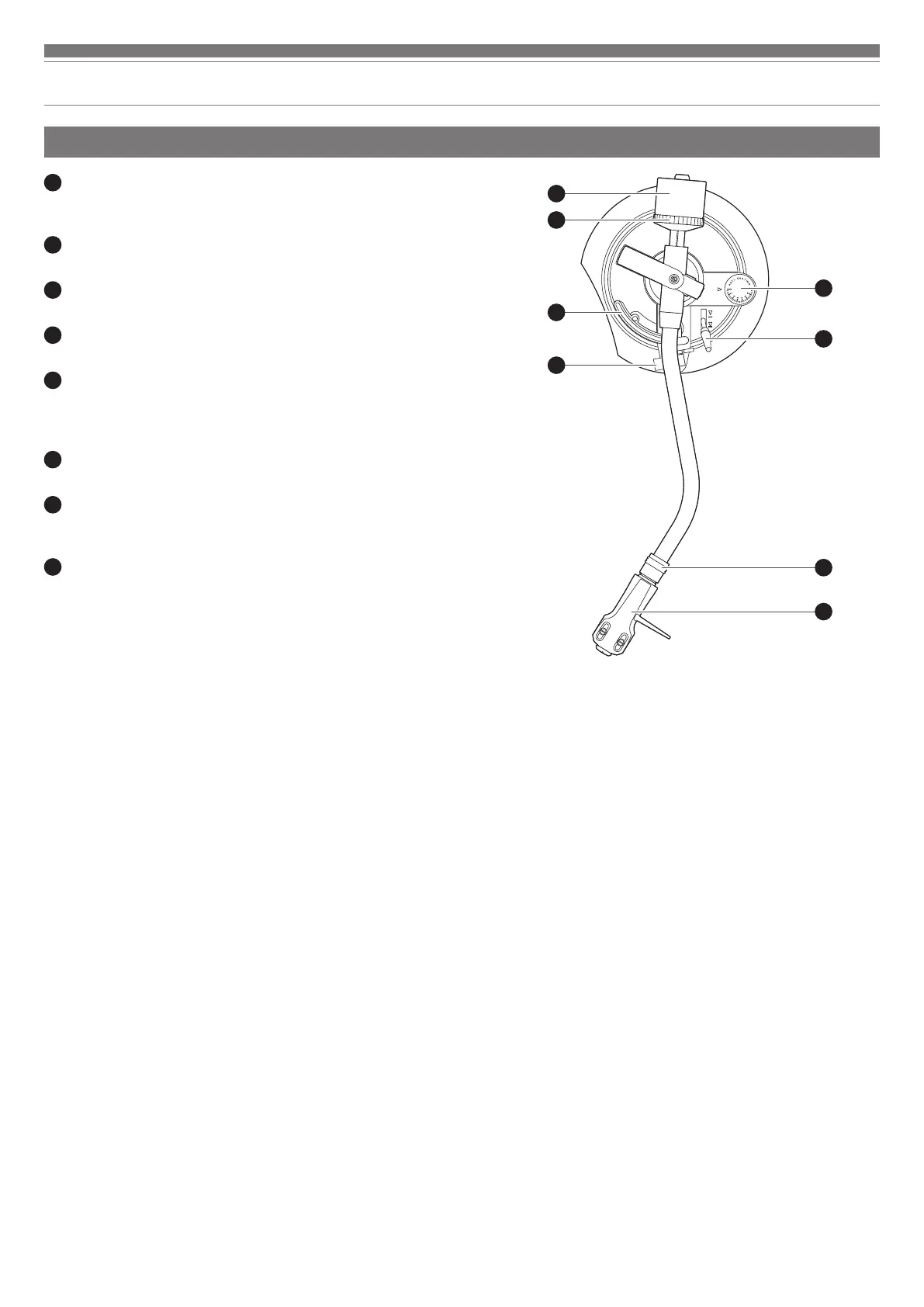

Part names and functions
Tonearm
1
Counterweight
Balances the tonearm and adjusts to provide the proper tracking
force.
2
Tracking force gauge ring
Use to adjust the tracking force.
3
Tonearm lift
Moves the tonearm vertically to and from the face of the record.
4
Tonearm rest with clamp
Use the clamp to secure the tonearm so that it does not move.
5
Anti-skate control dial
While the record is playing, a force acts on the stylus tip to pull it
inward. This force can be counteracted by setting the same values
for anti-skate and the tracking force.
6
Tonearm lift control lever
Operates the tonearm lift.
7
Locking ring
Rotate the ring to the left (counterclockwise) to secure the
headshell. To remove the headshell, rotate the ring to the right.
8
Headshell
The cartridge (AT-VM95E) is attached to the headshell (AT-HS6).
4
5
7
8
6
1
3
2

Audio Technica AT-LP120XUSB Specifications

General

Type	Belt-drive audio turntable
Operation	Manual
Motor type	DC servo motor
Output level	240 mV
Tone control	Yes
Product color	Silver
Wow & flutter	0.2 %
Nominal speeds	33 1/3, 45, 78 RPM
Volume control	Rotary
Starting torque	1 kg/cm
Platter material	Aluminum
Signal-to-Noise Ratio (SNR)	50 dB
Shape	S-shaped tonearm
USB ports quantity	1
Cables included	RCA, USB
Power supply type	AC
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3 A
AC adapter output voltage	12 V
Power consumption (typical)	2.75 W

Weight and Dimensions

Depth	352 mm
Width	452 mm
Height	141.6 mm
Weight	8000 g
