100 Hz
1 kHz
5 kHz
8 kHz
LEGEND
SCALE IS 5 DECIBELS PER DIVISION
90
60
120
30
150
210
240
270
300
330
180
0
LEGEND
Hi-pass
12" or more on axis (flat)
Frequency in Hertz
Response in dB
10 dB
20k
10k
5k
2k
1k
500
200100
50

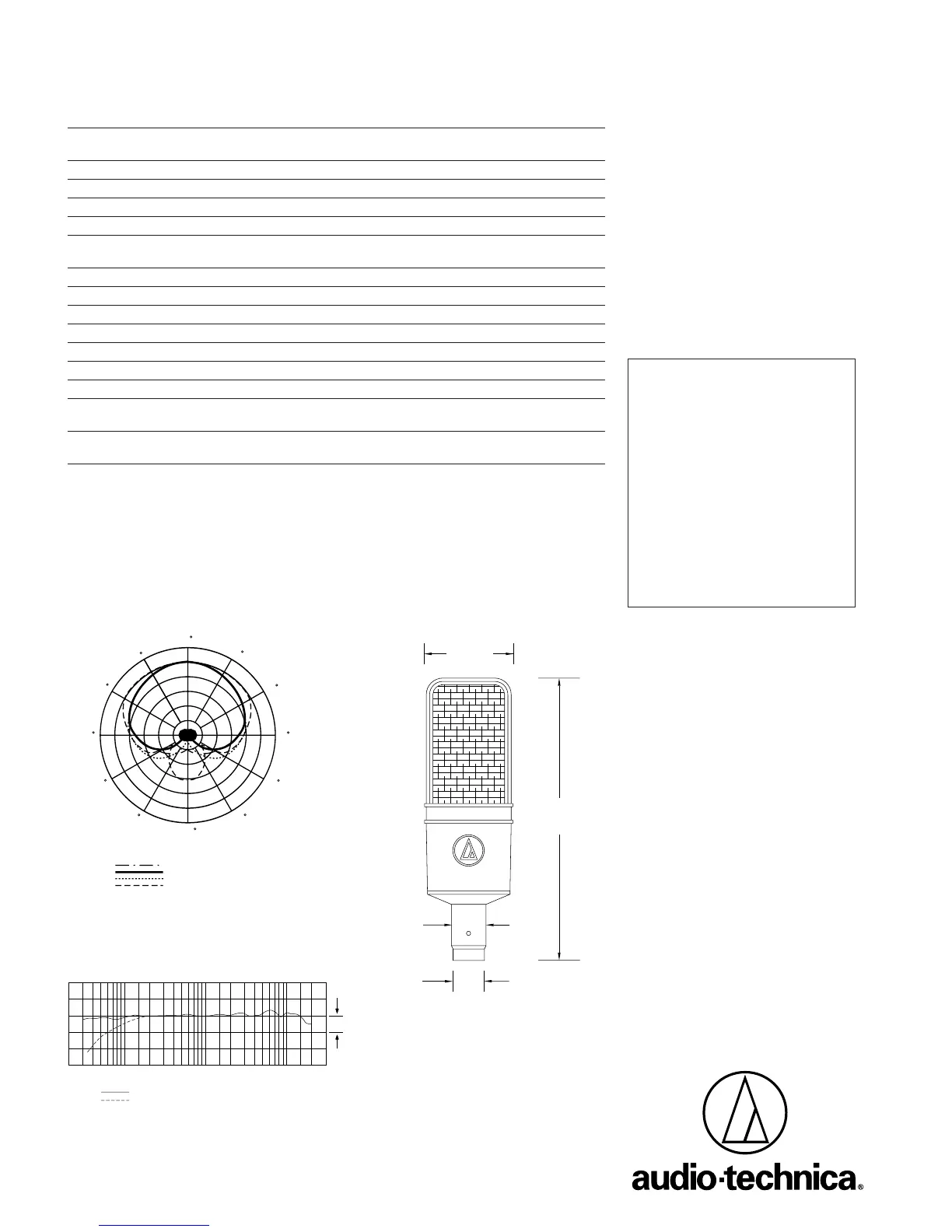

Specifications
†
ELEMENT Fixed-charge back-plate
permanently polarized capacitor
POLAR PATTERN Cardioid (Unidirectional)
FREQUENCY RESPONSE 30-20,000 Hz
OPEN CIRCUIT SENSITIVITY (1 kHz) –32 dB (25.1 mV) ± 2 dB, re 1V at 1 Pa*
1
IMPEDANCE 100 ohms
MAXIMUM INPUT SOUND LEVEL 145 dB SPL, 1 kHz at 1% T.H.D.
155 dB SPL, with 10 dB pad (nominal)
NOISE, TYPICAL (A-WEIGHTED)
2
17 dB SPL
DYNAMIC RANGE, TYPICAL 128 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO, TYPICAL 77 dB, 1 kHz at 1 Pa*
HI-PASS FILTER (LOW-END ROLL-OFF) 80 Hz, 12 dB/octave
POWER REQUIREMENTS 48V DC phantom (±4V)
CURRENT CONSUMPTION, TYPICAL 3.2 mA
WEIGHT (LESS CABLE AND CLAMP) 13.4 oz (380 g)
DIMENSIONS 6.69" (170.0 mm) long,
2.10" (53.4 mm) maximum body diameter
ACCESSORIES FURNISHED AT8441 shock mount for
5
/8"-27
threaded stands; protective carrying case
†In the interest of standards development, A.T.U.S. offers
full details on its test methods to other industry professionals
on request.
* 1 Pascal = 10 dynes/cm
2
= 10 microbars = 94 dB SPL
1
Measured at diaphragm
2
Using Audio Precision System One
Polar Pattern
Frequency Response
Dimensions
One-Year Limited Warranty
Audio-Technica microphones and accessories purchased
in the U.S.A. are warranted for one year from date of
purchase by Audio-Technica U.S., Inc. (A.T.U.S.) to be free
of defects in materials and workmanship. In event of such
defect, product will be repaired promptly without charge
or, at our option, replaced with a new product of equal or
superior value if delivered to A.T.U.S. or an Authorized
Service Center, prepaid, together with the sales slip or
other proof of purchase date.
Prior approval from A.T.U.S.
is required for return.
This warranty excludes defects
due to normal wear, abuse, shipping damage, or failure to
use product in accordance with instructions. This warranty
is void in the event of unauthorized repair or modification,
or removal or defacing of the product labeling.
For return approval and shipping information,
contact
the Service Department, Audio-Technica U.S., Inc., 1221
Commerce Drive, Stow, Ohio 44224.
Except to the extent precluded by applicable state law,
A.T.U.S. will have no liability for any consequential,
incidental, or special damages; any warranty of
merchantability or fitness for particular purpose
expires when this warranty expires.
This warranty gives you specific legal rights, and you may
have other rights which vary from state to state.
Outside the U.S.A., please contact your local dealer for
warranty details.
Optional Accessories:
• AT8137 large cylindrical foam windscreen.
• AT8314 2-conductor, shielded,
vinyl-jacketed, broadcast-type cable with
XLRF-type connector at microphone end,
XLRM-type connector at equipment end.
Available in 10', 20', 25', 30', 50' & 100'
lengths.
• AT8430 stand clamp for
5
/8"-27
threaded stands.
• CP8506 four-channel 48V phantom
power supply (AC powered).
• AT8801 single-channel 48V phantom
power supply (AC powered).
170.0 mm
6.69"
53.4 mm
2.10"
19.0 mm
0.75"
21.0 mm
0.83"
AT4033a
/
SM
Form No. 0345-0829-00-B/W P51123 ©1999 Audio-Technica U.S., Inc. Printed in U.S.A.
Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224
Audio-Technica Limited, Old Lane, Leeds LS11 8AG England
