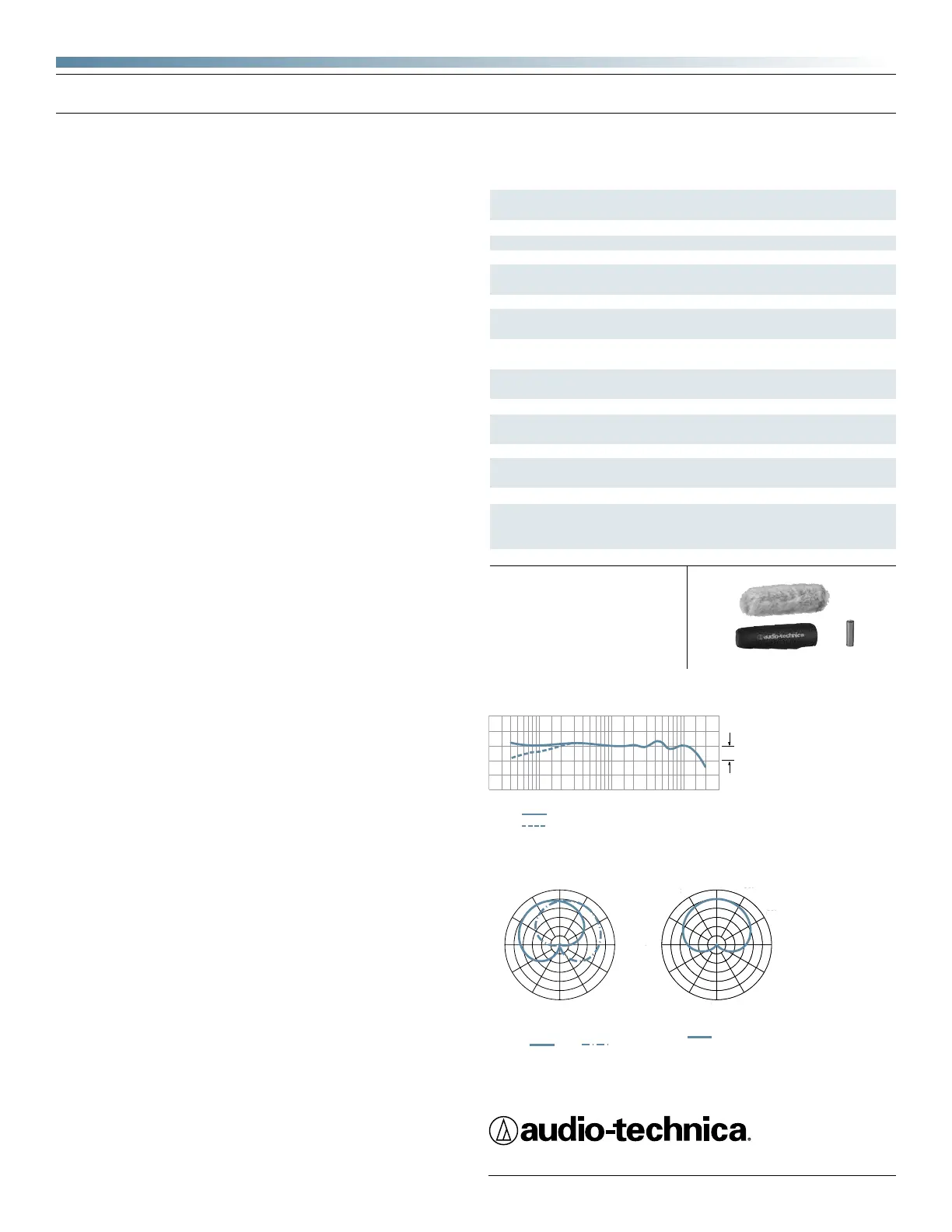

Audio Technica AT8024 User Manual

AT8024
Specications
Fixed-charge back plate,
permanently polarized condenser
Line-cardioid, LR stereo
40-15,000 Hz
80 Hz, 12 dB/octave
–37 dB (14.1 mV) re 1V at 1 Pa
50 ohms
128 dB SPL, 1 kHz at 1% T.H.D.; 148 dB
SPL, with 20 dB pad
Mono: 106 dB, 1 kHz at Max SPL; Stereo:
104 dB, 1 kHz at Max SPL
Mono: 72 dB, 1 kHz at 1 Pa; Stereo:
70 dB, 1 kHz at 1 Pa
Type: One 1.5V AA; Life: 100 hours typical
Mono, M-S Stereo; Three-position input
pad; Flat, roll-off
114 g (4.0 oz)
172.0 mm (6.77") long, 24.0 mm (0.94")
maximum body diameter
3.5 mm stereo mini-plug on cable
Permanently attached 0.2 m -1 m (7.8"-
39.3") coiled cable with right-angle molded
3.5 mm stereo mini-plug at output end
Windscreen; Fuzzy windscreen; AA battery
Elements
Polar patterns
Frequency response
Low frequency roll-off
Open circuit sensitivity
(Mono & LR Stereo)
Impedance
Maximum input sound level
(Mono & LR Stereo)
Dynamic range (typical)
Signal-to-noise ratio
1
Battery (included)
Switches
Weight
Dimensions
Output connector
Cable
Accessories furnished
In the interest of standards development, A.T.U.S.
offers full details on its test methods to other industry
professionals on request.
1 Pascal = 10 dynes/cm
2
= 10 microbars = 94 dB SPL
1
Typical, A-weighted, using Audio Precision System One.
Specications are subject to change without notice.
Audio-Technica Corporation
audio-technica.com ©2014 Audio-Technica 0001-0299-00
frequency response: 40– 15,000 Hz
polar patterns
LEGEND
1 kHz
SCALE IS 5 DECIBELS PER DIVISION
240˚
180˚
210˚
270˚
300˚
330˚
0˚
150˚
120˚
90˚
30˚
60˚
2
4
0
˚
1
8
0
˚
2
1
0
˚
2
7
0
˚
3
00˚
3
30˚
0˚
1
50˚
1
2
0
˚
9
0
˚
3
0˚
6
0˚
LEGEND
Left
1 kHz
Right
1 kHz
SCALE IS 5 DECIBELS PER DIVISION
240˚
180˚
210˚
270˚
300˚
330˚
0˚
150˚
120˚
90˚
30˚
60˚
LR stereo Mono
12" or more on axis
Roll-off
LEGEN
D
Frequency in Hertz
Response in dB
10 dB
100
50
200
10k
5k
1k
500
2k
20k

Audio Technica AT8024 Specifications

General

Brand	Audio Technica
Model	AT8024
Category	Microphone
Language	English
