Audio Technica ATW-1322 User Manual

System 10 PRO Installation and Operation
5

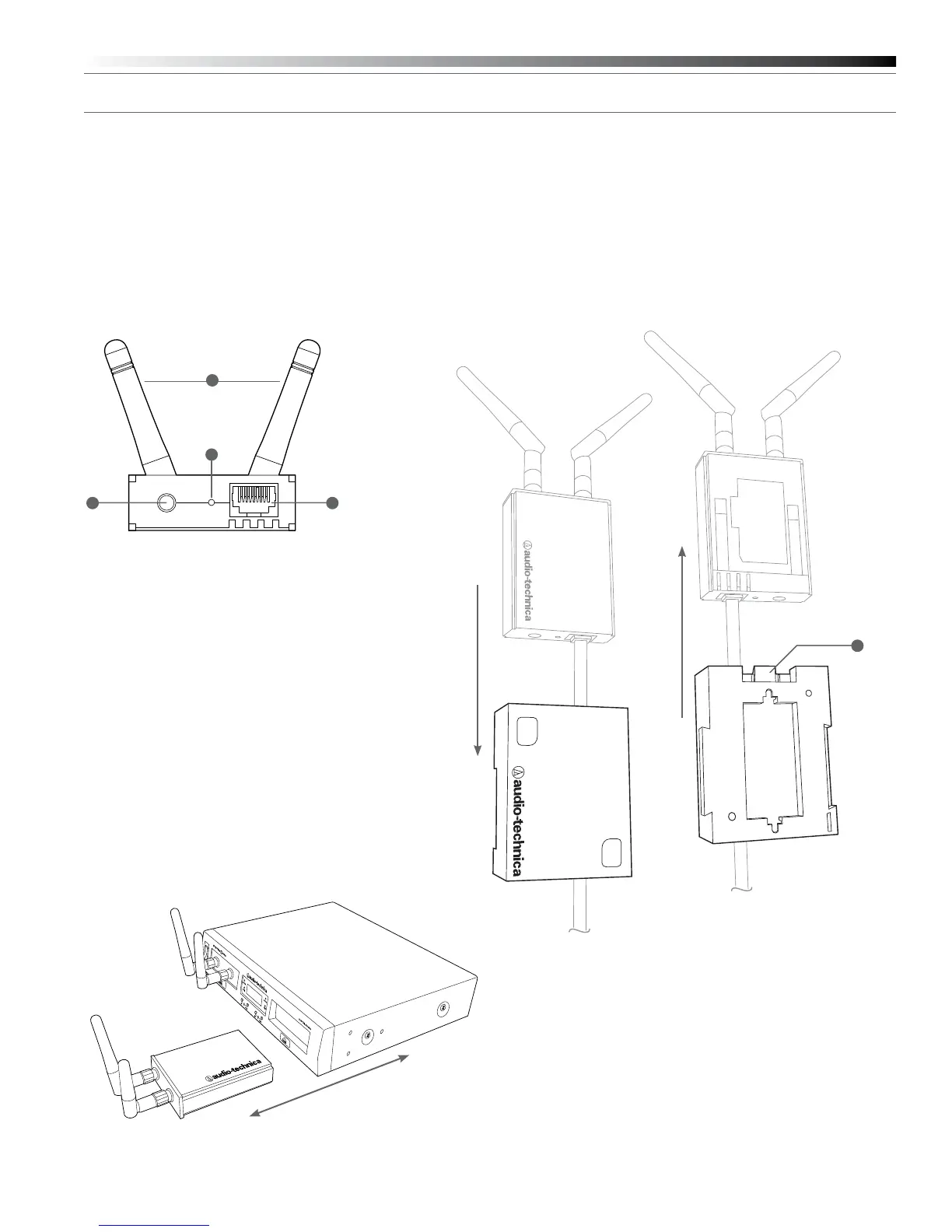

ATW-RU13 Receiver Unit Controls and Functions
Figure E — ATW-RU13 Functions
1. Antenna: Attach antennas and angle them away from each other so
a “V” shape is formed. Antennas attach via SMA connectors.
2. Mounting Socket: ¼"-20 thread socket for mounting receiver
remotely to tripod or other device with a ¼" screw.
3. Receiver Status Indicator: LED is off when receiver is without
power, blinks slowly when receiver is not paired with a transmitter,
blinks quickly during pairing process, and illuminates solidly green
once receiver is paired with a transmitter.
Figure E Figure F — AT8690 RU13 Holder Front and Back
2
1
3
4
5
4. RJ45 Connector: Run Ethernet cable to chassis to mount receiver
remotely (cable not included).
5. Holder Release Tab: Lift tab up to release receiver from holder.
Figure G — RU13 and RC13

Audio Technica ATW-1322 Specifications

General

Microphone type	Handheld microphone
Microphone frequency response	20 - 20000 Hz
Receiver type	Rack mount receiver
Receiver display	Yes
Transmitter type	Handheld transmitter
Number of microphones included	2
Number of transmitters included	1
Operating range	60m
Operating frequency	2400 MHz
Operating temperature (T-T)	0 - 40 °C
Total Harmonic Distortion (THD)	0.05 %
Battery type	AA
Battery voltage	1.5 V
Battery life (max)	7 h
Input voltage	100 - 240 V
Input frequency	50/60 Hz

Weight and Dimensions

Receiver weight	940 g
Transmitter weight	280 g
Receiver dimensions (WxDxH)	209.8 x 169.3 x 44 mm
