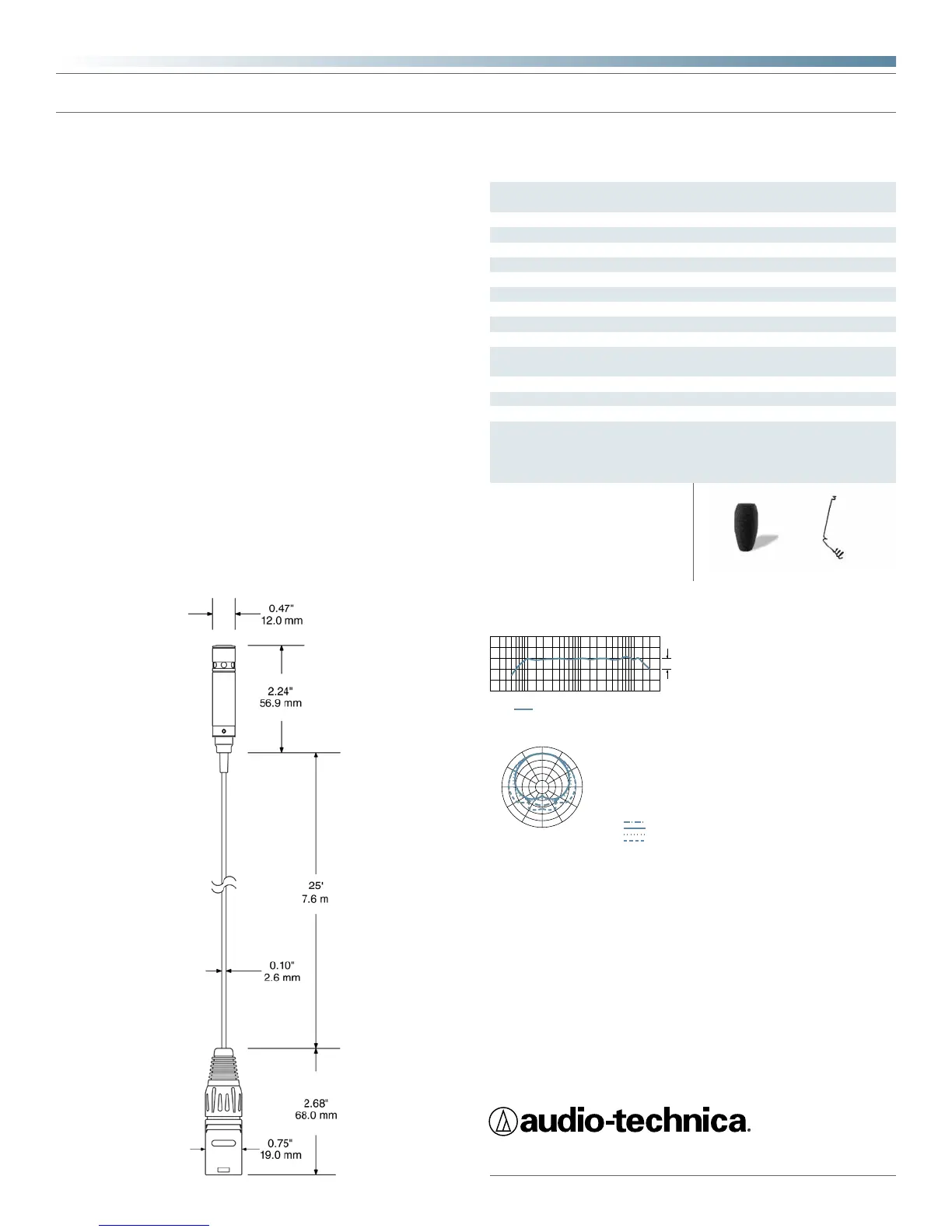

Audio Technica PRO 45 User Manual

PRO 45 & PRO 45W
Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224
Audio-Technica Limited, Old Lane, Leeds LS11 8AG England
©2010 Audio-Technica U.S., Inc. audio-technica.com 0001-0161-01
Specications
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
SCALE IS 5 DECIBELS PER DIVISION
240˚
180˚
210˚
270˚
300˚
330˚
0˚
150˚
120˚
90˚
30˚
60˚
12" or more on axis
LEGEND
Frequency in Hertz
Response in dB
10 dB
100
50
200
10k
5k
1k
500
2k
20k
frequency response: 70–16,000 Hz
polar pattern
In the interest of standards development, A.T.U.S. offers full
details on its test methods to other industry
professionals on request.
1 Pascal = 10 dynes/cm
2
= 10 microbars = 94 dB SPL
1
Typical, A-weighted, using Audio Precision System One.
Specications are subject to change without notice.
Fixed-charge back plate, permanently
polarized condenser
Cardioid
70-16,000 Hz
–37 dB (14.1 mV) re 1V at 1 Pa
100 ohms
134 dB SPL, 1 kHz at 1% T.H.D.
106 dB, 1 kHz at Max SPL
66 dB, 1 kHz at 1 Pa
9-52V DC, 2 mA typical
15 g (0.5 oz)
56.9 mm (2.24") long,
12.0 mm (0.47") head diameter
3-pin XLRM-type on cable
7.6 m (25') long, permanently attached
M21
AT8146 windscreen; AT8451 steel hanger
AT8146(WH) windscreen; AT8451(WH)
steel hanger
Element
Polar pattern
Frequency response
Open circuit sensitivity
Impedance
Maximum input sound level
Dynamic range (typical)
Signal-to-noise ratio
1
Phantom power requirements
Weight
Dimensions
Output connector
Cable
Audio-Technica case style
Accessories furnished
PRO 45
PRO 45W
351

Audio Technica PRO 45 Specifications

General

Brand	Audio Technica
Model	PRO 45
Category	Microphone
Language	English
