AUDIOBYTE TECHNOLOGIES
HYDRA Z Owner’s Manual
PRODUCT DESCRIPTION :
USB to digital audio converter (one input, 6 outputs) and clock generator. Outputs are : S/PDIF RCA,
S/PDIF BNC , AES/EBU, Toslink, I2S (LVDS), BNC Wordclock or Masterclock.

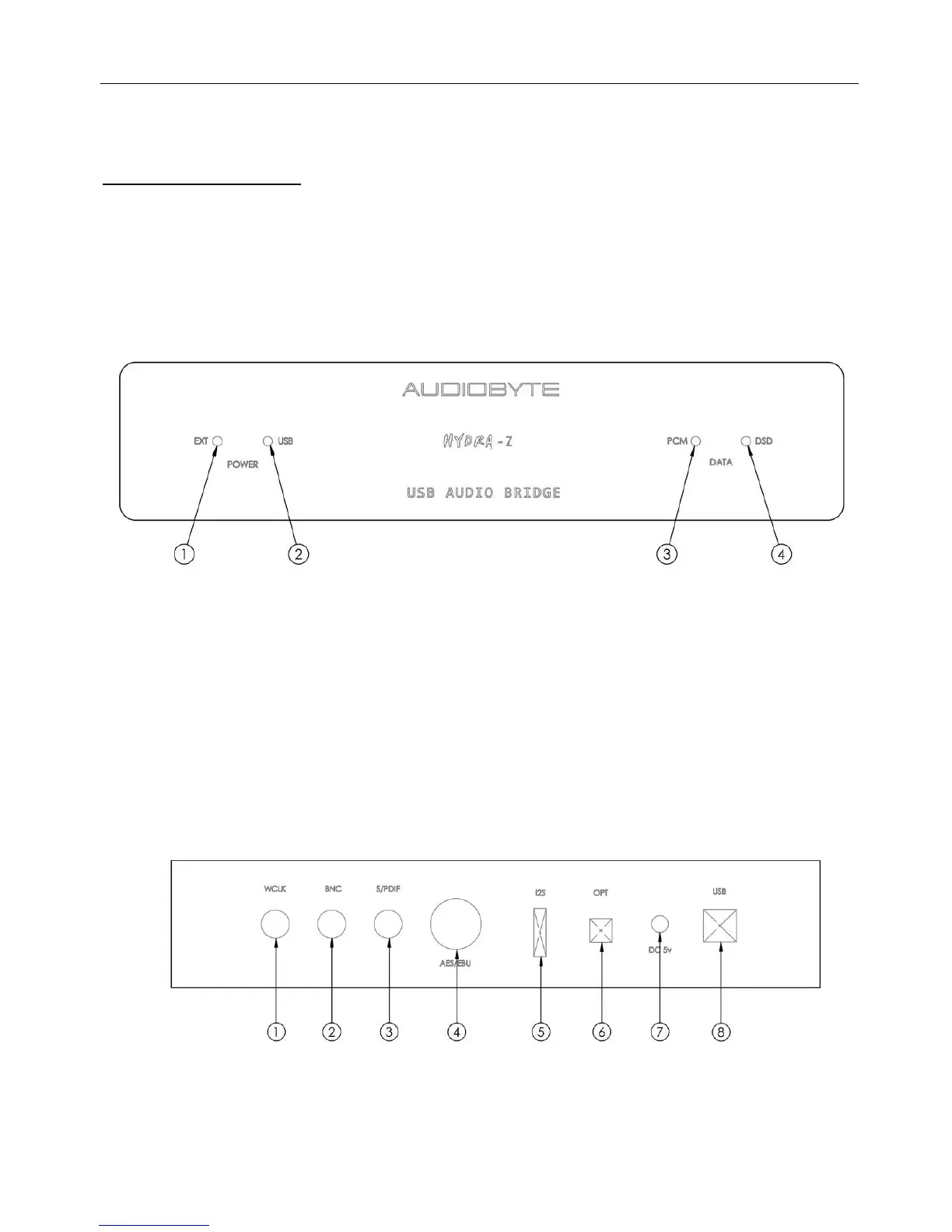

FRONT VIEW DIAGRAM:
1) LED signaling that external power is present
2) LED signaling that usb power is present (no external power)
3) LED signaling that PCM audio data is detected
4) LED signaling that DSD audio data is detected
BACK VIEW DIAGRAM:
1) WORDCLOCK or MASTERCLOCK output BNC (see special settings section)
2) S/PDIF BNC output
