Installation & Maintenance Manual 116 Document #: LTRT-40111

Mediant 1000B SBA

7. Establish a telnet session (enable Telnet on the PSTN Gateway):

a. Open the Telnet/SSH Settings page (Configuration tab > System menu >

Management > Telnet/SSH Settings).

b. From the ‘Embedded Telnet Server’ drop-down list, select Enable Unsecured.

c. In the ‘Telnet Server TCP Port’ field, ensure that the port used for Telnet is '23'

(default).

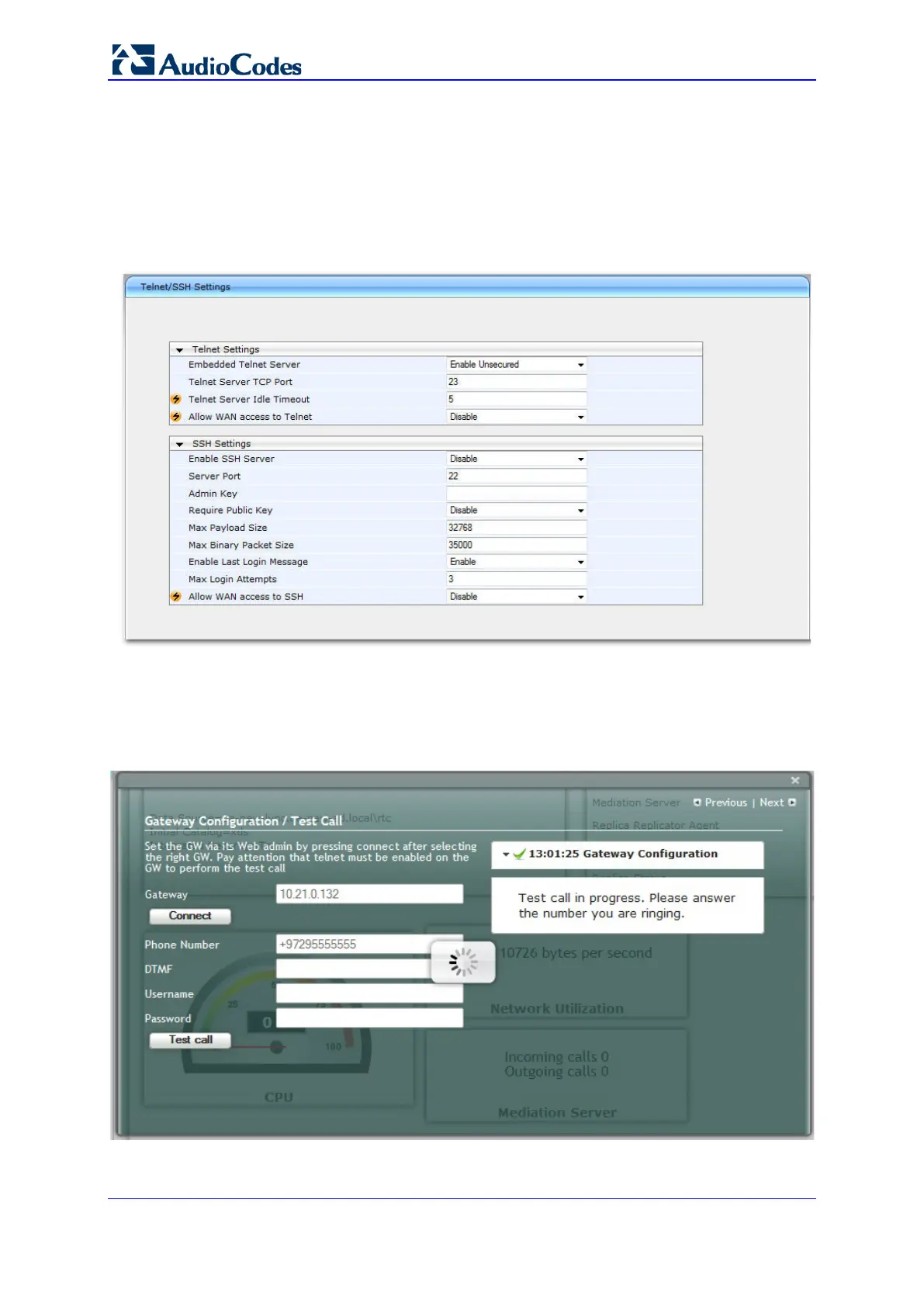

Figure 11-56: Enabling Telnet

8. Configure PSTN call routing (for more information, refer to the Mediant 1000B MSBR

User's Manual).

9. In the SBA Management Interface, click Test Call; the test call in progress is

displayed:

Figure 11-57: Test Call in Progress

a. When the call has been successfully tested.
