Installation & Maintenance Manual 12. PSTN Gateway Pre-Requirements

Version 6.8 143 Microsoft Lync Server

12 PSTN Gateway Pre-Requirements

Before configuring the PSTN Gateway, ensure the following:



The PSTN Gateway is running latest GA 6.60A SIP firmware Version.



The PSTN Gateway must be installed with the following Feature Keys:

• MSFT - enables working with Microsoft Lync

• IPSEC, MediaEncryption, StrongEncryption, and EncryptControlProtocol - enable

working with TLS

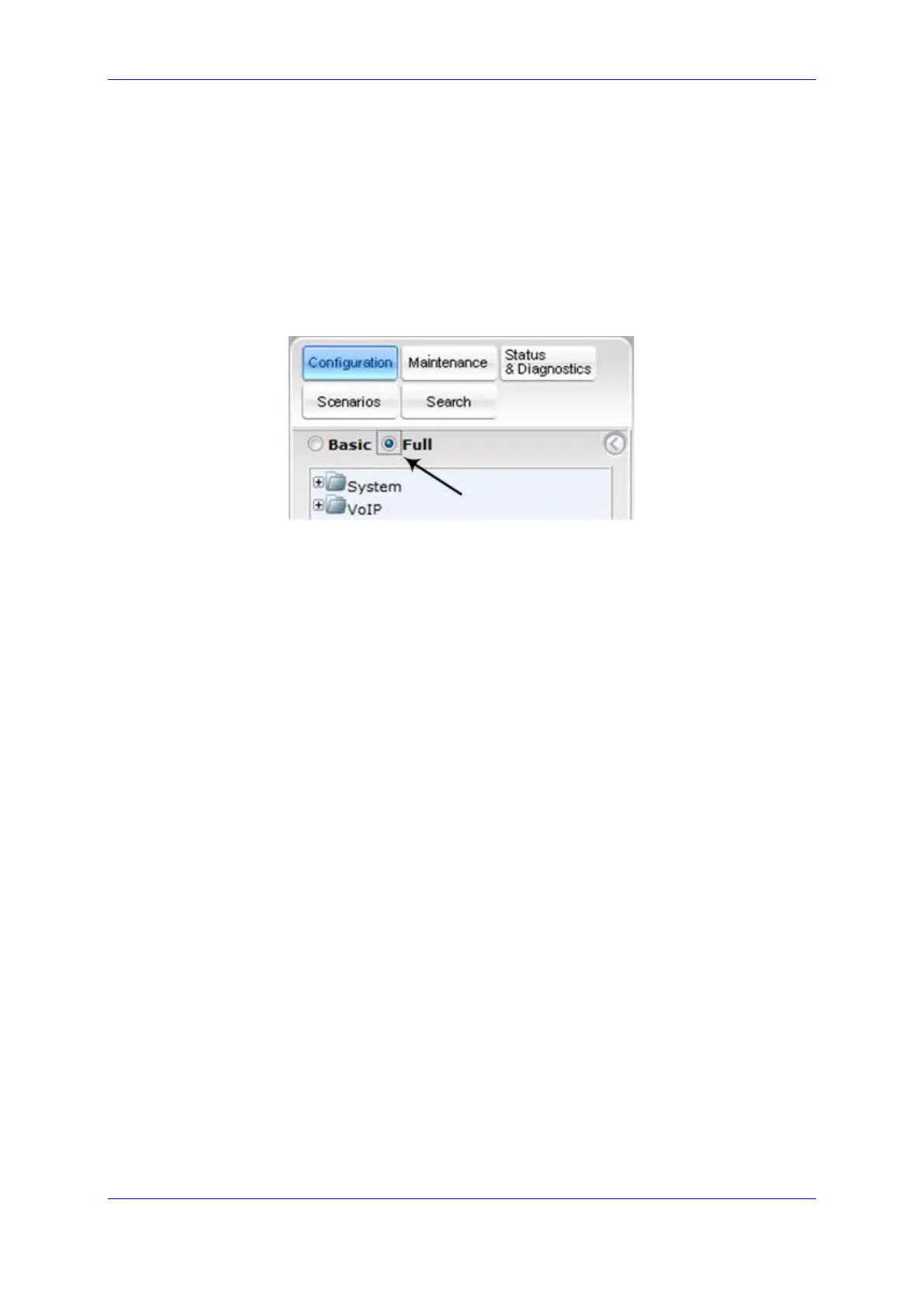

• Before beginning to configure the E-SBC, select the Full option in the Web

interface to display the full Navigation tree:

• When the E-SBC is reset, the Web interface reverts to Basic display.
