Installation & Maintenance Manual 226 Document #: LTRT-40111

Mediant 1000B SBA

10. When the X:\windows\system32 prompt appears, type the following command:

X:\windows\system32>gorecover

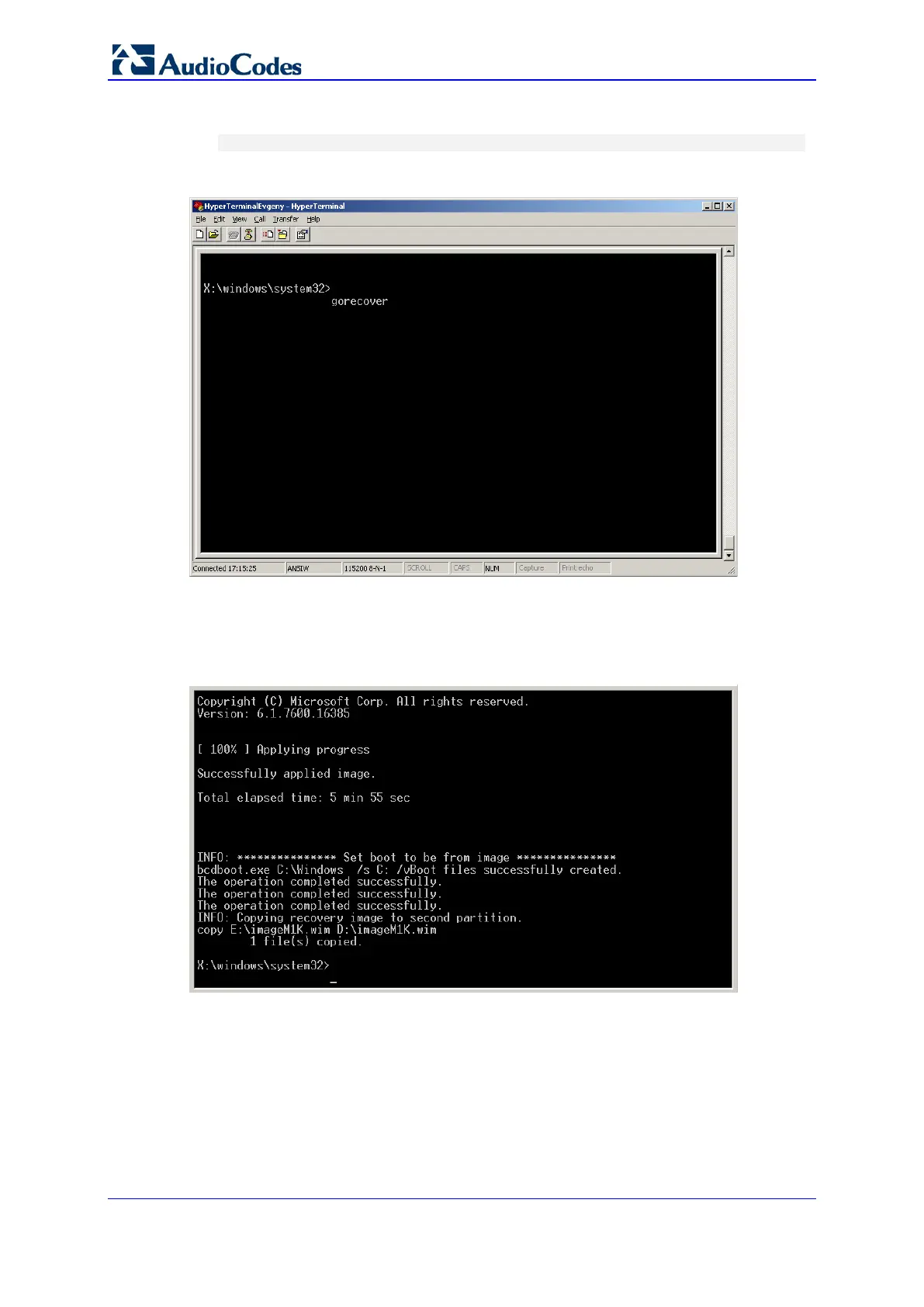

Figure 30-12: GoreCover

The SBA Recovery and Upgrade process starts and logged messages are displayed

in the console. When the procedure completes successfully, the following logged

messages are displayed:

Figure 30-13: Logged Messages

11. Remove the USB dongle from the USB port on the OSN module.

12. Power off and then power on the Mediant 1000B to reboot the OSN server; the

initialization process starts.
