Installation & Maintenance Manual D. Configuring RAID

Version 6.8 295 Microsoft Lync Server

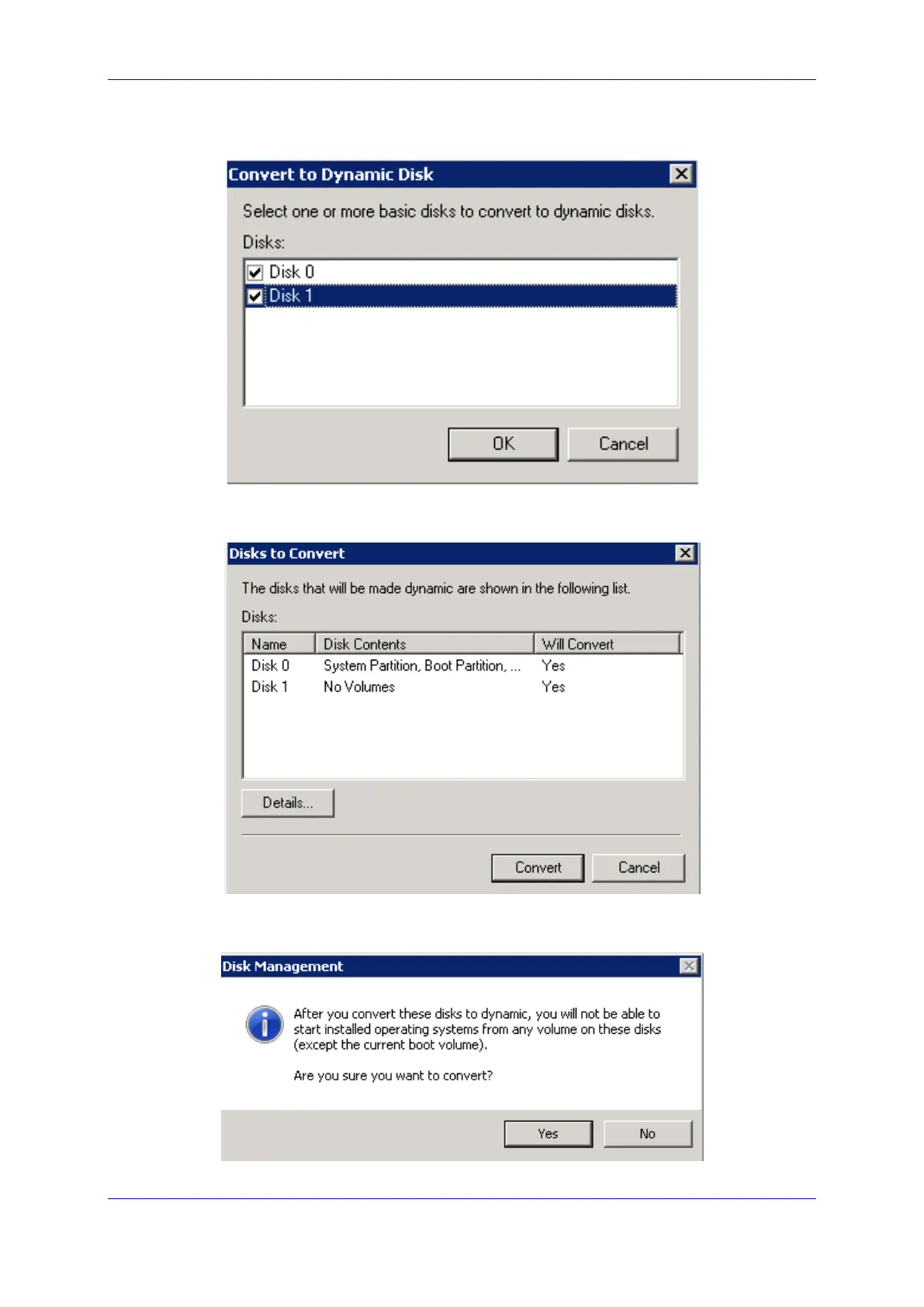

5. Select one or more basic disks to convert to dynamic disks, and then click OK.

Figure D-6: Convert to Dynamic Disk Selection

6. In the Disks to Convert screen, click Convert.

Figure D-7: Disks to Convert

7. In the Disk Management screen, click Yes.

Figure D-8: Disks Management
