AudioSource SW 15 - Line Level Connection Example; Hi Level Connection Example; Dedicated Subwoofer Connection; Television Enhancement Connection

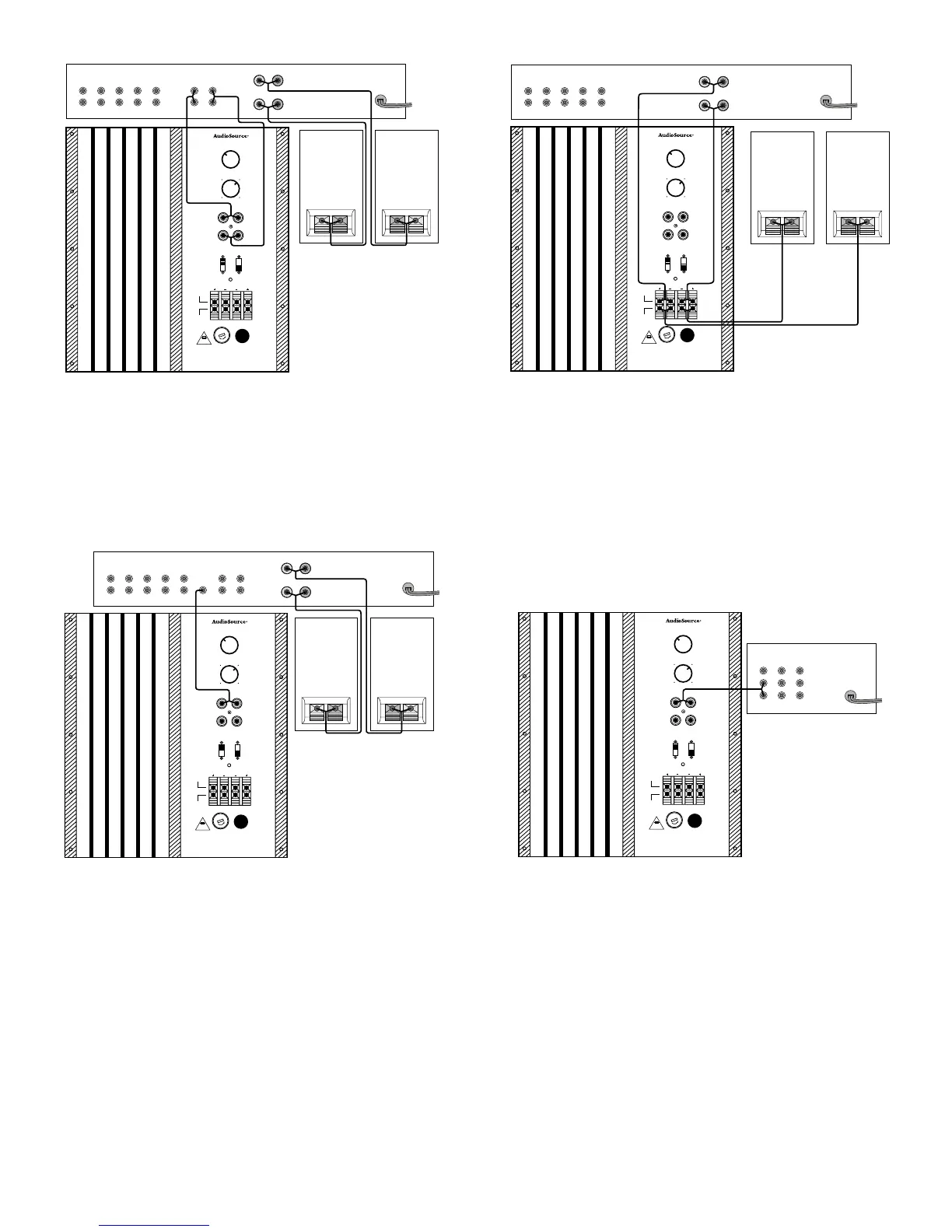

Dedicated Subwoofer Connections
Many surround sound decoders, home theater processors and
audio/video receivers are equipped with a dedicated subwoofer
line output. In this case, the signal is already processed and
does not need to return to the system or other speakers.
Connect this line output to the line inputs of the SW Fifteen.
A Y connector should be used to feed this single output to
both the left and the right line inputs.
Television Enhancement
Many newer television sets are equipped with variable stereo
outputs. The signal available at these outputs varies with the
television volume. In this situation, these variable audio out-
puts can be connected directly to the SW Fifteen line inputs to
enhance the bass response of the television's built-in speakers.
Line Level Connections
In this example, the pre-amp outputs of a stereo receiver are
connected to the SW Fifteen line inputs. The line outputs on
the SW Fifteen return the line level signal to the power amp
inputs on the stereo receiver, which in turn powers the left and
right speakers.
–
+
RIGHT
LEFT
CD
INPUT
TUNER
INPUT
PHONO
INPUT
TAPE LOOP
LEFT
RIGHT
LEFT
RIGHT
PREAMP
OUTPUT
POWER AMP
INPUT
Receiver
-
+
Right Speaker
-
+
Left Speaker
Level
120 Hz
180 Hz
80 Hz
40 Hz
Crossover
Frequency
Off
On
0˚
180˚
Phase Auto
Power
F
U
S
E
120VAC
180 Watts
60 Hz
T2A 250V
RISK OF FIRE
REPLACE FUSE
AS MARKED
LR
Line
In
Line
Out
Hi Level
In
Hi Level
Out
Left Right
–
+
RIGHT
LEFT
CD
INPUT
TUNER
INPUT
PHONO
INPUT
TAPE LOOP
LEFT
RIGHT
-
+
Right Speaker
Receiver
-
+
Left Speaker
Level
120 Hz
180 Hz
80 Hz
40 Hz
Crossover
Frequency
Off
On
0˚
180˚
Phase Auto
Power
F
U
S
E
120VAC
180 Watts
60 Hz
T2A 250V
RISK OF FIRE
REPLACE FUSE
AS MARKED
LR
Line
In
Line
Out
Hi Level
In
Hi Level
Out
Left Right
CD
INPUT
TUNER
INPUT
PHONO
INPUT
TAPE LOOP
LEFT
RIGHT
SUB
OUT
PREAMP
OUTPUT
POWER AMP
INPUT
–
+
RIGHT
LEFT
Receiver
-
+
Right Speaker
-
+
Left Speaker
Level
120 Hz
180 Hz
80 Hz
40 Hz
Crossover
Frequency
Off
On
0˚
180˚
Phase Auto
Power
F
U
S
E
120VAC
180 Watts
60 Hz
T2A 250V
RISK OF FIRE
REPLACE FUSE
AS MARKED
LR
Line
In
Line
Out
Hi Level
In
Hi Level
Out
Left Right
Level
120 Hz
180 Hz
80 Hz
40 Hz
Crossover
Frequency
Off
On
0˚
180˚
Phase Auto
Power
F
U
S
E
120VAC
180 Watts
60 Hz
T2A 250V
RISK OF FIRE
REPLACE FUSE
AS MARKED
LR
Line
In
Line
Out
Hi Level
In
Hi Level
Out
Left Right
OUTPUT
VARIABLE
OUTPUT
FIXED INPUT
VIDEO
LEFT
RIGHT
Television
Hi Level Connections
Here the signal is already amplified as it leaves the receiver/
amplifier. The speaker terminals of this unit are connected to
the hi level inputs of the SW Fifteen. The left and right speakers
receive the original amplified signal from the SW Fifteen hi
level outputs.
Enjoy your purchase. This manual provides detailed instructions for setting up your equipment.
Our commitment to your satisfaction doesn't end there. We also offer friendly, toll-free assistance.
1.800.HELP.115
