AudioSource SW 6.5 - Connection Diagrams; Hi Level Connections; Dedicated Subwoofer Connections; Television Enhancement

9300 North Decatur
Portland, Or. 97203
Tel. 503.286.9300
Fax 503.978.3302
audiosource@phoenixgold.com Printed in China
www.audiosource.net © 1999 AudioSource, Inc.
Amplifier Power Output . . . . . . . . . . . . . . .50 Watts
Frequency Response . . . . . . . . . . . .38 Hz to 150 Hz
Driver . . . . . . . . . . . . . . . . . . . . . . . .6.5" Reinforced
Functions . . . . . . . . . . . . . . . . . . . . .Power (On, Off)
Inputs . . . . . . . . . . . .Hi Level (Speaker), Line (RCA)
Dimensions . . . . . . .13.75" H x 8.125" W x 8.125" D
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 lbs.
Designs and specifications are subject to change without notice.
SW 6.5 Specifications

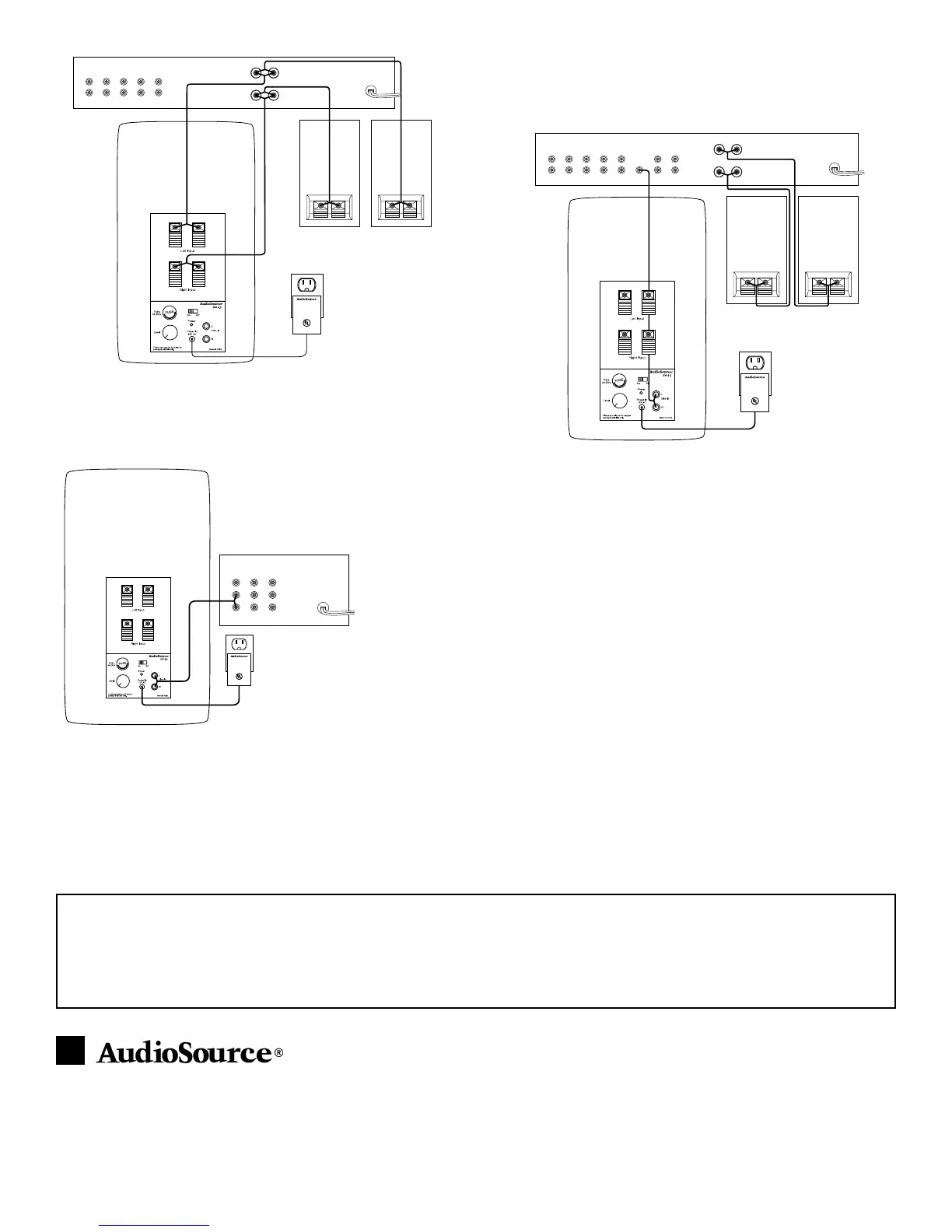

Hi Level Connections
In this example, the receiver has no subwoofer output. Both
the SW 6.5 and the front speakers are connected via the speaker
outputs.
SW 6.5
AC Adapter
–
+
RIGHT
LEFT
CD
INPUT
TUNER
INPUT
PHONO
INPUT
TAPE LOOP
LEFT
RIGHT
-
+
Right Speaker
Receiver
-
+
Left Speaker
SW 6.5
Dedicated Subwoofer Connections
Many surround sound decoders, home theater processors and
audio/video receivers are equipped with a dedicated subwoofer
line output. Connect this line output to the line inputs of the
SW 6.5. A Y connector may be necessary to feed this single
output to both the left and the right line inputs.
Television Enhancement
Many newer television sets are equipped with variable stereo outputs. The signal available
at these outputs varies with the television volume. In this situation, these variable audio
outputs can be connected directly to the SW 6.5 line inputs to enhance the bass response
of the television's built-in speakers.
OUTPUT
VARIABLE
OUTPUT
FIXED INPUT
VIDEO
LEFT
RIGHT
Television
SW 6.5
SW 6.5
AC Adapter
This manual provides detailed instructions for setting up your equipment. We also offer friendly, toll-free assistance.
1.800.HELP.115
CD
INPUT
TUNER
INPUT
PHONO
INPUT
TAPE LOOP
LEFT
RIGHT
SUB
OUT
PREAMP
OUTPUT
POWER AMP
INPUT
–
+
RIGHT
LEFT
Receiver
-
+
Right Speaker
-
+
Left Speaker
SW 6.5
AC Adapter
SW 6.5
