Audison AP 1 - Page 15

31
Owner’s Manual
U
2
A1
B1
E1
A2 B2
D
C
E2
F
A
1
A
2
B
1
B
2
C D U
2
V
1
V
2
E
1
E
2
F

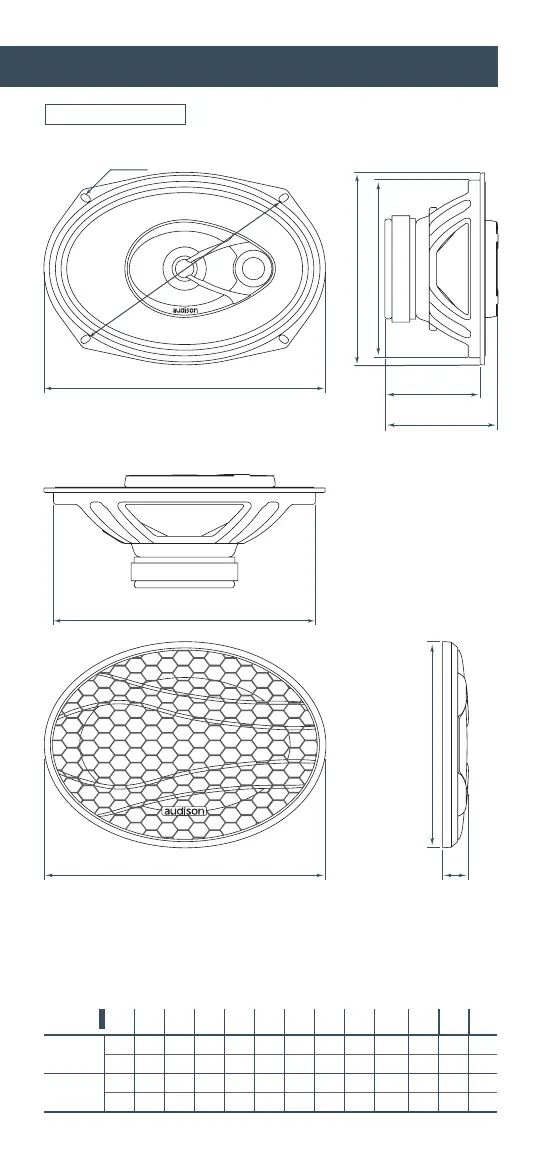

AP 690
238 162 222 151 86 81 205 8,8 5,6 - - - mm
9.37 6.38 8.74 5.95 3.39 3.19 8.07 0.34 0.22 - - - in.
APX 690
238 162 222 151 96 81 205 8,8 5,6 276 202 25 mm
9.37 6.38 8.74 5.95 3.78 3.19 8.07 0.34 0.22 10.86 7.95 0.98 in.
V1 - V2
AP 690 - APX 690
