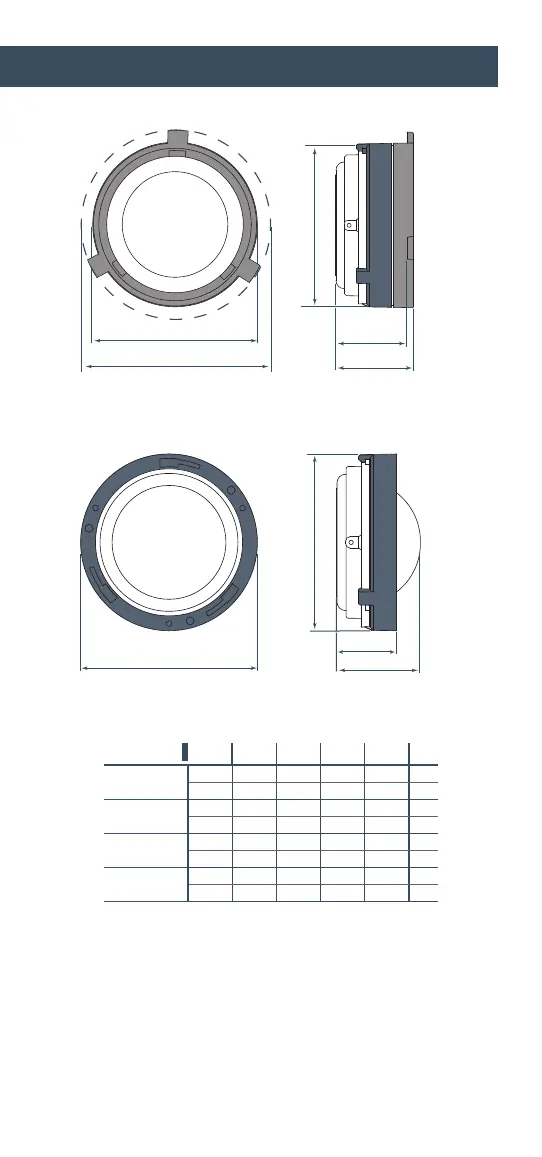

Audison AP 1 - AP 1 P Faceplate Dimensions

23
Owner’s Manual
A A3 B C D
AP 1P FP1
43,7 - 40,8 21,8 12,2 mm
1.72 - 1.61 0.86 0.48 in.
AP 1P FP2
43,7 - 40,8 21,8 11,2 mm
1.72 - 1.61 0.86 0.44 in.
AP 1P FP3
40,8 46,8 40,8 17,7 19,3 mm
1.61 1.84 1.61 0.7 0.76 in.
AP 1P FP4
40,8 - 40,8 19,3 13,8 mm
1.61 - 1.61 0.76 0.54 in.
FP3 - Faceplate 3
FP4 - Faceplate 4
A
A
3
A
B
B
D
C
C
D
