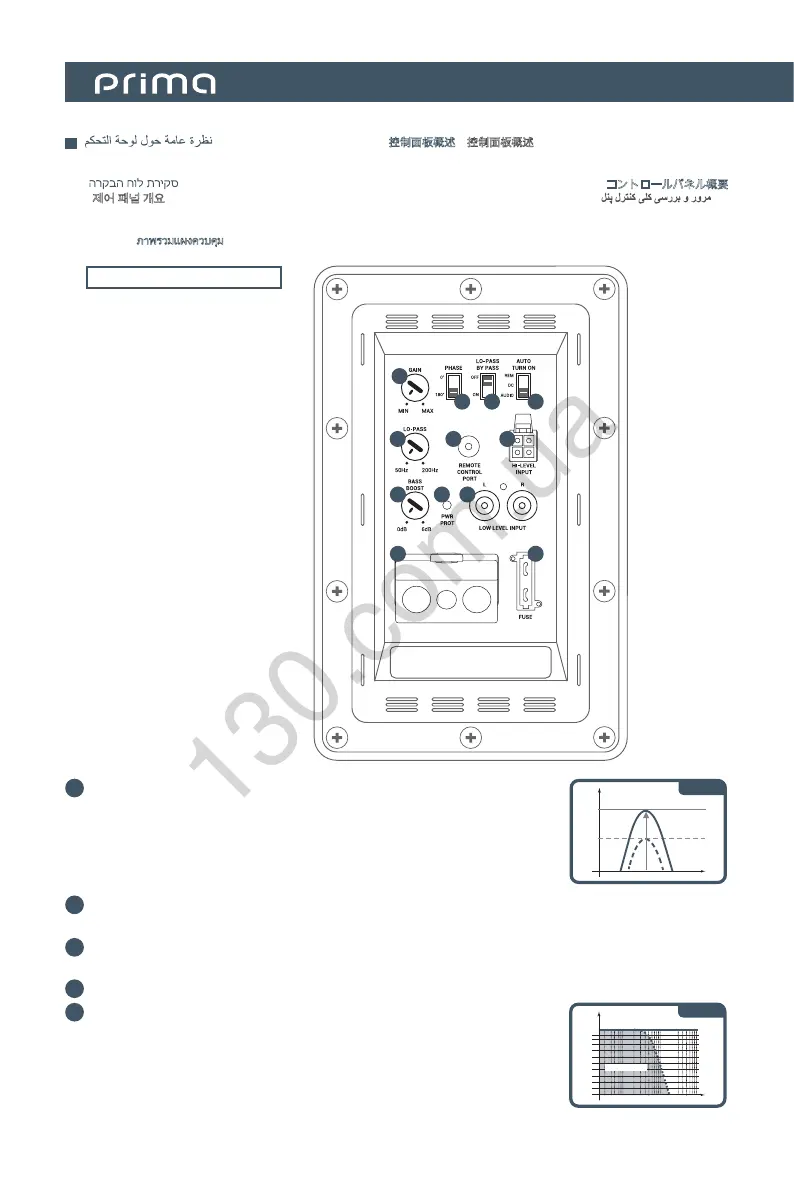

LO-PASS: 12dB/Oct frequency adjustable Butterworth low-pass lter (50÷200 Hz) / Filtro passa basso
Butterworth a 12dB/Oct regolabile (50÷200 Hz).
3 GAIN: gain adjustment: Lo-level input (0.13÷5 VRMS); Hi-Level input (0.3÷10 VRMS) / Regolazione del
guadagno: Ingressi pre-amplicati (0.13÷5 VRMS); Ingressi ad alto livello (0.3÷10 VRMS)
4 PHASE: output phase switch (0 - 180°) / Selettore della fase d’uscita (0 - 180°).
1
2
3
5
9
8
4 6
7
11
10
12
REM + BATTGND
1
BASS BOOST: adjustable Bass Boost control, 0÷6 db @ 45Hz. / Regolazione
del Bass Boost 0÷6 db @ 45Hz.
45
dB
+6
+3
Hz
0
BOOST
5
LO-PASS BYPASS: switch to disable the lo-pass lter (OFF= Filter enabled;
ON= Filter disabled). When it is set to ON, it allows the use of an external adjustable
SUB signal, coming from a DSP device or an amplier (eg AP 8.9 / 4.9 bit). / Interruttore
per escludere il ltro passa basso (OFF= Filtro inserito; ON= Filtro escluso).
Quando è impostato su ON, permette di utilizzare il segnale SUB esterno regolabile
dall’utente, proveniente da un’unita DSP o da un amplicatore (es. AP 8.9/4.9 bit).
Hz
dB
OFF
ON
0
50 ÷ 200 Hz
APBX 8 AS / APBX 10 AS
