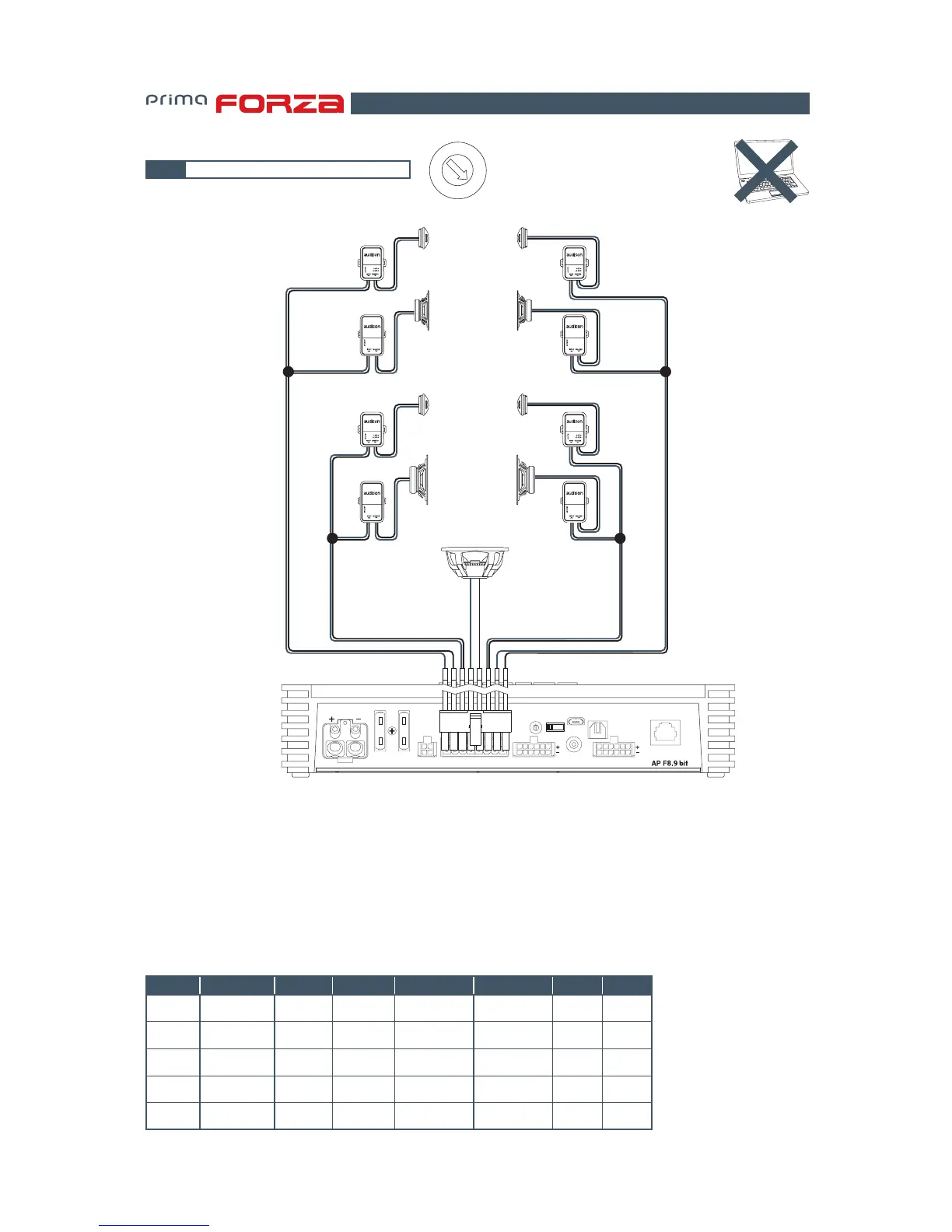

5.4.4 PRESET 3: FRONT + REAR + SUBWOOFER
1
2
3
4
5
6
7
0
0
1
2
3
4
5
6
7
USB
PRESETS OPTICAL IN
SUB OUTFUSE 2x30A CTRL
SPEAKER IN
PRE IN
DRC
UPGRADE
OFF ON
SPEAKER OUT
POWER - 12V
SUBWOOFER
REAR
LEFT
FRONT
LEFT
REAR
RIGHT
FRONT
RIGHT
Out 1 (+) Out 6 (+) Out 5 (+) Out 3 (+) Out 7 (+) Out 2 (-) Out 6 (-) Out 5 (-) Out 4 (-) Out 8 (-)
INPUT CONFIGURATION:
Master input: Front + Rear
Optical: S/P-DIF PCM 192kHz/24 bit max
MEMORY CONFIGURATION:
Memory A: Acoustic
Memory B: Rhythm
*
Listening Point: Driver
OUTPUT CONFIGURATION:
OUTPUT TYPE CUT FILTER FILTER TYPE CUT FREQUENCY TIME ALIGNMENT
*
POWER 4 Ω POWER 2 Ω
OUT 1 + 2-
FRONT LEFT HI PASS Linkwitz 80 Hz @12 dB 82,2 cm 300 W N. A.
OUT 3 + 4-
FRONT RIGHT HI PASS Linkwitz 80 Hz @12 dB 116,2 cm 300 W N. A.
OUT 5
REAR LEFT HI PASS Linkwitz 80 Hz @12 dB 62,3 cm 85 W 150 W
OUT 6
REAR RIGHT HI PASS Linkwitz 80 Hz @12 dB 116, 2 cm 85 W 150 W
OUT 7 + 8-
SUBWOOFER LO PASS Linkwitz 80 Hz @12 dB 121,8 cm 300 W N. A.
5
