10
EN

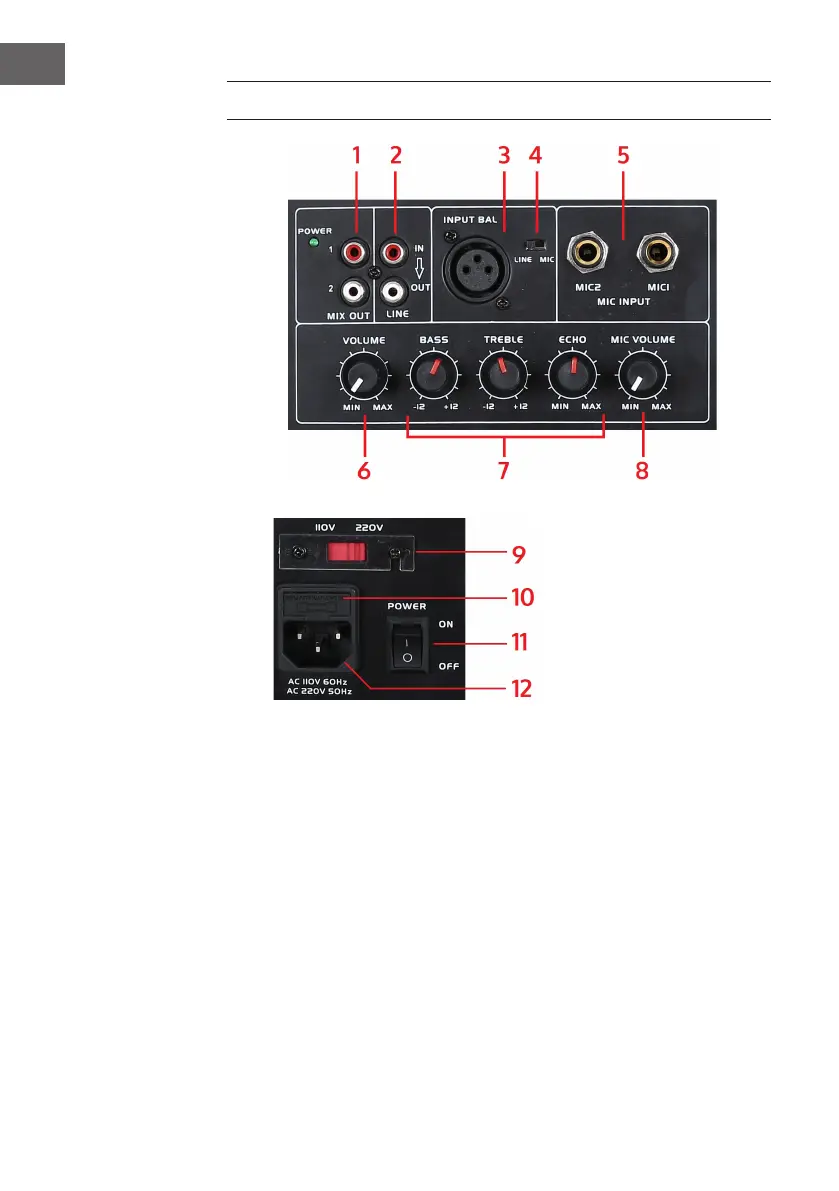

CONTROLS AND CONTROL PANEL
1 Cinch Out (to Mixer)
2 Cinch Line-In (ret), Line-Out (white)
3 Balanced input (XLR)
4 Input gain switch (Line/Mic)
5 Unbalanced Mic Inputs (6.3mm)
6 Master volume
7 EQ (bass, treble) and echo knob
8 Mic volume
9 AC voltage selector (110/220V)
10 Fuse
11 AC in
12 Power on/o
