Description of the RTH receiver (AURATON 3021 RTH)
The AURATON RTH receiver cooperates with the AURATON 3021R
wireless receiver. The receiver is installed on the heating or air
conditioning device and can operate under the load of 16 A.
7
cable tie clamp
control connection terminal
(a terminal for fastening a two-core
cable of the heating or air conditioning
device to be controlled
button for deregistering
already paired devices
button for pairing devices
with the RTH receiver
LED indicating operation
of the device
cable tie clamp
power supply terminal
~230 VAC

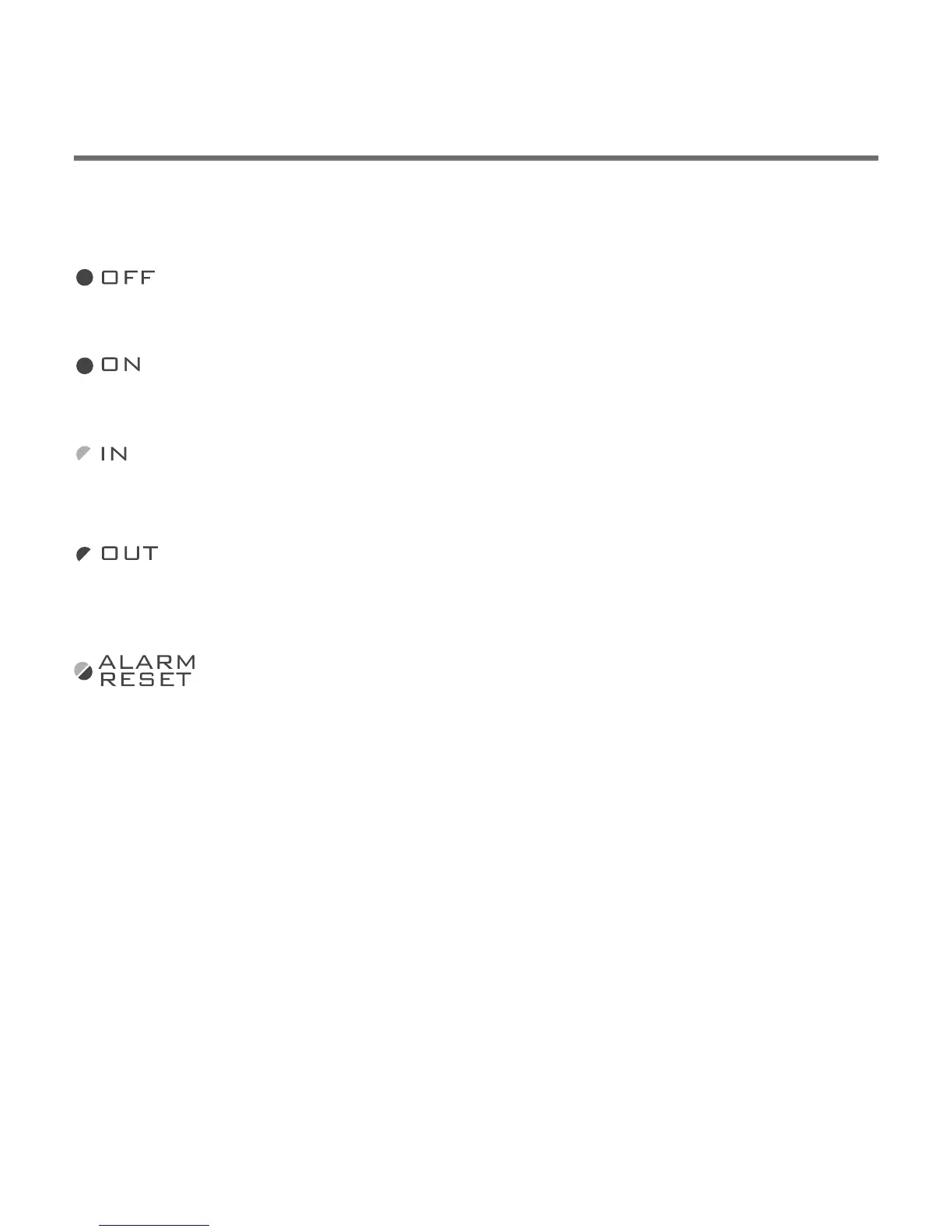

legend
The LED light’s green – the output device is off (the contacts
COM and NC are closed).
The LED light’s red – the output device is on (the contacts
COM and NO are closed).
The LED flashes green – the RTH receiver awaits the device
to be paired (chapter: “Pairing the wireless regulator and the
RTH receiver”).
The LED flashes red – the RTH receiver awaits the device
to be deregistered (chapter: “Deregistering the regulator
from the receiver”).
The LED flashes alternating red and green:
ALARM - the RTH receiver has lost connection with one of
the paired devices (chapter “Special situations”).
RESET - receiver deregisters all previously paired devices -
(chapter “Deregistering all devices paired with the
RTH receiver”).
Legend - description of LED signalling
hole for fastening the receiver
to the wall with a screw
hole for fastening the receiver
to the wall with a screw
