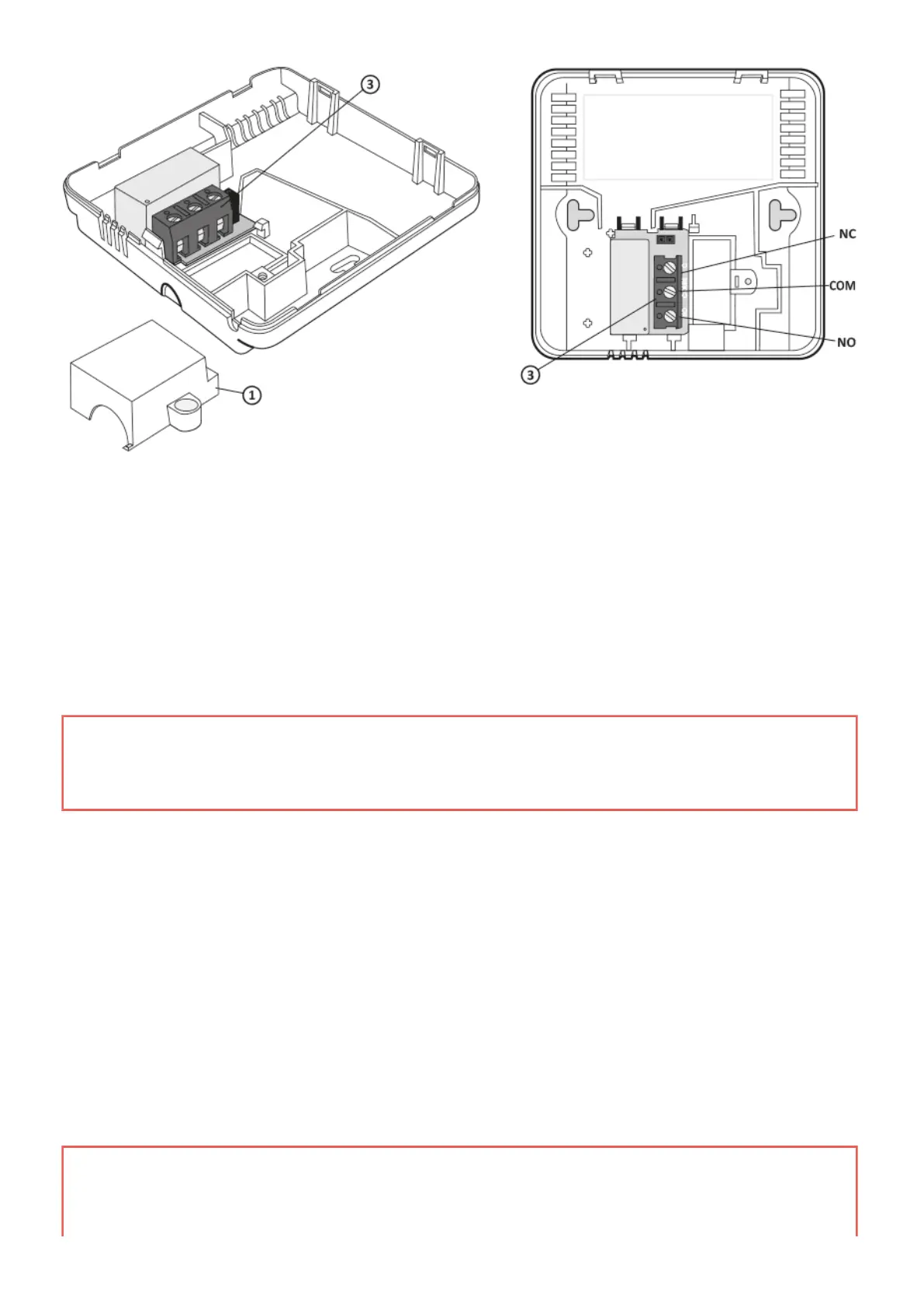

cover1.
screw2.
wire terminals3.
It is a typical single-pole double-throw relay. In most cases, the NC clip is not used.
NOTE:
After connecting the wires, reinstall the plastic cover.
Battery installation/replacement
The battery socket is located inside the regulator on the front of the housing. To install the batteries,
remove the regulator housing as shown in section “Connecting the cables to AURATON Auriga”.
NOTE:
To power AURATON regulators, we recommend alkaline batteries. Do not use
