INSTALLATION GUIDE

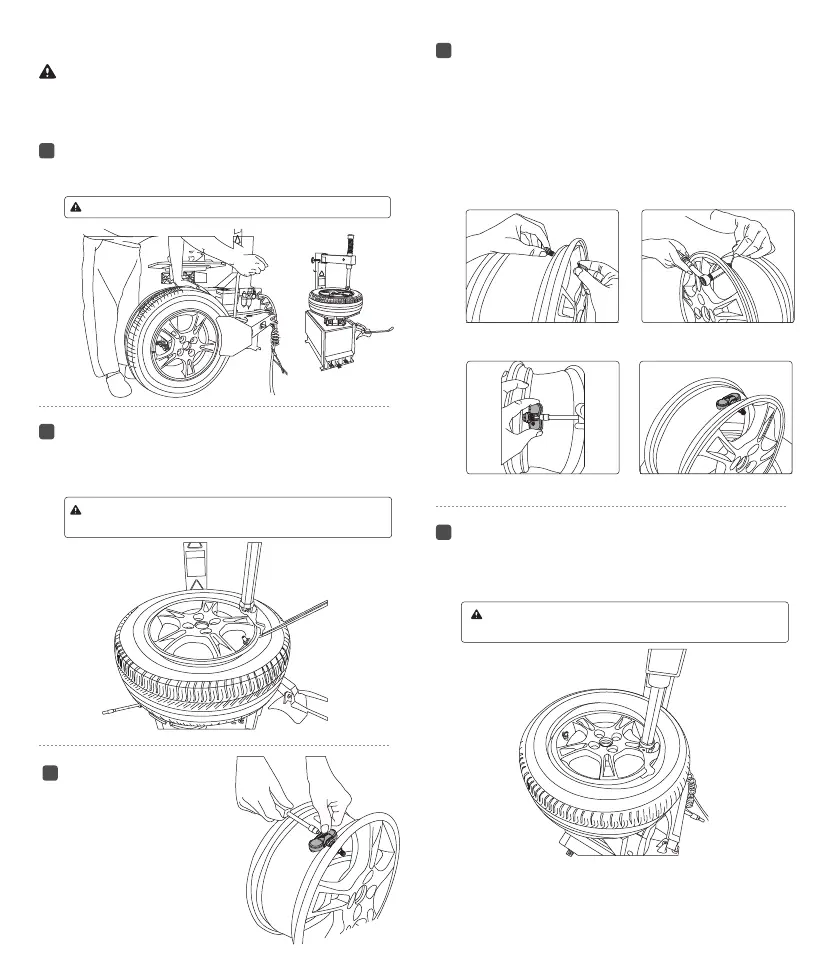

Loosening the tire
IMPORTANT: Before operating or maintaining this unit, please
read these instructions carefully and pay extra attention to the
safety warnings and precautions. Use this unit correctly and with
care. Failure to do so may cause damage and/or personal injury
and will void the warranty.
Remove the valve cap and core and deflate the tire.
Use the bead loosener to unseat the tire bead.
1
CAUTION: The bead loosener must be facing the valve.
Mounting the tire
5
Dismounting the tire
Clamp the tire onto the tire changer, and adjust the valve at 1
o'clock relative to the tire separation head. Insert the tire tool and
lift the tire bead onto the mounting head to dismount the bead.
2
CAUTION: This starting position must be observed during
the whole dismounting process.
Mounting sensor and valve
4
Dismounting the sensor3
Remove the fastening screw
and the sensor from the valve
stem with a screwdriver, and
then loosen the nut to remove
the valve.
Place the tire on the rim, make sure that the valve faces the
separation head at an angle of 180°. Mount the tire over the
rim.
Step 1 Slide the valve stem through the valve hole of the rim.
Step 2 Tighten the screw-nut with 4.0 N·m with the help of the
fixed rod.
Step 3 Adjust the installation angle so that the sensor fits the rim
tightly, and then tighten the screw.
Step 4 The sensor and valve are now installed.
CAUTION: The tire should be mounted to the wheel
using tire changer manufacturer’s instructions.
Step 1 Step 2
Step 3 Step 4
