2 Wiring and Components

12.04.2016 Mk8 EGA Set-Up and Trim Guide Page 11

2.3.2 EGA Connections

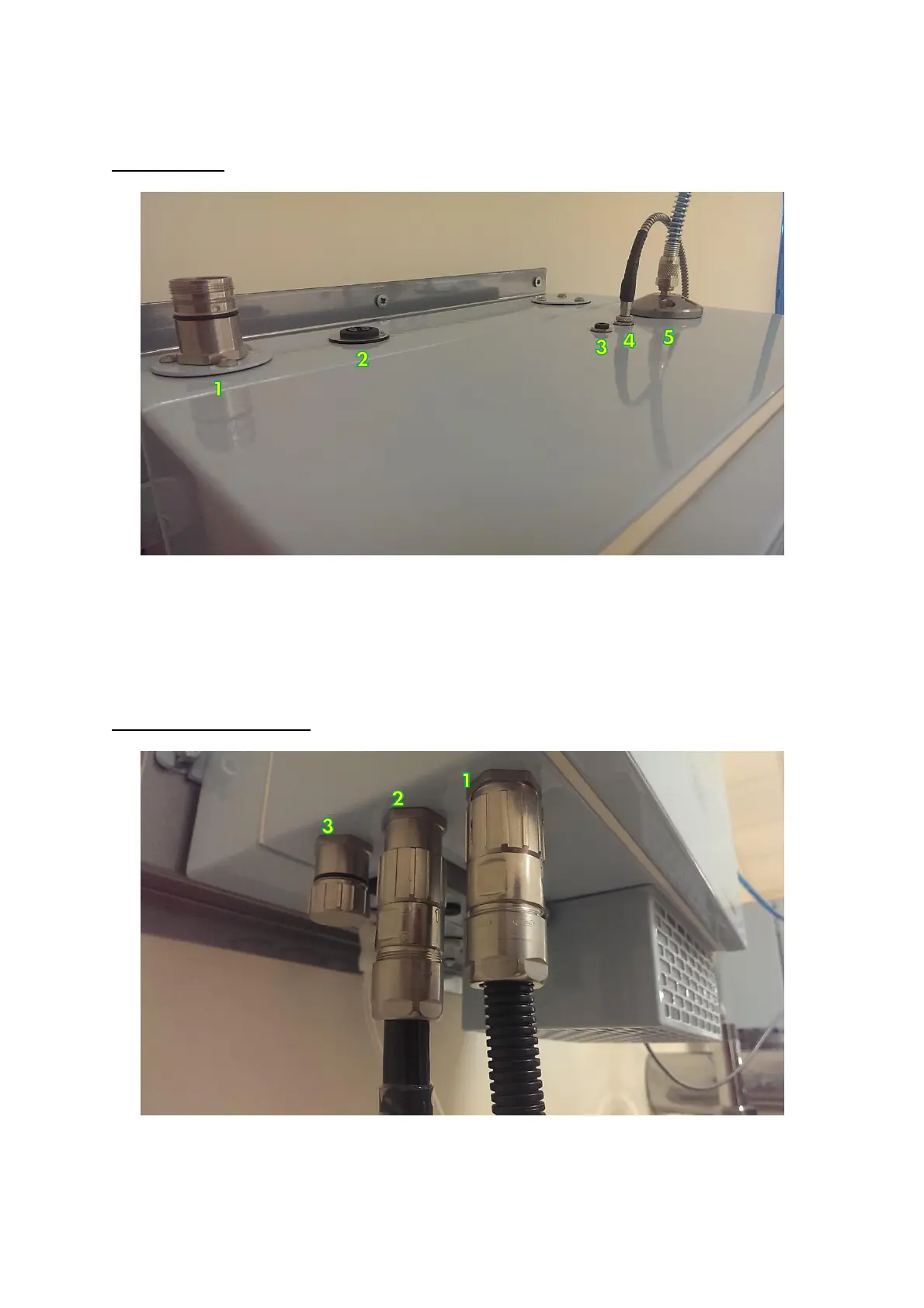

Top Connections

1. Heated Sample Line (HSL) Power Connection (EPA only)

2. Heated Sample Line Fuse (EPA only)

3. Pre-Heated Air Thermocouple Connection

4. Exhaust Temperature Thermocouple

5. Sample Line connection

Power and Data Connections

1. Power Connector

2. Data Connector

3. External Particulate Filter/ External Drain Connector
