EN

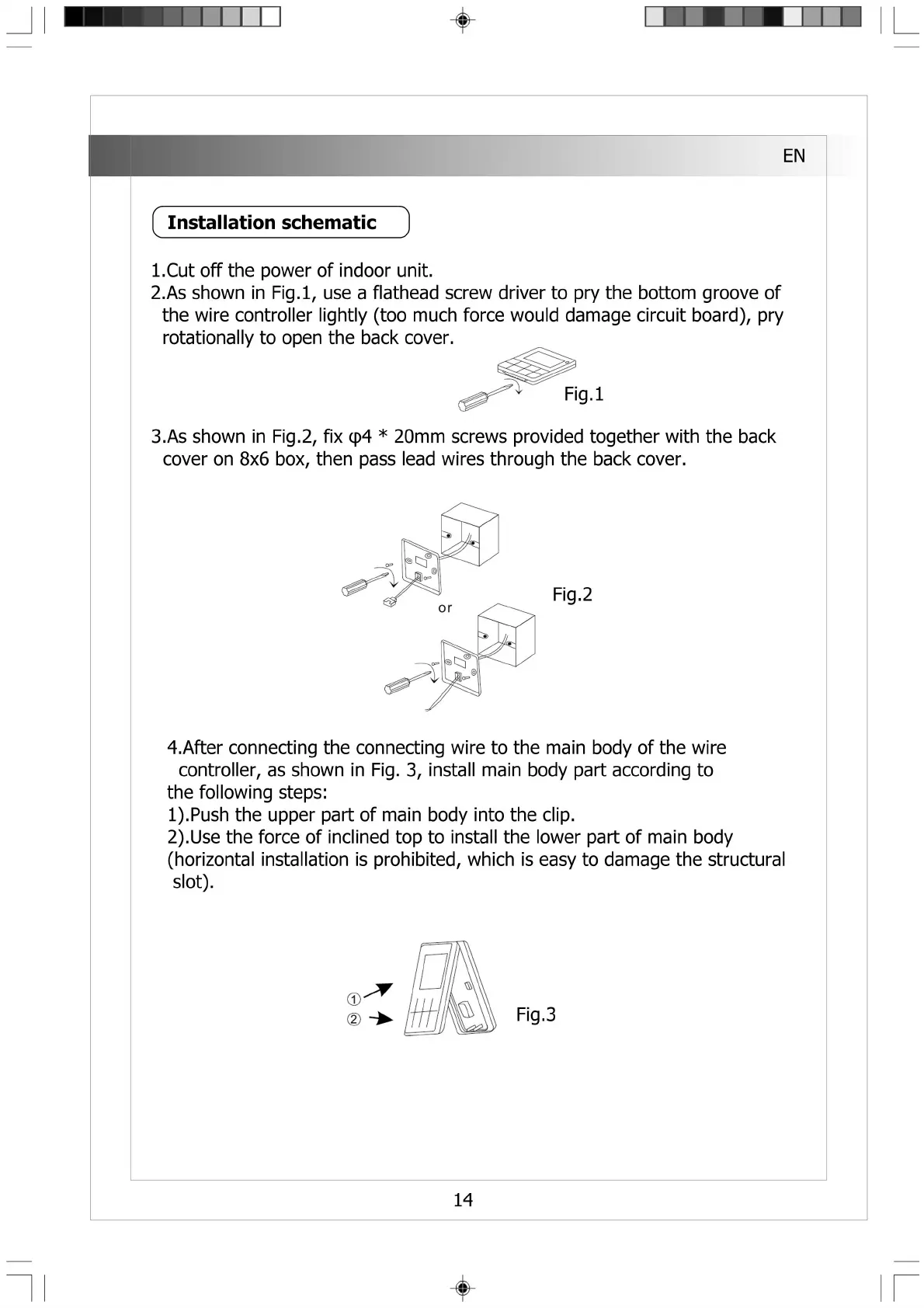

Installation schematic
1. Cut off the power of indoor unit.
2. As shown in Fig. 1, use a flathead screw driver to pry the bottom groove of
the wire controller lightly (too much force would damage circuit board), pry
rotationaIly to open the back cover.
3.As shown in Fig.2, fix (p4 * 20mm screws provided together with the back
cover on 8x6 box, then pass lead wires through the back cover.
4.After connecting the connecting wire to the main body of the wire
controller, as shown in Fig. 3, install main body part according to
the following steps:
1) ,Push the upper part of main body into the clip.
2) .Use the force of inclined top to install the lower part of main body
(horizontal installation is prohibited, which is easy to damage the structural
slot).
14
