Avantco MX30 - Change Speed Axle

User Manual
www.AvantcoEquipment.com 9

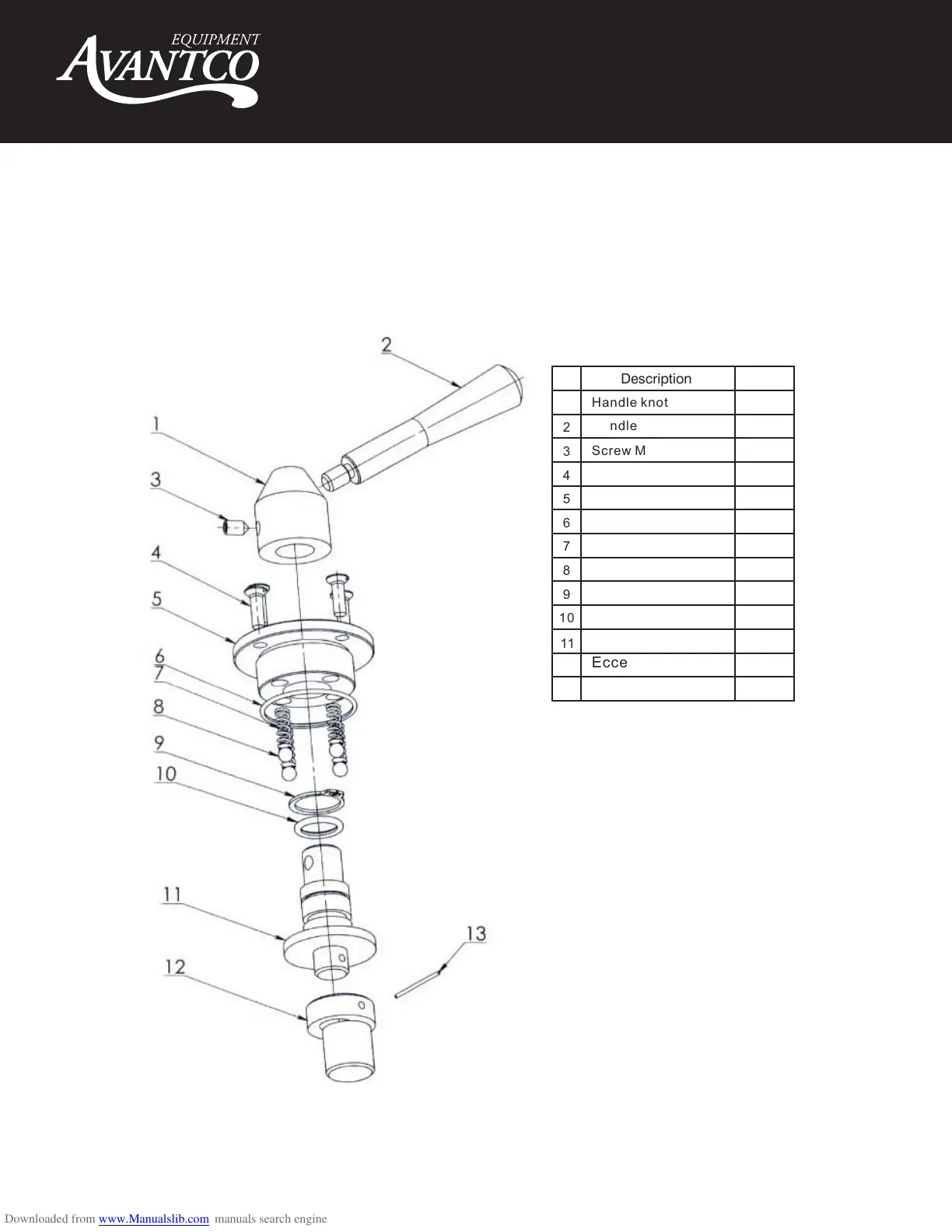

CHANGE SPEED AXLE
Figure 4
10
FIGURE 6 Change speed axle
3
2
3
4
5
6
7
8
9
10
11
Handleknot
Eccentricityknot
Speedblock
Oring36.5*1.8
Spring
Stopring20*1.2
Oring15*2.65
1
1
4
4
1
1
1
4
1
1
1
1
Qty
Descviption
Pin3*25
1
1
12
13
Handle
ScrewM6*10
Steelball
Changespeedaxle
ScrewM5*16
Before using, please check power supply if it match
your machine and be sure ground wire is eliable.
Before testing, please take mixing device off first, in
order to avoid damage machine which is match mo-
ving direction. It's necessary to change the three-ph-
ase machine if the moving direction is not match wi-
th arrow.
Mixing: according to the different mixing-material.
Choose the different mixing devices and speed.
A
B
C
OPERATION INSTRUCTION
For changing the speed: Please stop machine first
before change speed in order to aviod damage gear
box.
OFF
A: Be suitable for mix and stir butter, eggs, and work wi-
th in high speed, working time is less than 15 minutes.
B. Be suitable for mix and stir stuffing and raw material,
and work in middle speed, working time is less than 20
minutes.
C: middle position is suitable for mixing dough,
working time is less than 30 minutes.
Flour wat-
er quantity is 40%-50%.
