1

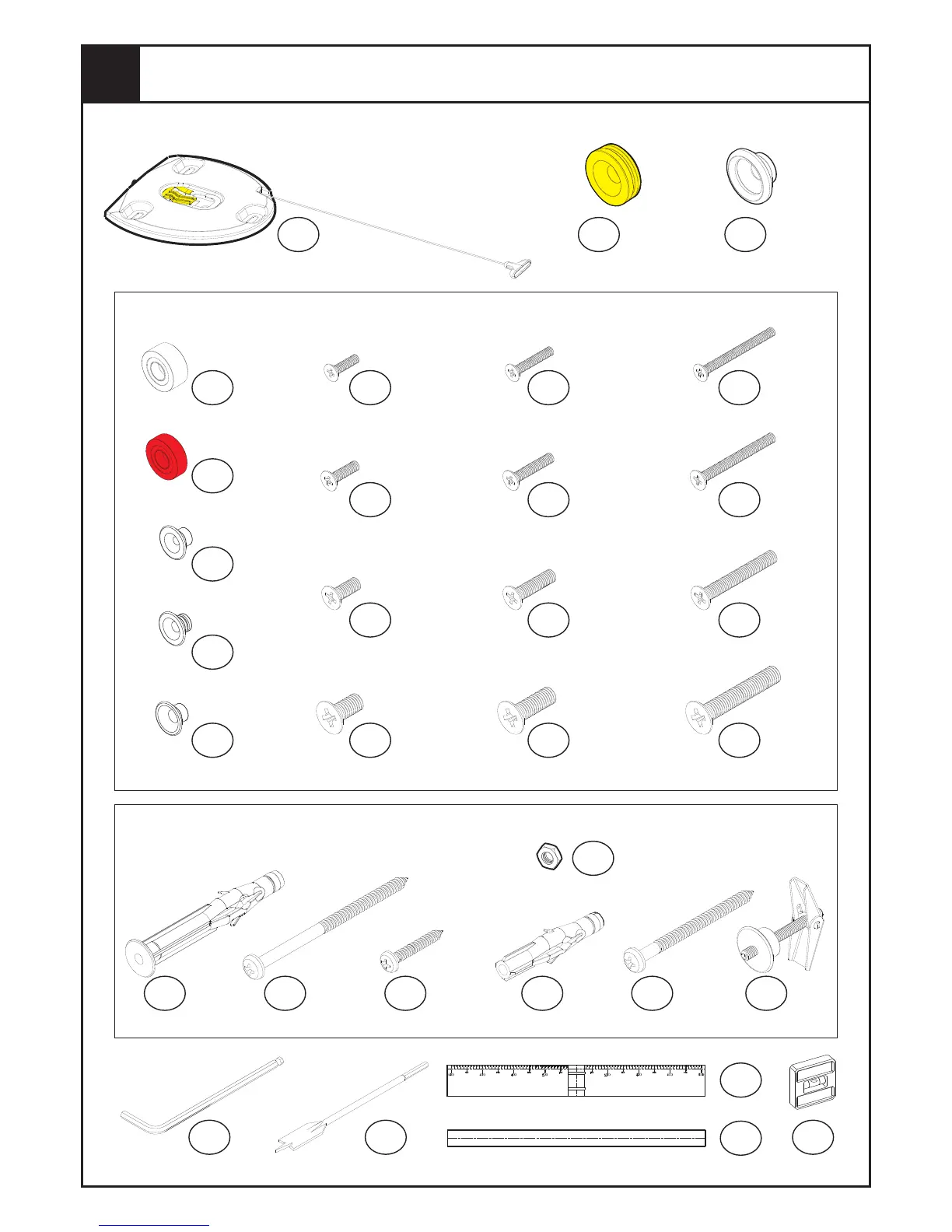

Boxed Parts
A - x2
Wall Bracket
B - x2
Hanger (Yellow)
C - x2
Stand-off
Template
M4 45mmM4 25mm
F1 - x4
M4 16mm
E1 - x4
M4 Adaptor
You will not need all these parts, so expect there to be some left over depending upon the
specification of your TV.
TV Fixings: Parts go on the back of the TV (specification of your TV will determine which
ones you require - see section 11).
F2 - x4 F3 - x4
M5 45mmM5 25mm
F4 - x4
M5 16mm
E2 - x4
M5 Adaptor
F5 - x4 F6 - x4
M6 45mmM6 25mm
F7 - x4
M6 16mm
E3 - x4
M6 Adaptor
F8 - x4 F9 - x4
M8 45mmM8 25mm
F10 - x4
M8 16mm
D1 - x12
Spacer
F11 - x4 F12 - x4
Wall Fixings: Parts to attach to the wall (type of wall will determine which fixings you
require).
H - x6
Long Wall Plug
J - x6
Long Screw
K - x2
Metal Stud Screw
M - x6
Screw
No.14 x 105mm
No.14 x 70mm
L - x6
Wall Plug
I - x12
G - x6
Wall fixing
Included Tools
O
18mm Wood Drill
N
3mm Hex Key
P1
P2
Lock Nut
No.12 x 25mm
Spacer (Red)
D2 - x4
Q
Level
