Attaching the Rack Ears
The included rack ears can be installed on the front or the back of the Stage 64. The front of the rack is where all the I/O connectors are
located, and the back of the rack is where the power switches and associated AC connectors are located.
To attach the rack ears to Stage 64:
1 Locate the rack ears and the rack ear mounting screws, included in the Stage 64 box.
2 For forward mounting, do the following:
• Position one of the rack ears at the front of the rack, making sure it is oriented correctly for right-front or left-front location, as ap-
propriate.
• Insert nine rack ear screws with washers in the positions indicated in the figure below, and tighten to secure the rack ear to the rack.
• Repeat the same procedure to attach the other rack ear to the other side of the rack using the other nine screws.
3 For reverse mounting, do the following:
• Position one of the rack ears at the back of the unit, making sure it is oriented correctly for right-back or left-back location, as ap-
propriate.
• Insert the nine washers and rack ear screws in the positions indicated in the figure below, and tighten to secure the rack ear to the
rack.
• Repeat the same procedure to attach the other rack ear to the other side of the rack using the other nine screws.

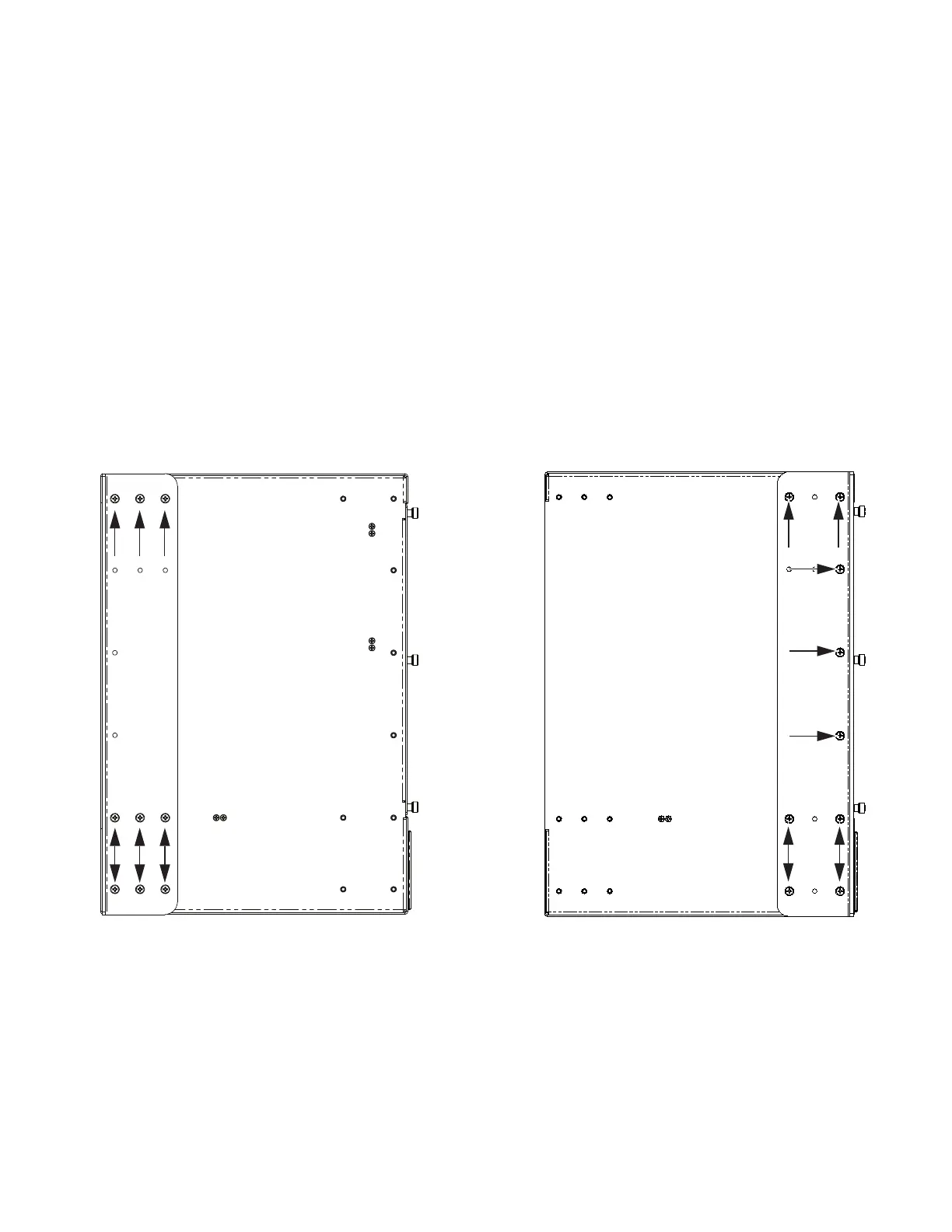

Rack ears attached to the front of Stage 64 (shown at left) and to the back (shown at right)
