AVM Fritz!Box 7490 Configuration Guide

!
Router!Configuration!Guide!
!
12

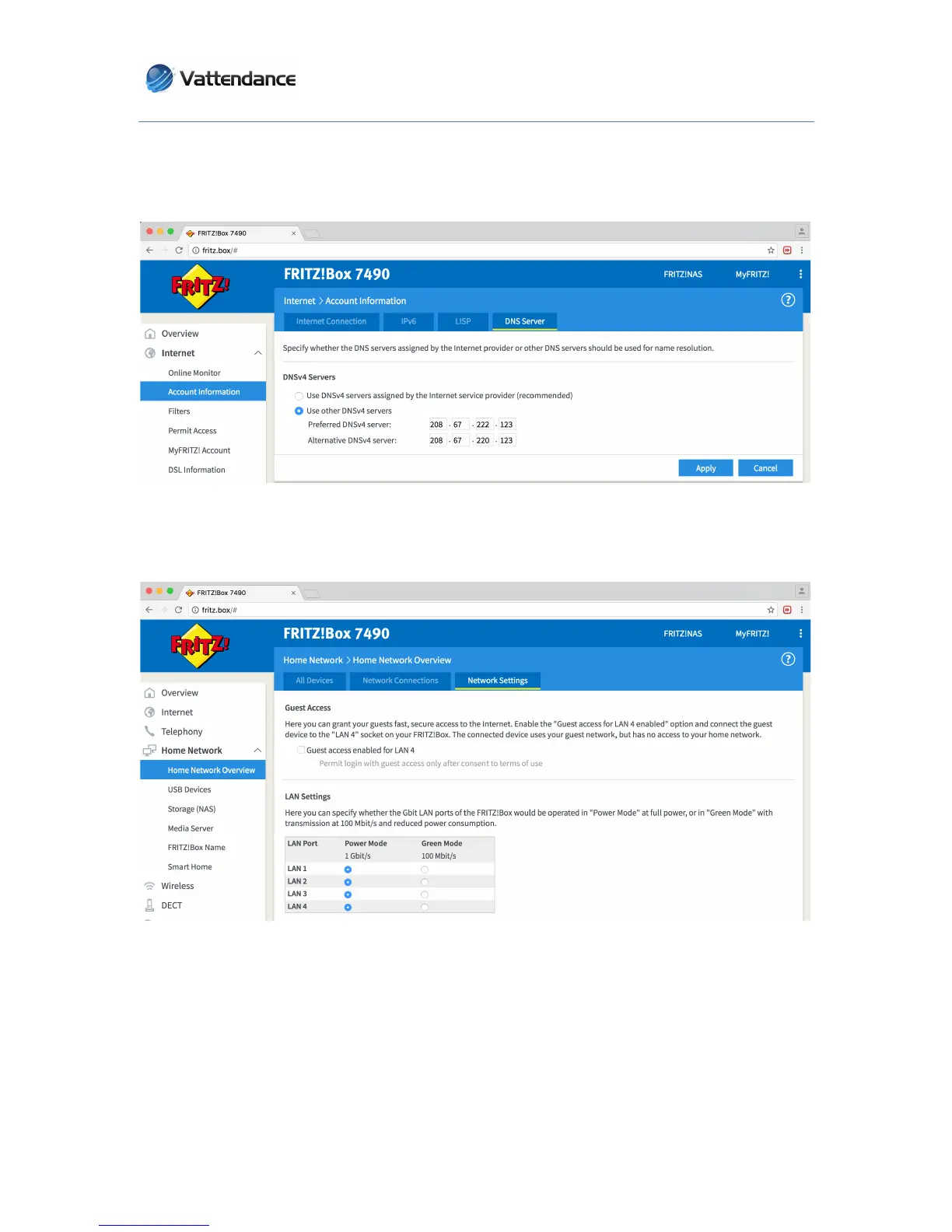

22 On$the$left$hand$menu$select$“Internet”$then$“Account$
Informa tio n ” .$T h e n $se le c t$th e $“ D N S $Se r v e r” $T A B .$C o n fig u r e$
this$page$as$show n$and$click$“Apply”.$
!
23 On$the$left$hand$menu$select$“Home$Network”$then$click$the$
“Network$Settings”$TAB.$Configure$page$as$shown$below.$
!
!
24 On$the$same$page$scroll$down$and$configure$the$time$server.$
In$New$Z e a lan d ,$e n te r $“0 . nz .p o o l.n t p .o rg ” .$In $A u s tr alia $enter$
“0.au.pool.ntp.org”.$Click$“Apply”$when$done.$
!

AVM Fritz!Box 7490 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
USB version	3.2 Gen 1 (3.1 Gen 1)
Rack mounting	No
Frequency range	2.4 - 5 GHz
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	2
WLAN data transfer rates supported	450, 1300 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Security algorithms	WPA2, WPS
Power consumption (typical)	9.3 W
Product color	Red, Silver
Cables included	DC, LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	175 mm
Width	245 mm
Height	55 mm
Weight	- g
