Home Network Menu: Settings and Features

Overview

Your home network consists of the FRITZ!Box and all of the devices

connected to it. The FRITZ!Box is the hub in your home network. In the

“Home Network” menu you can configure all of the settings relevant

for your home network.

A graphic overview of your home network with all connected devices is

presented in the “Home Network / Mesh” menu.

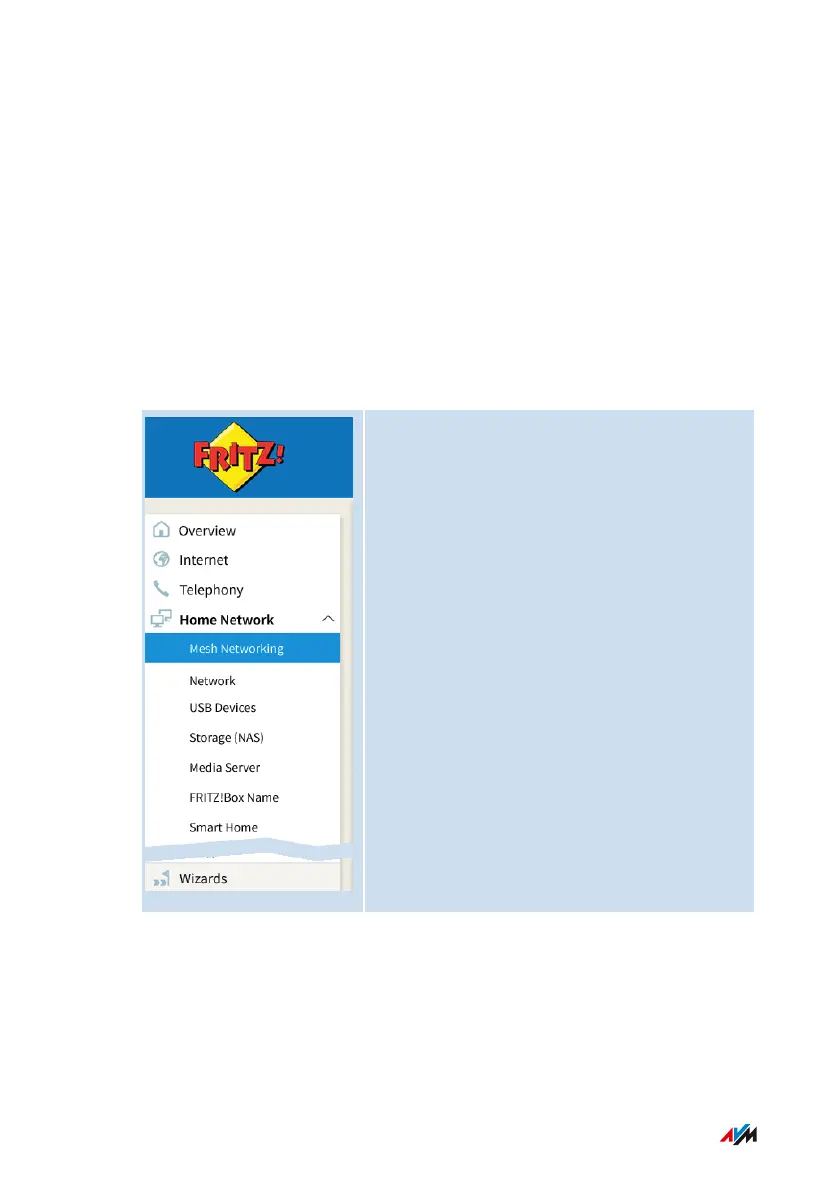

“Home Network” menu

Description of the Submenus

The online help of the user interface includes a detailed description of

the submenus.

User Interface: Home Network Menu

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

130FRITZ!Box 7530
