2
DELTA
A031.023.00

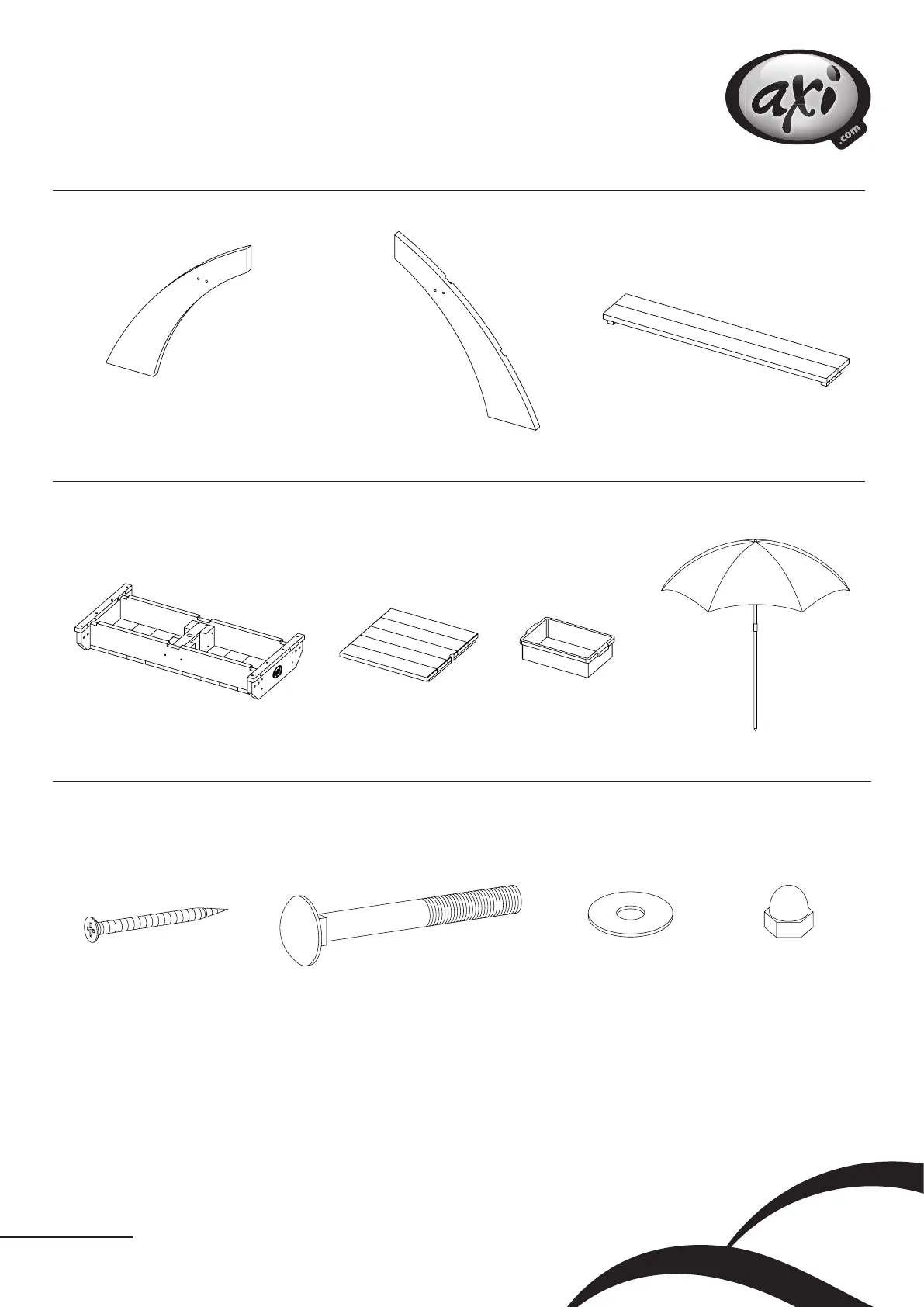

1. COMPONENTS
 1 2 3
4 7
2x
2x
2x
1x 1x 2x 2x
5 6
3,5 x 45 M8 x 65 M8 M8
A B C D
16x 8x 8x 8x
