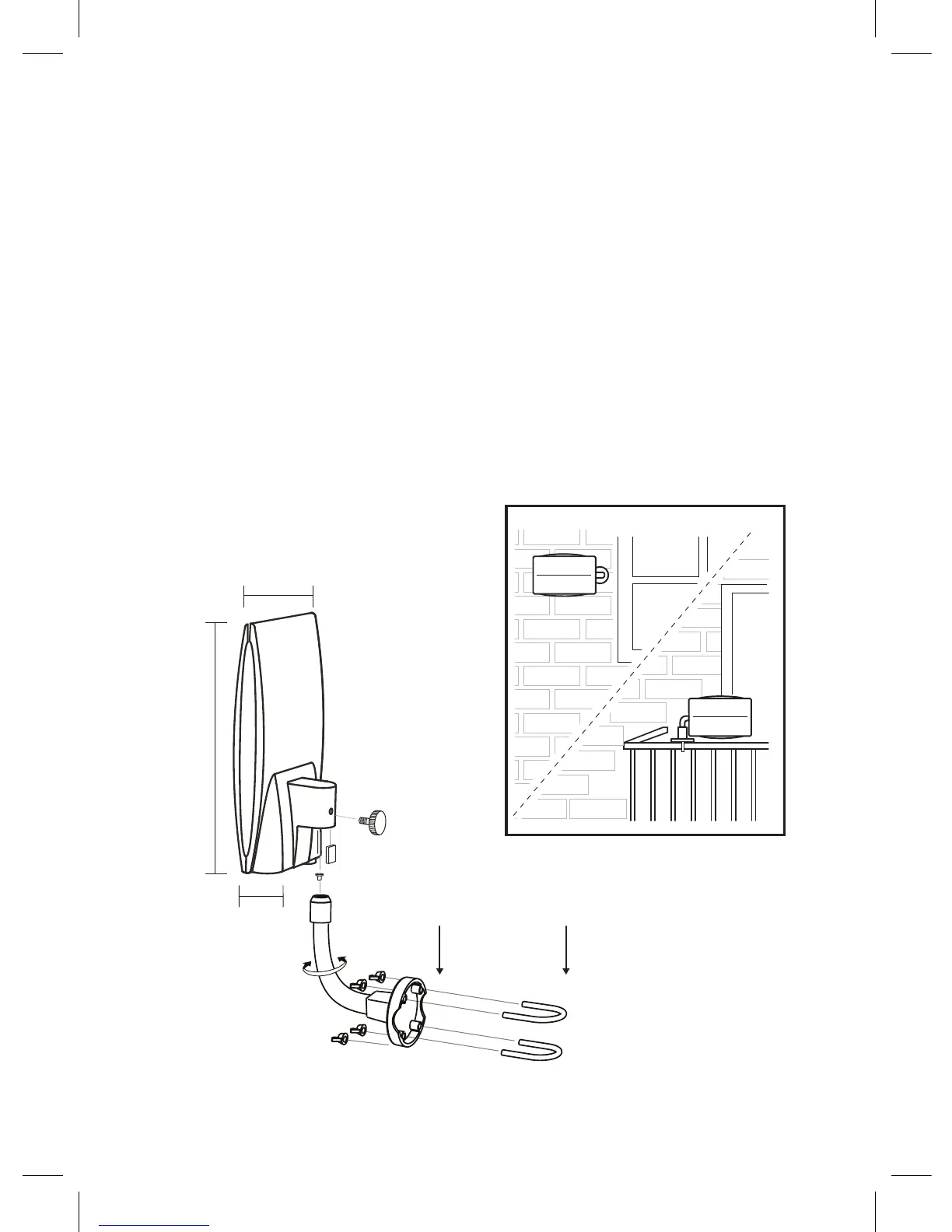

AXIL AN 0264 E - Installation; Outdoor Mounting

To Next Page

To Previous Page

11,2 cm

6,5 cm

19,5 cm

Sujección en pared

Fastened to wall

Fixé dans le mur

Subjeçao em parede

Sujección en barandilla

Fastened to support

Fixé dans le barre d’appui

Subjeçao em balaustre

EXTERIOR / OUTDOOR / EXTÉRIEUR

Fastened to wall Fastened to support

INSTALLATION

For the best reception, please install the antenna in the best place.

Check the following conditions:

1. Keep away from big power consumption devices, such as air conditioner, elevator,

hair dryer, microwave oven, etc...

2. For indoor mounting, install it close to a window, pointed to broadcaster (if it is

possible)

3 In case of low level reception use outdoor mounting (with free view to the

broadcaster if it is possible)

4 Install it as high as possible: In case of digital terrestrial reception, if there is some

interception between antenna and transmission tower, it will cause the signal loss

temporary. So if the antenna is installed as high as possible, those interceptions will

be reduced.

OUTDOOR MOUNTING
