axing BZU 10-00 Operating Instructions

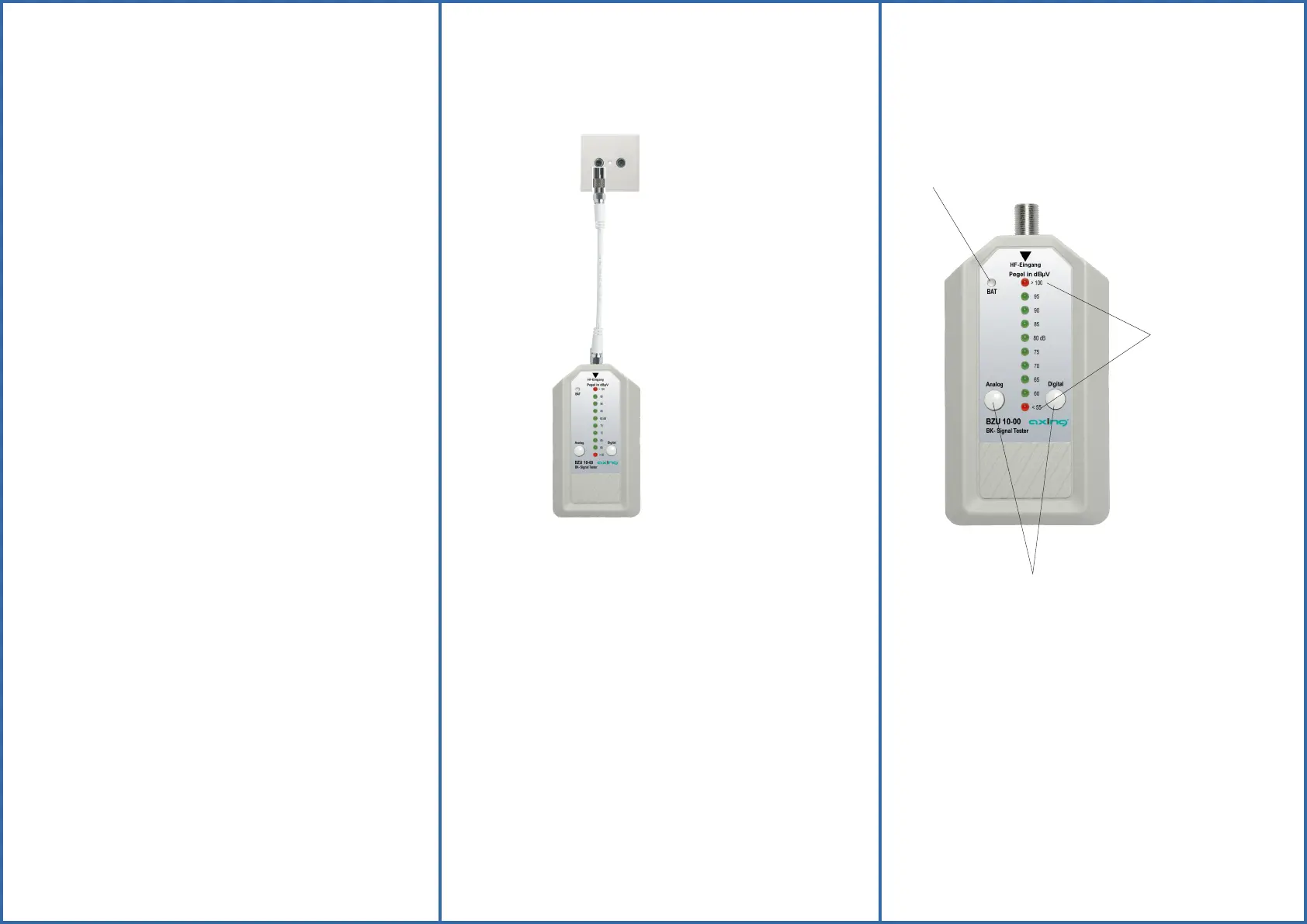

Application example Display and operation elements
LED for battery
Green full battery
Yellow low battery
red nearly empty battery
CFA 2-00
MAK 30-80
BZU 10-00
LEDs for level indication
1 x red >100 dBµV
8 x green 60-95 dBµV
1 x red <55 dBµV
Activates the level indication
for analogue or digital signals.
Field of application:
The BZU 10-00 is an electronic level-indicator for analogue and digital CATV
signals. If the device is used for other purposes, no warranty is given!
Delivery:
BZU 10-00: Signal tester
MAK 30-80: Patch cable, F/F, 30 cm
CFA 2-00: Adapter IEC female/ F-female
Product discription:
The signal tester BZU 10-00 is suitable for easy checking, level control and
quick troubleshooting. Examples of measuring points include antenna sockets,
service area interfaces, antenna cables, HF outputs of DVD recorders or PC TV
cards. It can measure analogue and digital channels in the frequency range of
the KDG, KBW and Unity Media cable networks. It cannot measure DVB-T
signals. They can be measured by the TZU 22-01 from the AXING product
range.
The BZU 10-00 is not a replacement for a measuring instrument and
nor does it determine sloping positions.
Operation:
The signal tester is connected, for example, to the TV output of an antenna
socket using the cable MAK 30-80 and the adapter CFA 2-00.
Depending on the signal, the level is displayed on the LEDs of the BZU 10-00
by pressing the "Analog" or "Digital" button. The level in dBµV can be read
directly adjacent to the LED. Its resolution is 5 dBµV. If, for example, 70 is
displayed on the LED, the measured value is between 67.5dBµV and 72.5 dBµV
Upon releasing the key, the tester is switched off again.
