Option 2
1.

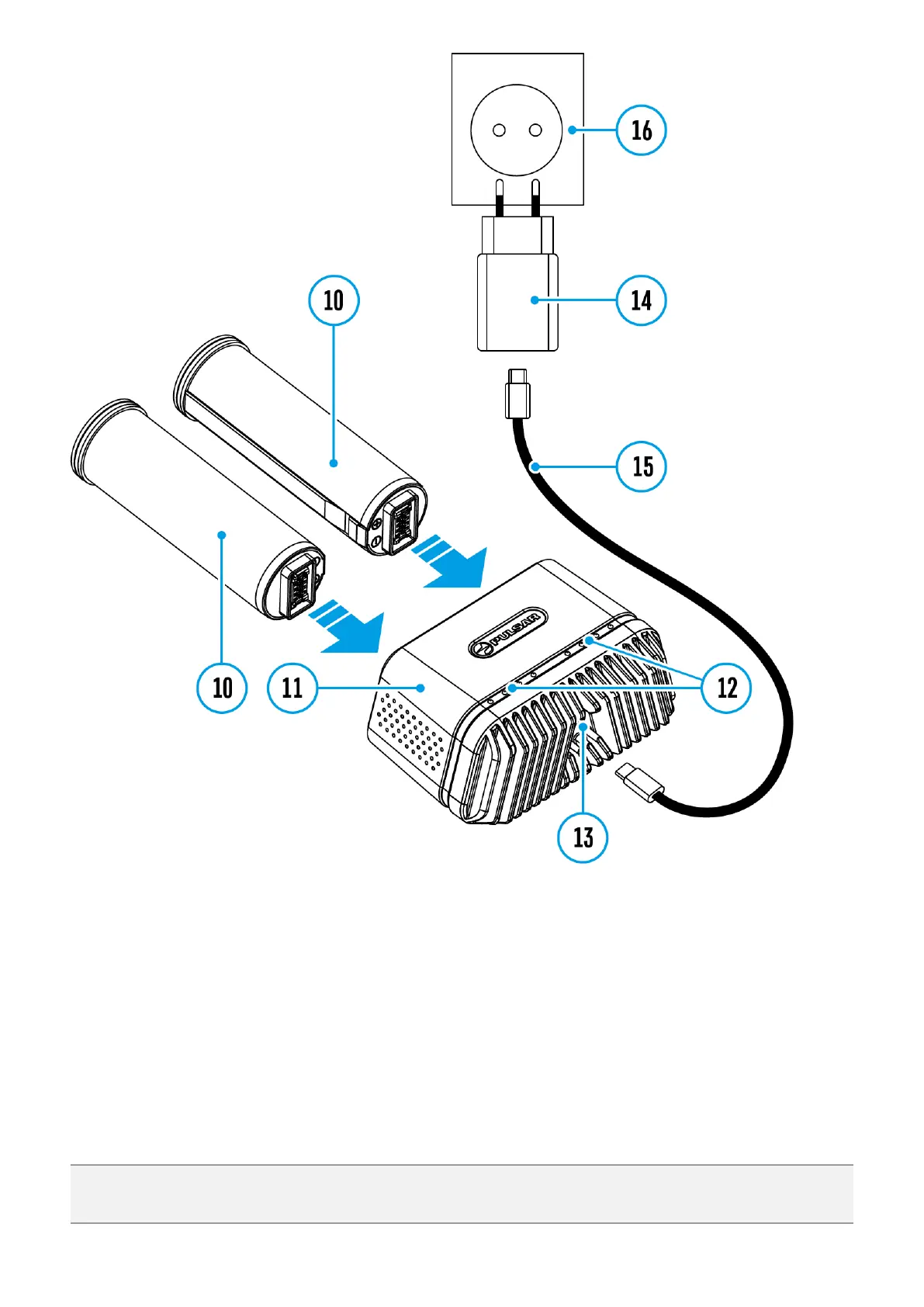

Insert the APS 5 battery (10) along the guide into the APS 5 charger (11) slot as far as it
will go. The APS charger is supplied with your device and sold separately.
2.
Connect the plug of the USB Type-C cable (15) to the USB Type-C connector of the
Power Adapter(14).
3.
Plug the Power Adapter (14) into a 100-240 V socket (16).
4.
Connect the other end of the USB Type-C cable (15) to the USB Type-C connector (13)
of the charger.
5.
LED indicators (12) will display the battery charge level (see Table).
Note:Two batteries can be charged at the same time, a second slot is provided for it.
LED indication (12) in the battery
charging mode
Battery Level
