Page 18 AXIS P13 Network Camera Series Installation Guide

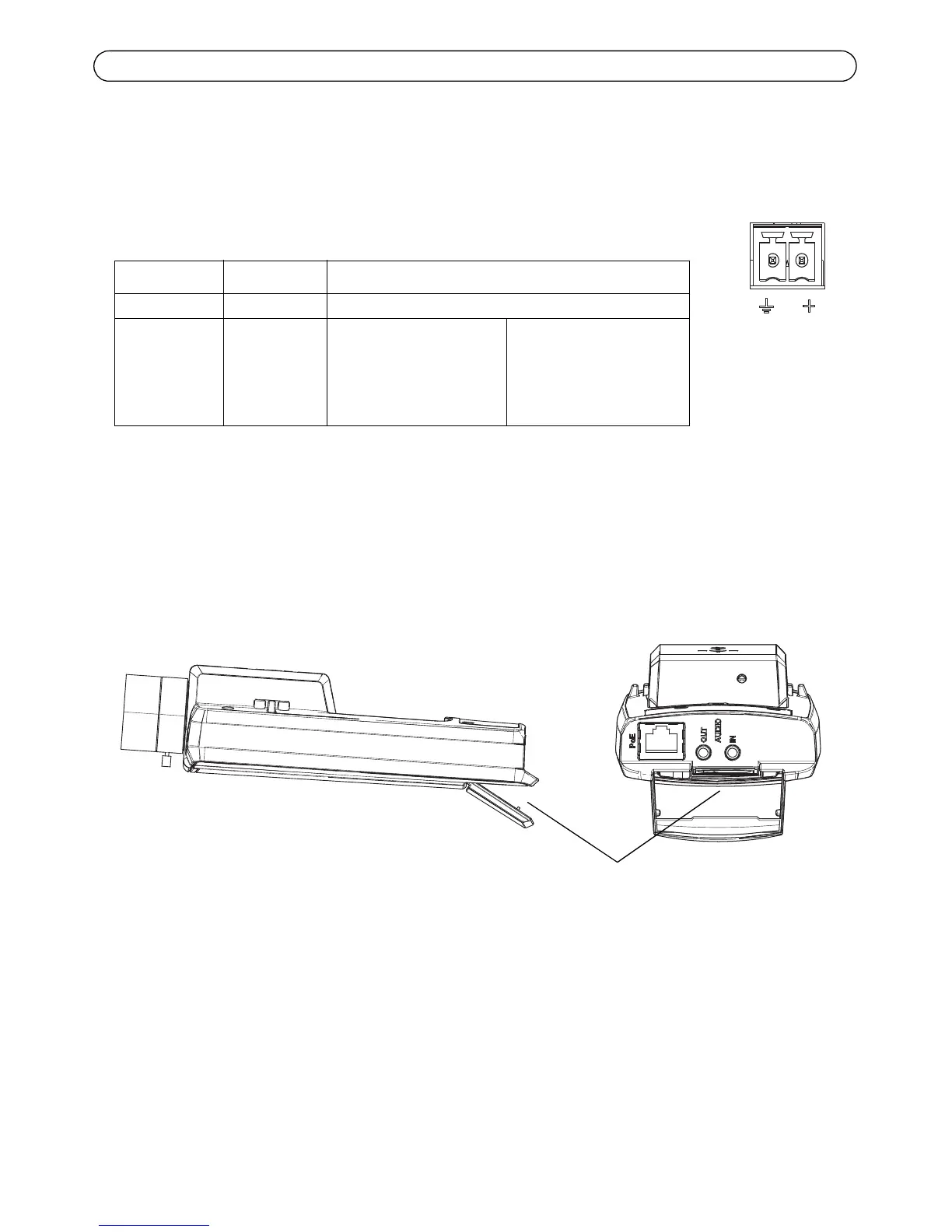

Unit connectors
Network connector - RJ-45 Ethernet connector. Supports Power over Ethernet. Using shielded
cables is recommended.
Power connector - 2-pin connector block used for power input.
Audio in - 3.5 mm input for a mono microphone, or a line-in mono signal (left channel is used
from a stereo signal).
Audio out - Audio output (line level) that can be connected to a public address (PA) system or an
active speaker with a built-in amplifier. A pair of headphones can also be attached. A stereo
connector must be used for the audio out.
SDHC memory card slot - A standard or high capacity SD memory card can be used for local
recording with removable storage.
To insert an SD card, lift the SD card cover on the rear of the network camera, and carefully insert
the SD card into its slot.
To remove an SD card lift the cover and gently push the card in and release it. The SD card will back
out of the slot where it can then be removed.
Function Pin number Description
GND 1 Ground
DC Power 2 Power input 8-20 V DC AXIS P1311: max 2.8 W
AXIS P1343: max 6.4 W
AXIS P1344: max 6.4 W
AXIS P1346: max 9.6 W
AXIS P1347: max 9.0 W
